FUEL CELL STARTER PACK FCP101

KEY FEATURES:

– High power, large fuel cell

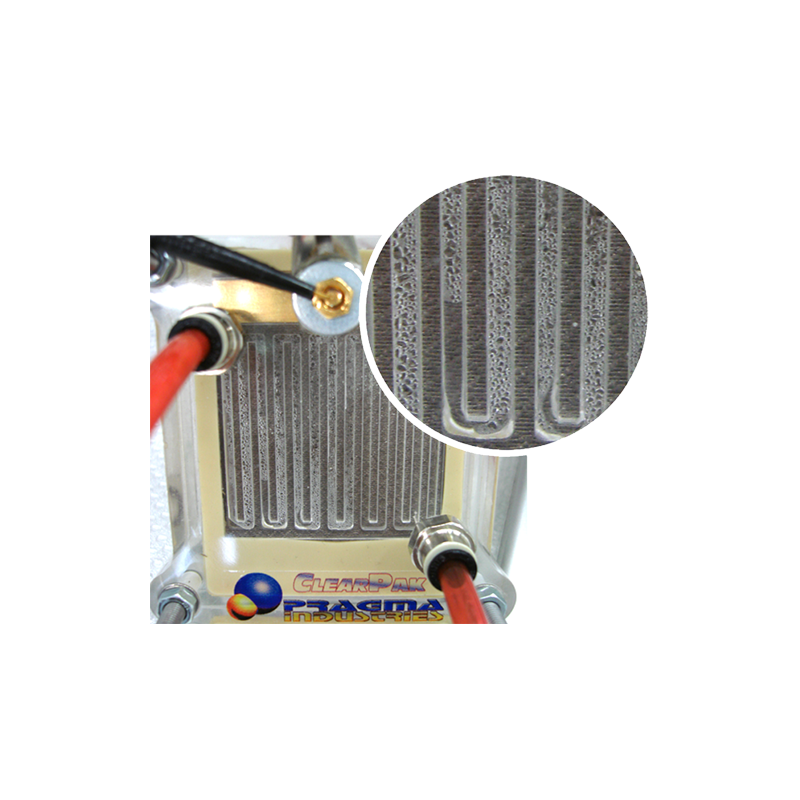

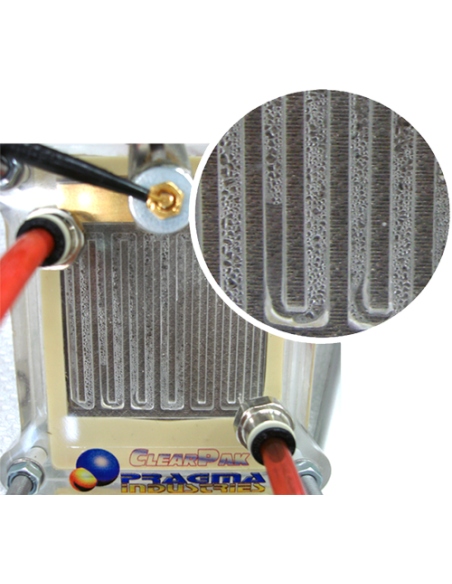

– See-through fuel cell to observe water by-product of reaction
– Sturdy design
– Perfect for practical demonstration of science behind fuel cells and hydrogen and initiation to electrochemistry
– Easy experiment setupRecommended for fuel cell initiation with hand-on learning, chemistry and electrochemistry, demonstration courses

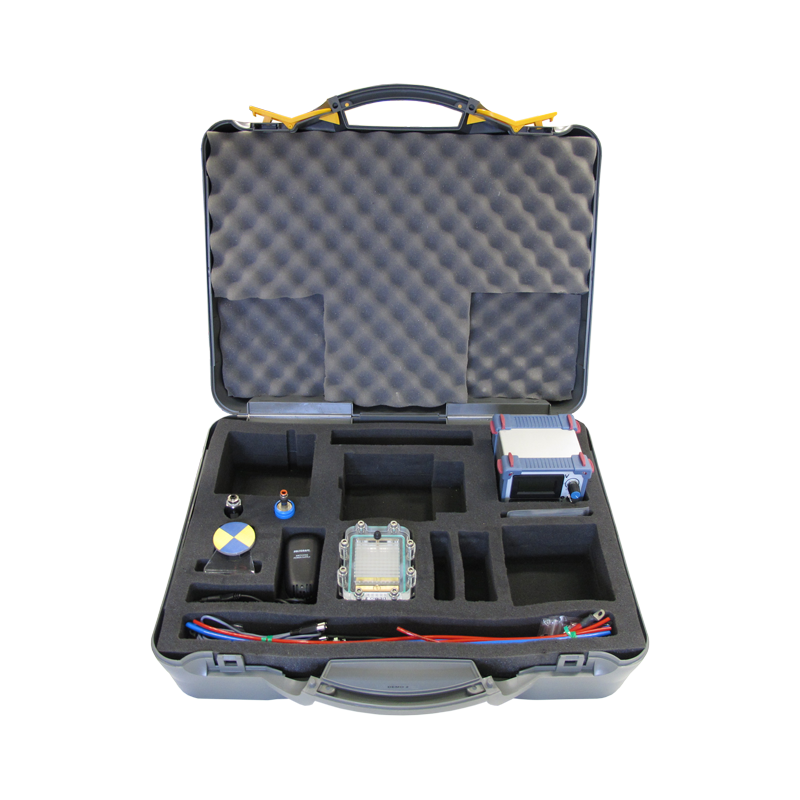

PACKAGE INCLUDES:

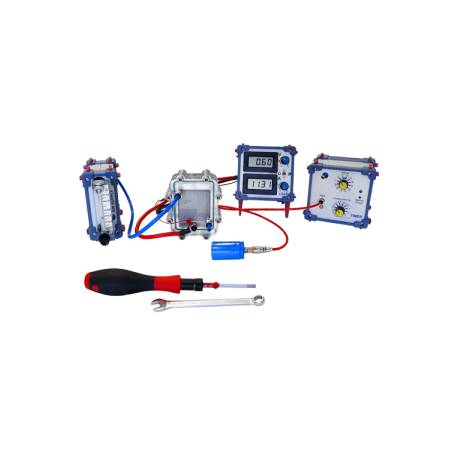

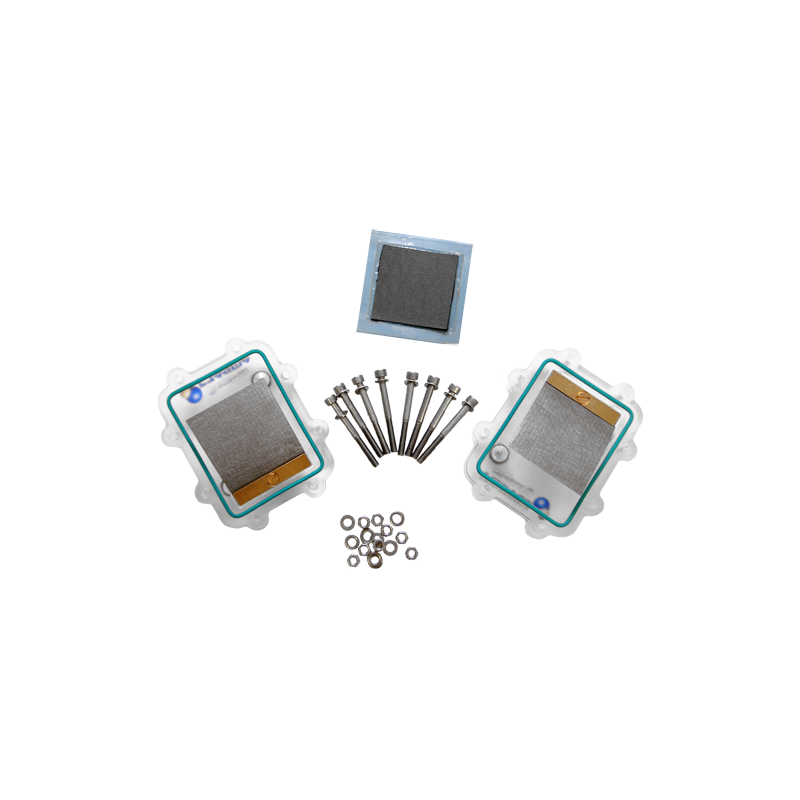

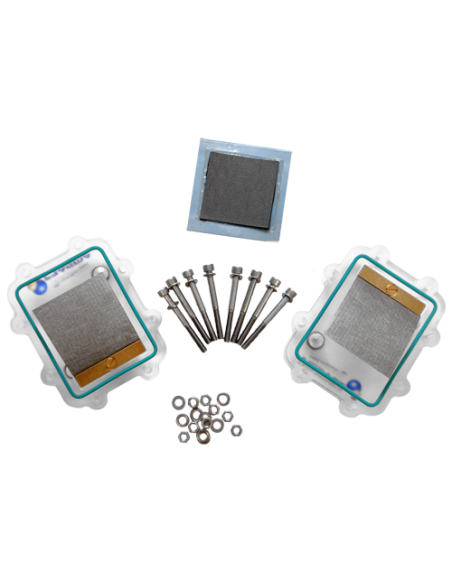

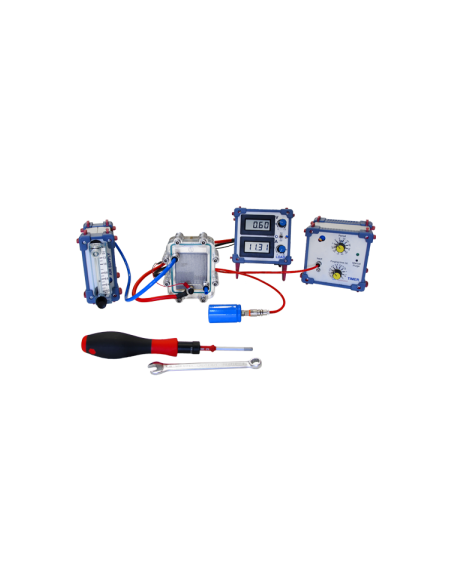

– Take apart air breathing fuel cell
– Fuel cell core
– Load box with current and voltage measurement
– Rechargeable hydrogen canister (solid storage)
– Manual purge valve
– Fan and electric motor
– Set of three resistances
– Cables and tubing

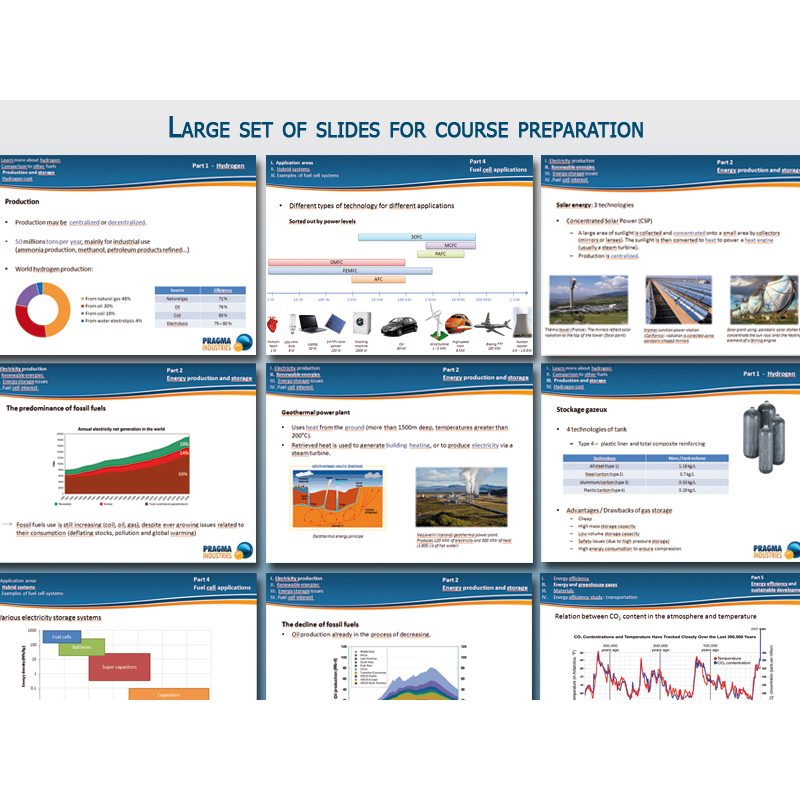

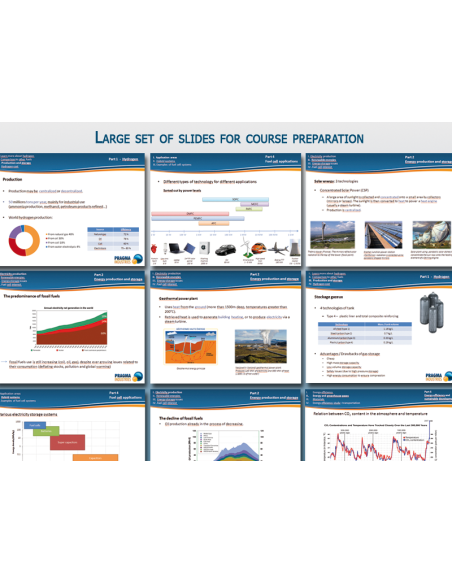

– Teaching material

EXPERIMENTS:

– Building a fuel cell and a fuel cell circuit

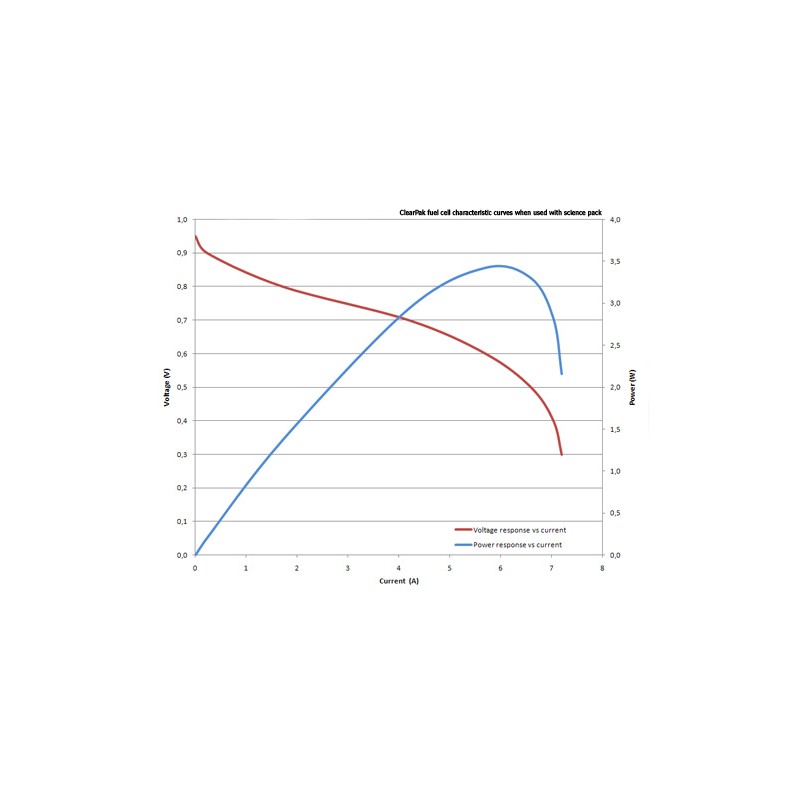

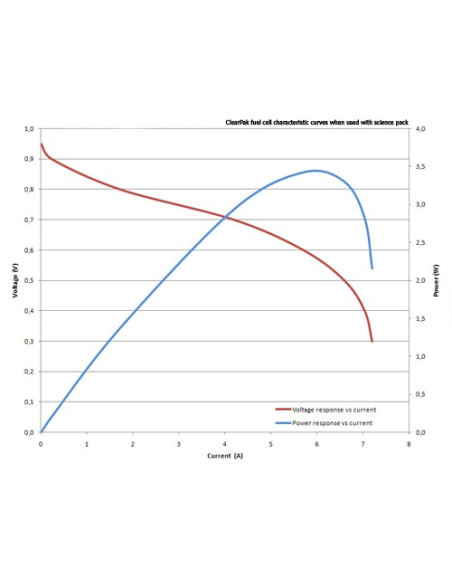

– Plotting characteristic curves at various operating conditions
– Understanding energy conversion and efficiency calculation
– Determining the effect of air convection on FC performances
– Measuring the effect of catalyst loading on FC performances
– Measuring the effect of FC resistance

TECHNICAL SPECIFICATIONS
