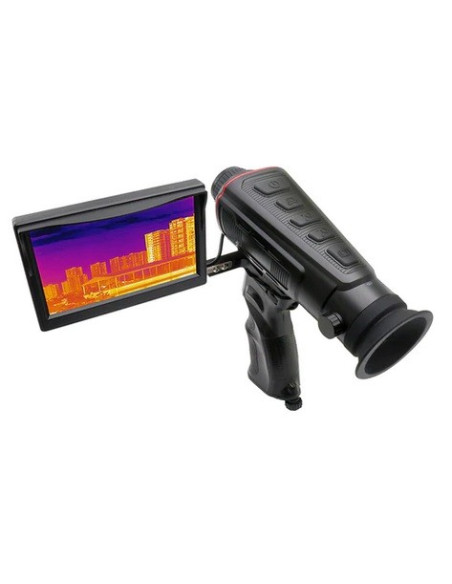

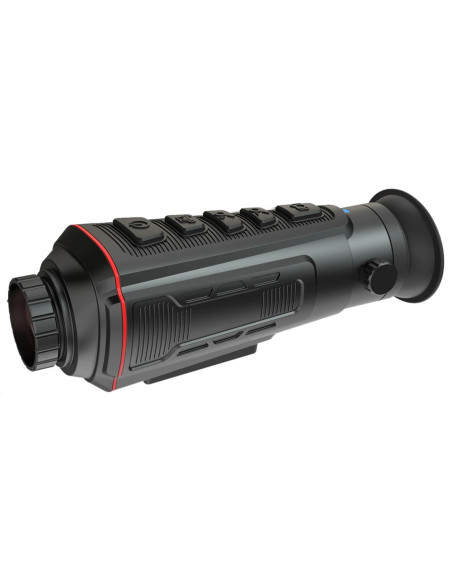

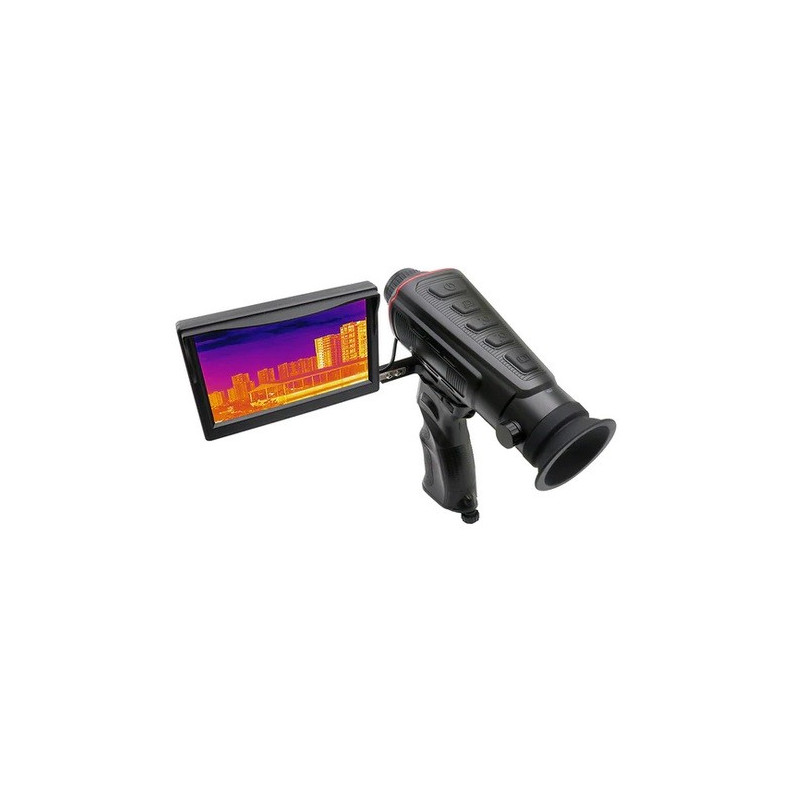

AO-HT-A4 Hunting thermal imager (35mm Lens)




Outdoor Night Vision Telescope with Multifunction Infrared Thermal Imaging

The AO-HT-03 model is "DISCONTINUED"

1 435,00 €

Add to wishlist

Type of Instrument Infrared camera
---------- INDUSTRY ------------ Night Vision Device

This product is an Outdoor Thermographic Telescope device that adopts advance non-cooled focal plane infrared detector and quality optical lenses as the core.
With the characteristics of convenient and quick operating system, small appearance design, expansion parts with perfect function, long duration of use, it is sturdy and durable and applicable to all types of environments and provides an ideal temperature measurement tool featuring “clear imaging, precise measurement, simple operation and easy to carry”.
This is the best selection for onsite detection, preventive maintenance and other application sites.
The product may be used for outdoor animal observation, search and rescue, law enforcement detection for policemen, night patrol, outdoor activities and personal security, etc.
The product is provided with the photographing function.

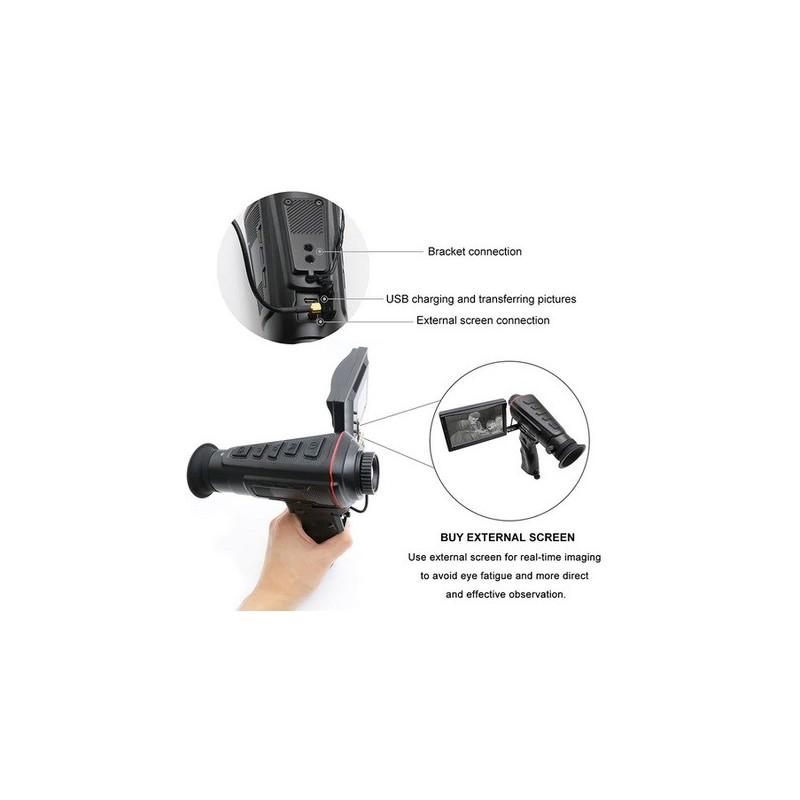

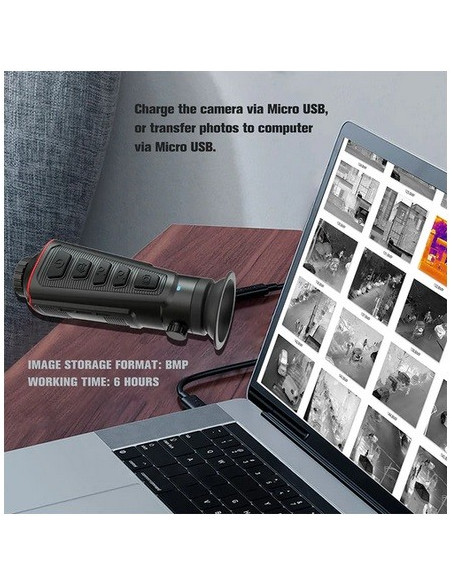

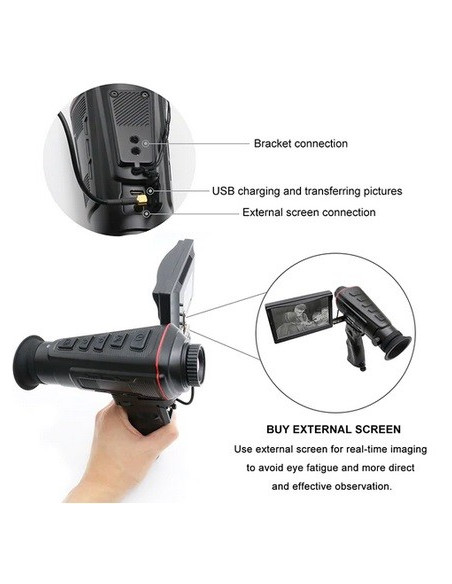

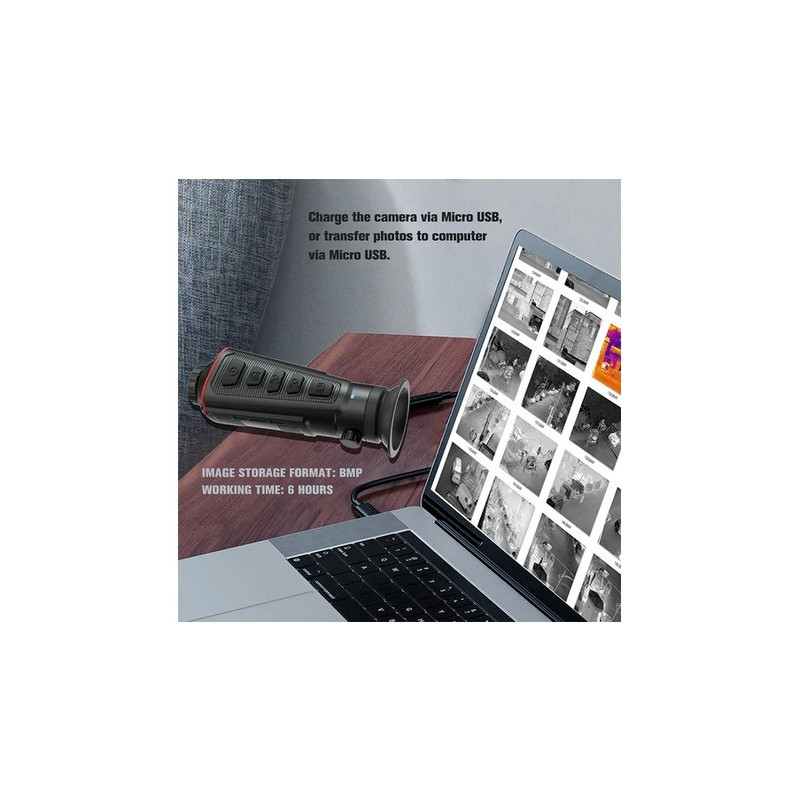

The photos may be browsed by connecting with a computer through USB to make it convenient for observation of many persons at the same time, which creates possibility for application in more occasions.

Probe type: Uncooled focal plane
Resolution ratio: 384x288
Focal length: 35mm

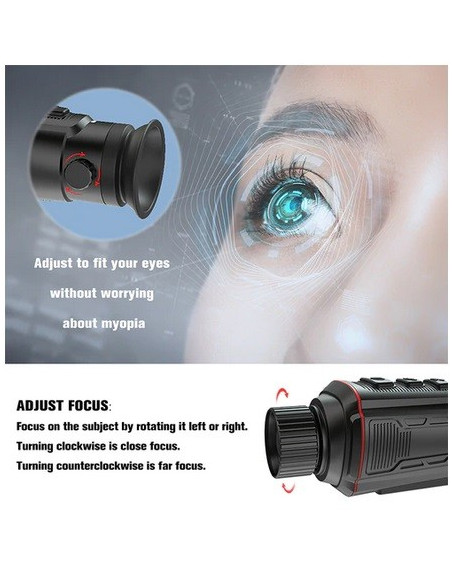

Eyepiece: Single eyepiece display (the dioptric compensation is adjustable)
Field angle: 10.7°x 8°;

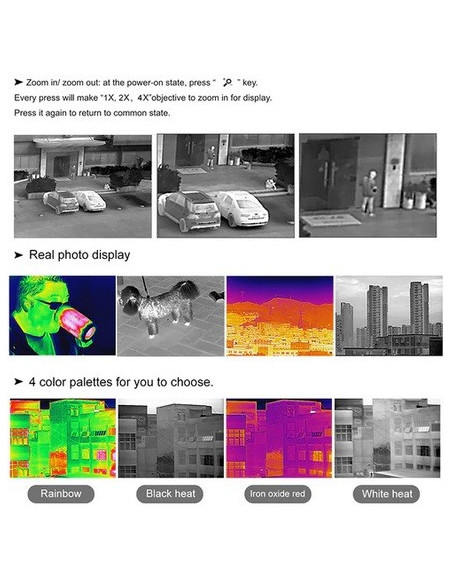

Digital zoom:  1X 2 X 4X
Wavelength coverage: 8μm-14μm
Frame rate of thermal images: 50Hz
Color palette:Rainbow/red heat/black heat
Focusing mode:Adjustable
Image storage:BMP
Battery:Built-in rechargeable batteries
Working time: 6 hours
Power off time: 5 minutes (Automatic power-off time)

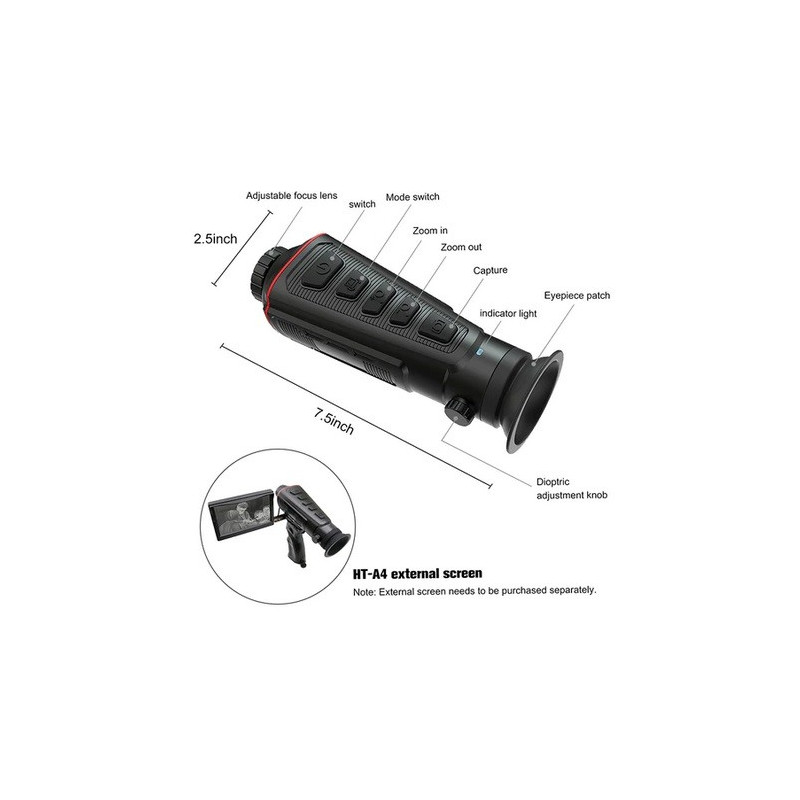

Product size(length × height):186x68 mm(with eye patch)
Work temperature: 0℃- 45℃
Storage temperature: -20℃- 60℃
