AO-100-01 Wind Speed Sensor (Anemometer) with 1.5m cable

AO-100-01

AO-Electronics

New

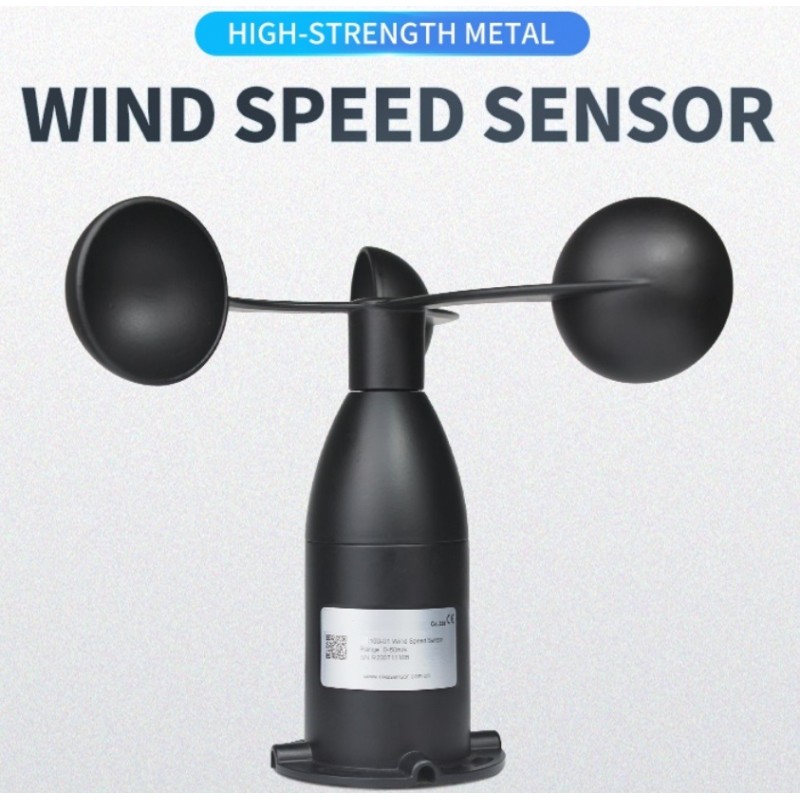

The AO-100-01 Metal Body Wind Speed Sensor is specifically designed to accurately and reliably measure wind speed in harsh environmental conditions.
See Optional Controller / Display AO-150-01

Volume discounts

Quantity Price
You Save
%
1+ 185,00 € 0%
2+ 172,05 € 7%
3+ 166,50 € 10%
6+ 157,25 € 15%
11+ 148,00 € 20%

185,00 €

Add to wishlist

The Sensor measures: Air Speed m/sec
Output Signal: Pulse/4-20mA/RS485/0-5/0-10/1-5V
Cable Length: 1.5 meters
Power Supply: 5V/12V/24VDC
Sensor for use in: Outdoor

Built-in Digital circuits are capable of strong RFI & EMI resistance and automatic temperature compensation. Voltage and current signals output by electromagnetic induction, generate a linear relation between acquired values and horizontal wind speed.

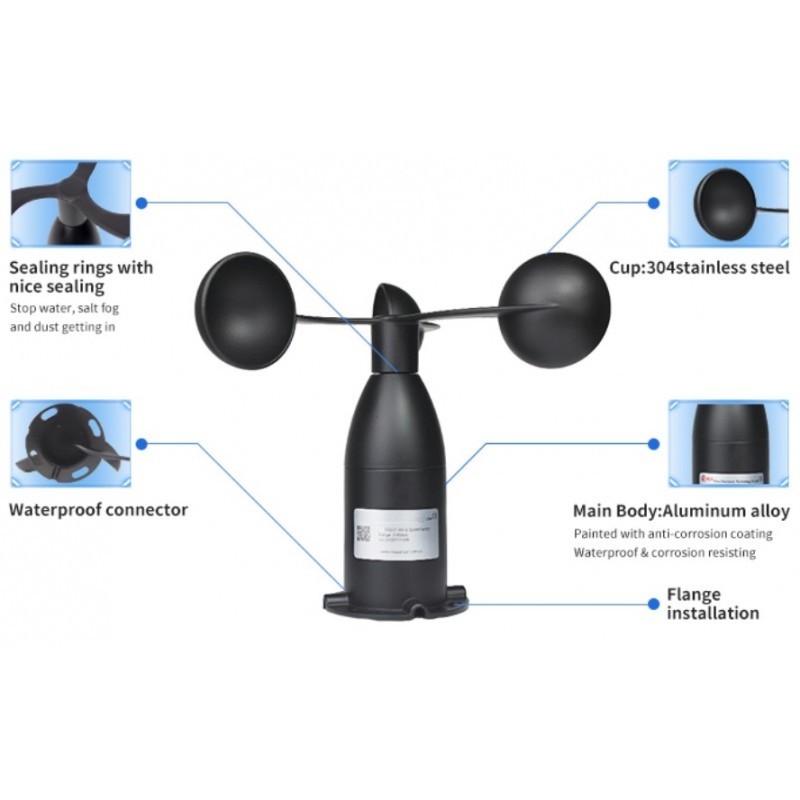

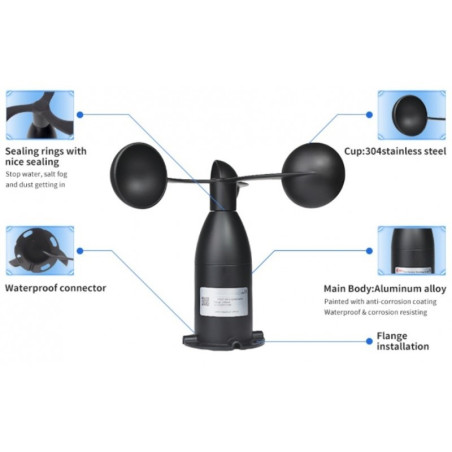

The sensor mainly includes high-strength aluminum-alloy housing shell, 304SS wind cup, PCB board painted with anti-corrosion coating, and features water proof and corrosion resistance. The sealing rings are used to wrap the rotating part, with the excellent sealing function of water proof, salt fog and dust immersing. AO-100-01 Wind speed sensor has good performance in harsh environment.

FEATURES

   * Low starting threshold
   * Massive all-metal construction
   * Strong corrosion resistant ability
   * Wide range, good stability
   * Various output signals optional
   * Easy Installation

APPLICATIONS

   * Weather monitoring stations
   * Safety monitoring of high altitude equipment
   * Ports
   * Solar and wind power generation
   * Mobile weather monitoring vehicles
   * Marine vessels
   * Remote airports & helipads
   * Road & rail tunnels

OUTPUT CHARACTERISTICS

Pulses
Characteristic transfer function:
V = 0.667 * F (Range: 0-30m / s),
V = 1.333 * F (Range: 0-60m / s).
(where V = wind speed (m / s), F = output frequency (Hz))

Includes 1.5 meter cable.

CE Complies with applicable CE Directives.
