AO-RDET ECONOMIC RAIN DETECTOR WITH RAIN GAUGE

AO-RDET

AO-Electronics

New

AO-DET: The rain sensor electronics react to the electrical conductivity of the water to open / close devices such as blinds, skylights, etc. Includes RAIN-O-MATIC economic rain gauge with 1 reed relay pulse output.

Volume discounts

Quantity Price
You Save
%
1+ 125,00 € 0%
2+ 121,25 € 3%
3+ 118,75 € 5%
4+ 115,00 € 8%
5+ 112,50 € 10%

125,00 €

Add to wishlist

The Sensor measures: Rain/Snow/Hail/Sleet/Freezing
Output Signal: Pulses
Power Supply: 12V for the Detector

AO-RDET includes:

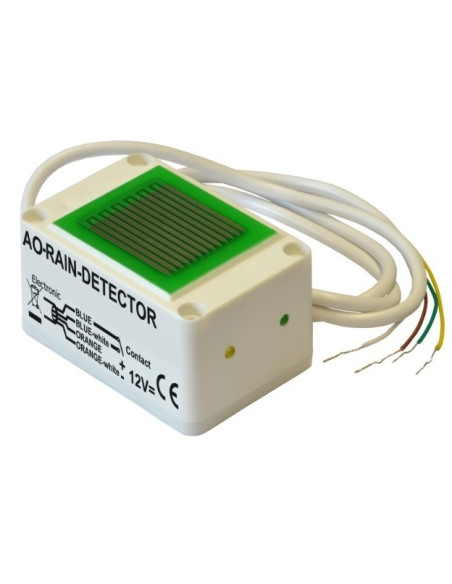

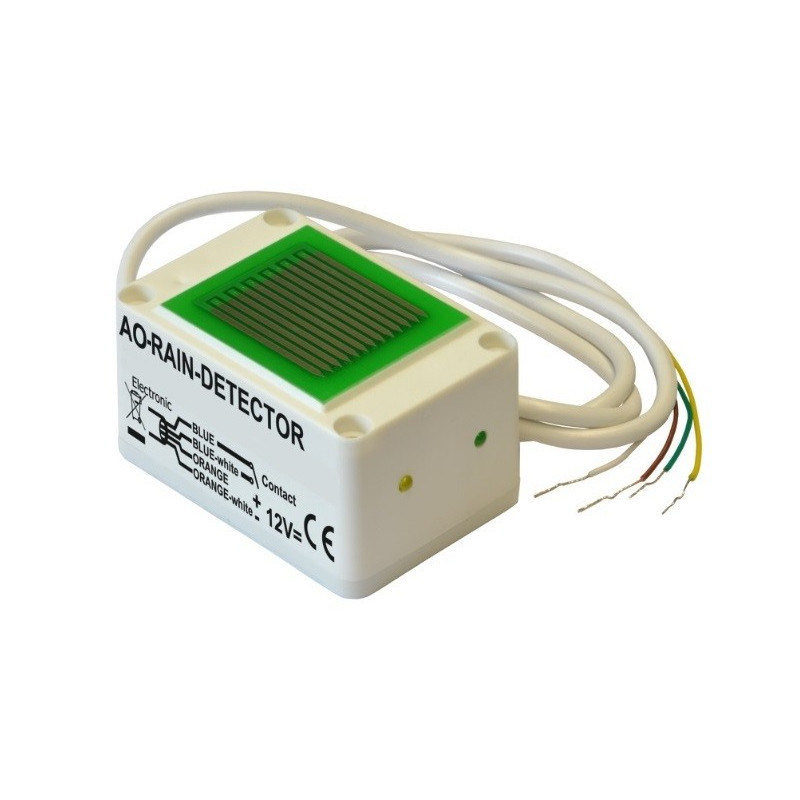

AO-DET: Rain Detector

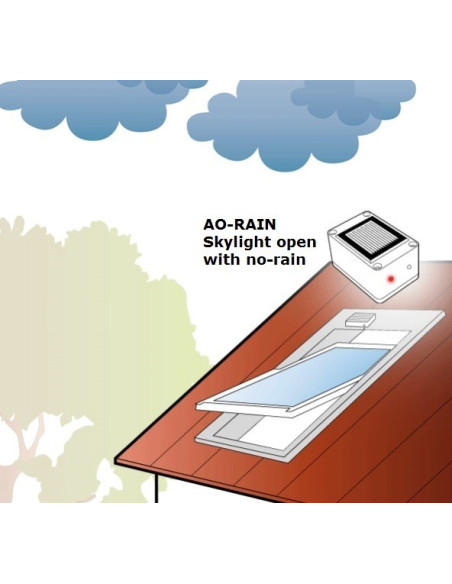

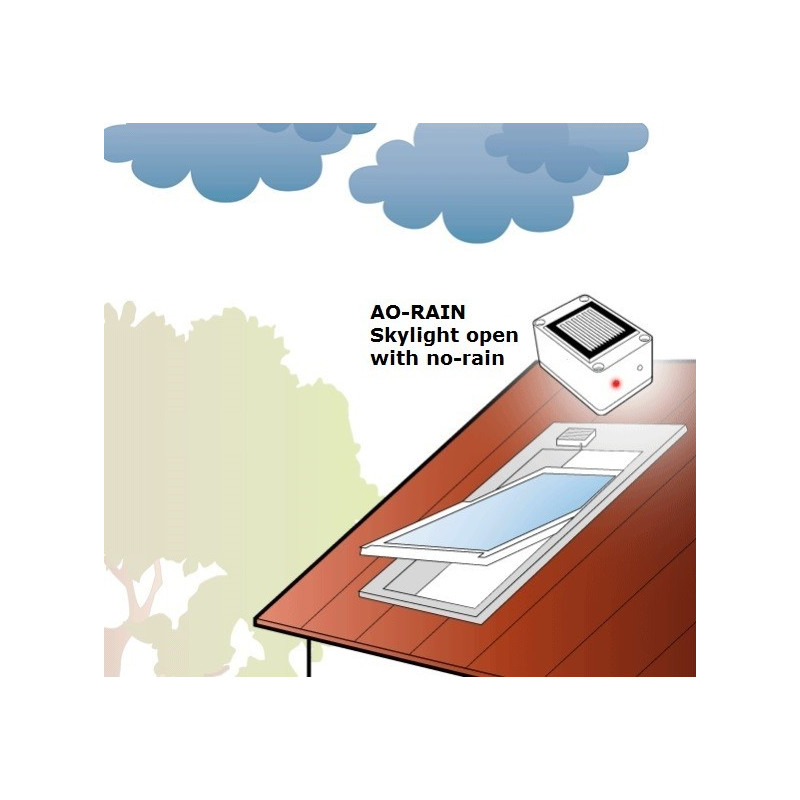

If the sensor comes into contact with rain or snow / fog / hail, a relay is activated. The blinds can be retracted with this, the skylights can be closed or a rain alarm can be activated.

The automatically heated surface of the sensor prevents any freezing or wetting of the sensor surface.
2 installed LEDs indicate function. The electronics are encapsulated in an impermeable form.

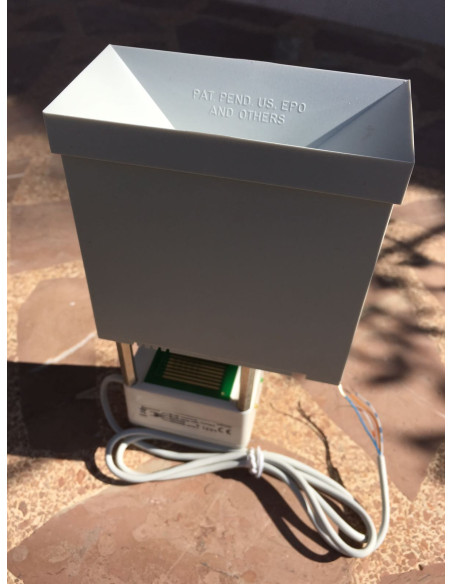

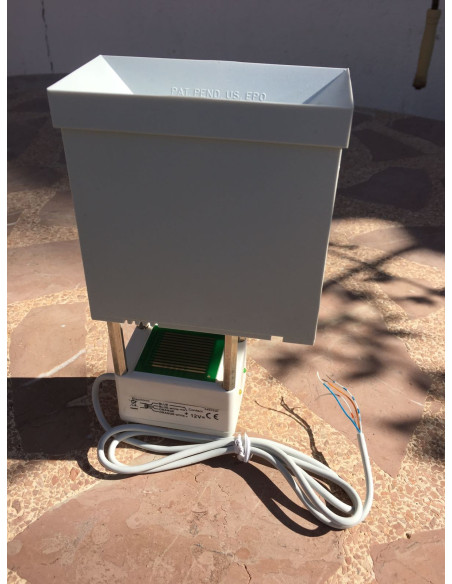

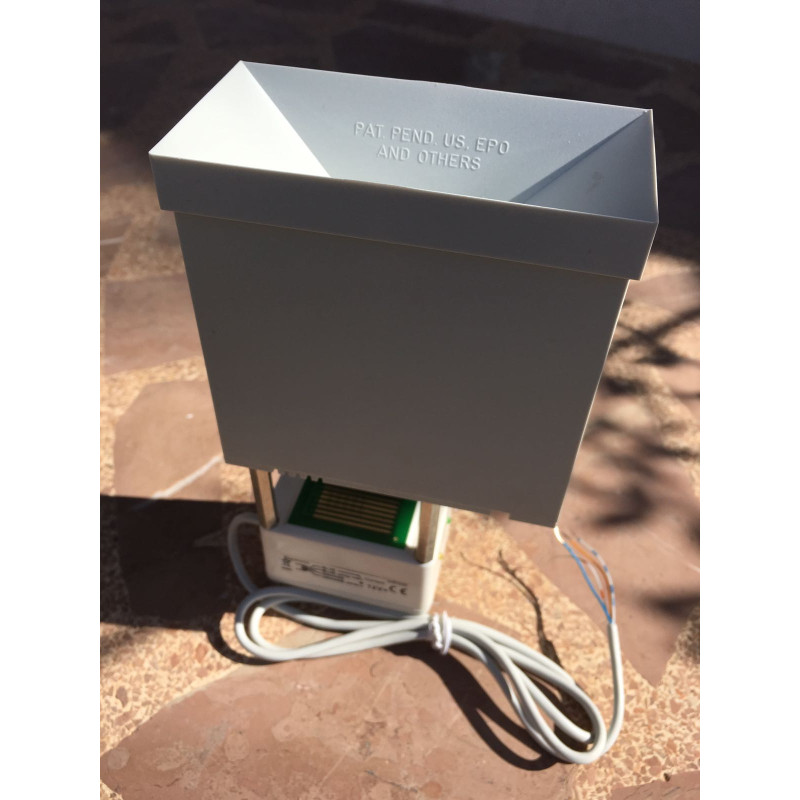

RAIN-O-MATIC: Rain Gauge

Rain-O-Matic is an innovative product with a highly functional design. This rain collector has been designed to be used outdoors and connected to a digital pulse counter.

An automatic emptying mechanism is activated for every mm of precipitation collected in the collector. This process generates a pulse that is recorded by the LCD counter. By registering the number of pulses (= mm mm of rain), the LCD meter stores accumulated rainfall, which can be read at any time on the LCD display.

Rain-O-Matic has undergone 2 years of testing at the Danish Agricultural Testing Laboratory. In addition, after the results obtained, the State Organ of Tests and Implements has placed it among one of the most accurate rain gauges in the world.

Rain-O-Matic is frost resistant, extraordinarily reliable in operation and has an accuracy of no more than 2% over a two-year period.

Digital pulse counter not included.

AO-DET:

Technical data:

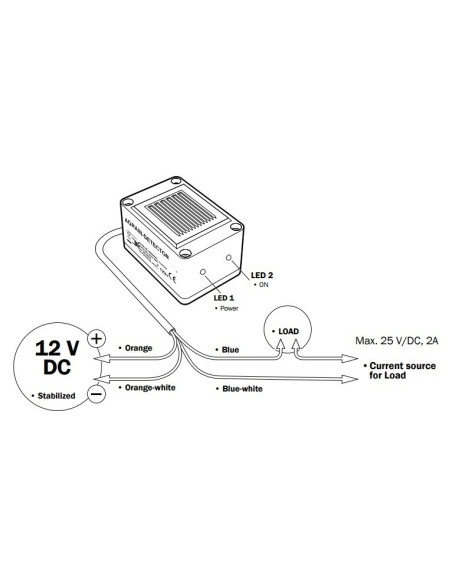

Operating Voltage 12 V / DC

Current consumption without heating ca. 8/160 mA

Relay contact 1 x ON, maximum load 25 V, 2 A

Sensor heating automatically in case of contact with rain

LED diode 1 indication that the rain sensor works

LED 2 indicates that there is rain and that the relay has been activated

Duty cycle of the relay as long as the sensor is wet

The module is encapsulated waterproof.

Active sensor surface, gold-plated ca. 29 x 30 mm

Dimensions ca. 65 x 45 x 36 mm

RAIN-O-MATIC :

Sensor Specifications:

Resolution: 1 mm

Electric specifications

Output signal: 1 or 2 reed switches (depending on model)

Mechanical Specifications

Material: Styrosun®, ABS plastic and PA5

Dimensions: 100 x 99 x 50 mm

Weight: 119 g
