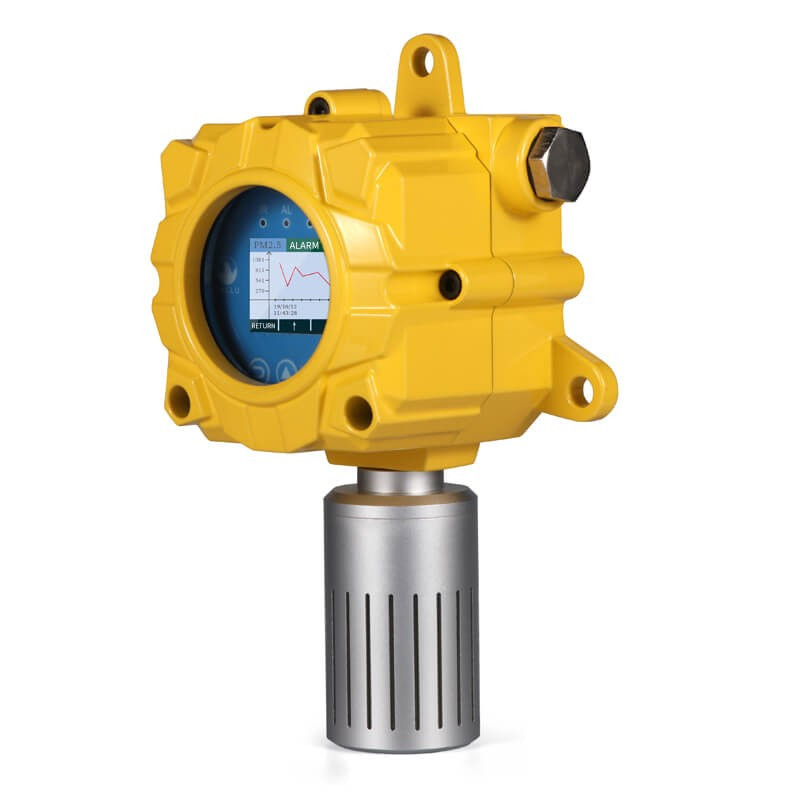

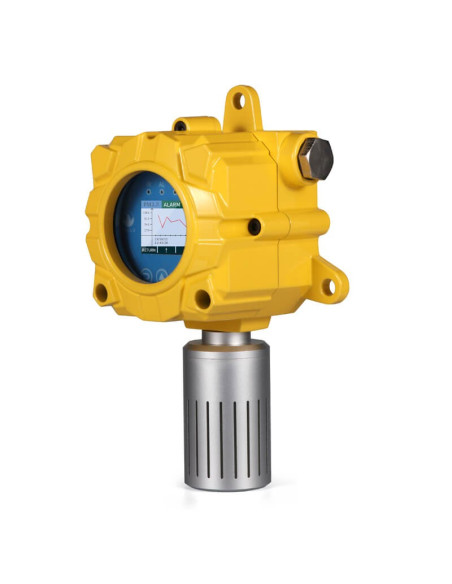

AO-K-G60-TSP Fixed Dust Detector




The AO-K-G60-TSP is a stationary intelligent dust detector that continuously detects PM2.5 and PM10 concentrations in business environments. Ideal for factory applications with sound and light alarms and connection to DCS or PLC systems.

Add to wishlist

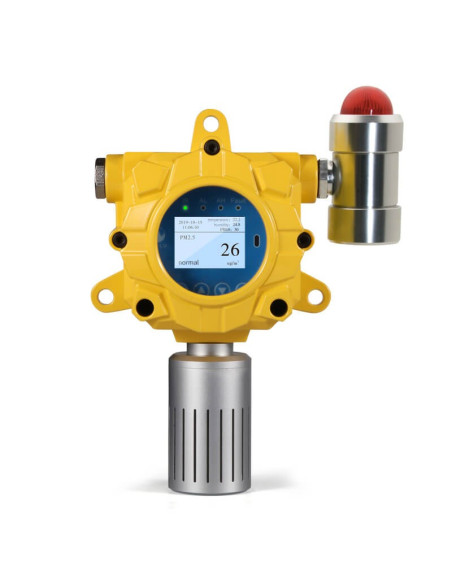

The AO-K-G60-TSP is a fixed intelligent dust detector designed to continuously detect PM2.5 and PM10 concentrations in business environments. It uses the laser scattering method to measure dust concentration, displaying the concentration values on an LCD screen. When the dust concentration exceeds the preset alarm point, the detector activates sound and light alarm signals or can drive the exhaust system.

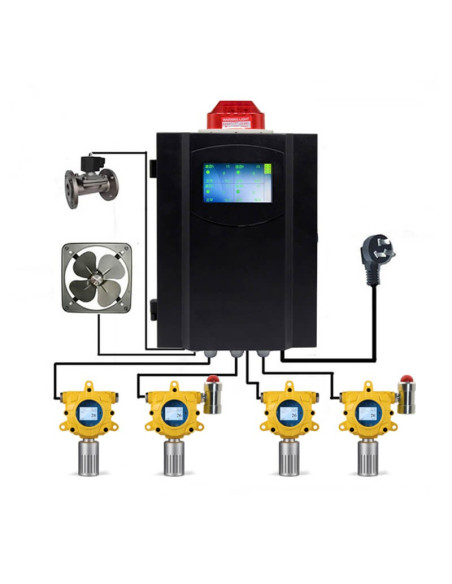

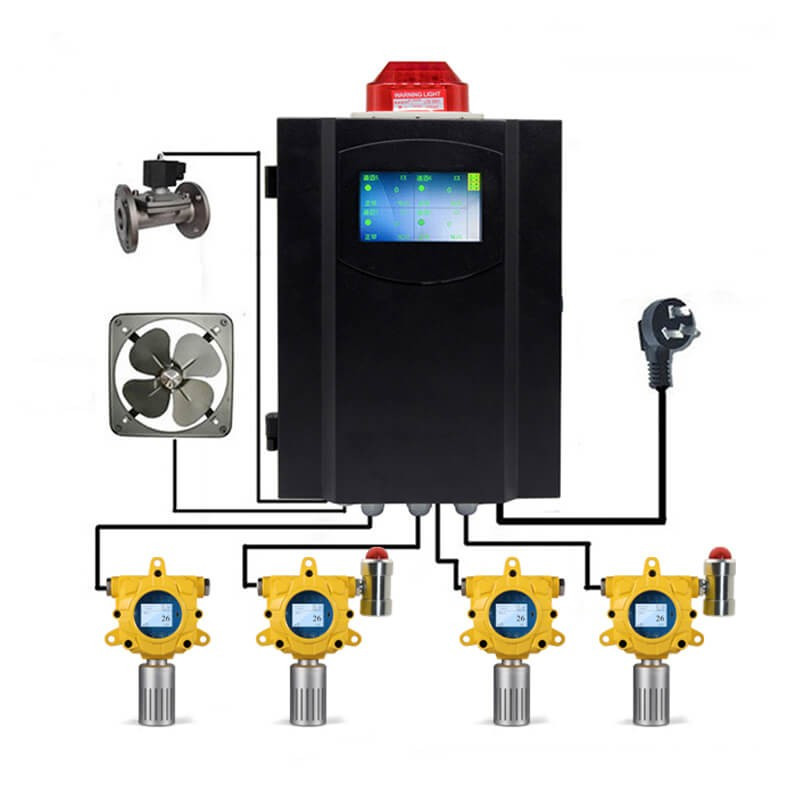

The detector emits an international standard 4-20mA signal that can be directly connected to the plant's DCS system or PLC, and an RS485 digital signal that can be connected to the plant's main computer.

This device incorporates embedded microcontroller technology, allowing for simple operation, complete functions, and high reliability. The AO-K-G60-TSP is ideal for indoor dust concentration monitoring, especially in industrial applications.

  • Detection method: laser scattering
  • Continuous monitoring of PM2.5 and PM10
  • Output signal: 4-20mA and RS485
  • LCD screen to display dust concentration
  • Sound and light alarm
  • Connection to DCS and PLC systems
  • Simple operation and high reliability
  • Suitable for indoor dust concentration monitoring
Sensor PM2.5, PM10
Pressure 86 ~ 106Kpa
Sampling Method Laser Scattering
Temperature & Humidity -20℃-50℃, <95%RH
Response Time ≤10s
Voltage DC24V±15%
Range (0-1000)ug/m3
Display 2.0 inch colored LCD
Size 236*181*90mm
Precision ≤±10%F.S
