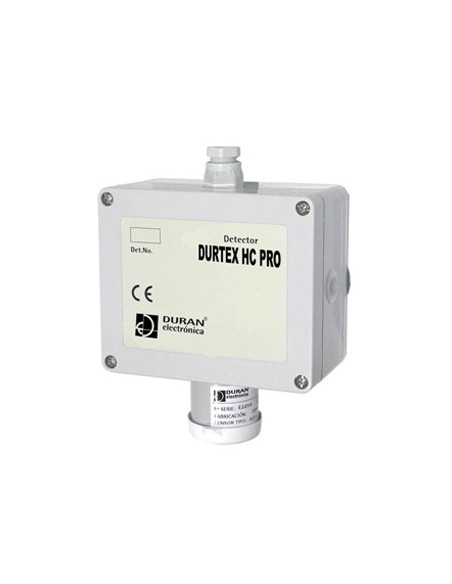

DETECTOR DURTEX HC PRO 4-20mA for Explosive Gas Detection View larger

DURTEX-HC-PRO 4-20mA DETECTOR for Explosive Gas Detection

New

4-20mA detectors for the detection of explosive gases using catalytic technology -pellistor- compatible with any system with standard 4-20mA inputs and with the DURGAS, EUROSONDELCO and SIEMENS CC62P power units via Interface.

246,00 €

Add to wishlist

Type of Instrument Gas detector
The instrument measures: Explosive gases

Detection range from 0 to 100% L.I.E.
Optical loop and sensor fault indications.
Optional programmable alarm relay module: 1 level of programmable alarm, instantaneous / delayed disconnection, programming of the tripping delay and initial state of the relay at rest.
Low consumption (30mA to 24V) that allows the installation of more detectors and longer loop length without the need for additional power supplies.
Wide power range (10V to 30V DC)
Detector with sintered filter. (DURTEX HC PRO)
Calibrated in factory with standard gas. They do not need to be recalibrated in the installation.
Simple verification and maintenance operations by a single operator.
Silicone Vapors Resistant (HDMS)
Also available in RS485C format
Calibrated in factory with standard gas. They do not need to be recalibrated in the initial commissioning of the installation.

DURTEX HC PRO. Gases available: methane-natural gas, butane-propane, hydrogen, heptane, hexane, pentane, methanol, styrene, ethane, ethanol, ethylene, propylene, acetone, ammonia, cyclohexane, cyclopentane, dioxane, ethyl acetate, Acetic acid, isobutyl alcohol, isopropyl alcohol, decane, benzene, octane, methyl ethyl ketone, butanone, nonane, propanol, toluene, xylene. For other gases, check availability. A special version for the detection of ACETYLENE is also produced.
