U24-002-C
New
Coastal Ecology,Hidrology Studies & Water Quality MonitoringApplications.
Availability date:
Environment of Use | Water |
Type of Logger | Portable |
Measured Parameters | Conductivity, Salinity & Temp. |
With Display | No |
Battery Life | 3 years |
Memory Capacity | 18,000 data points |
Depth in meters | 70 m |

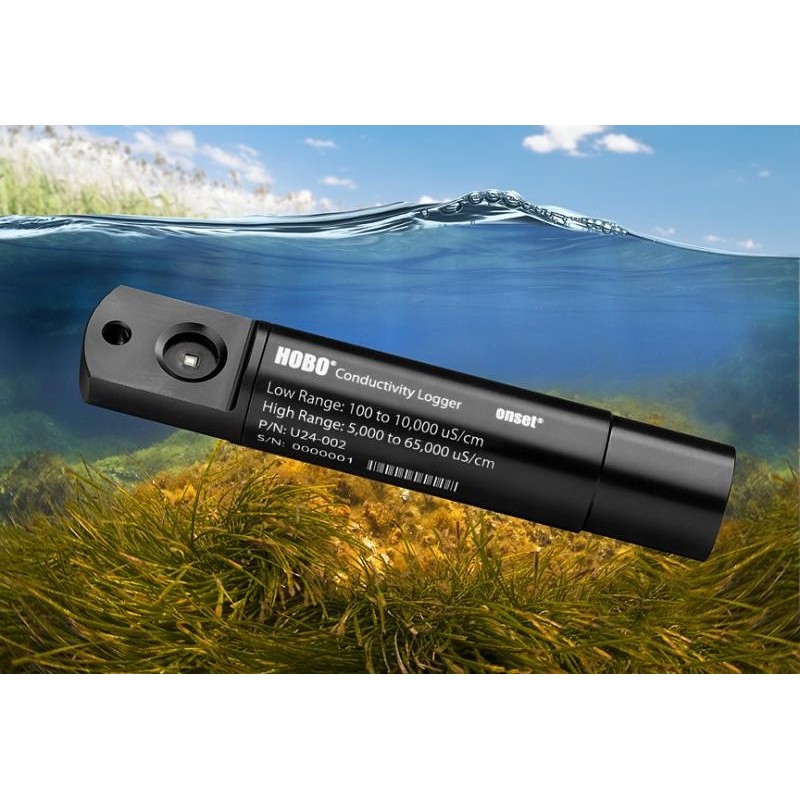

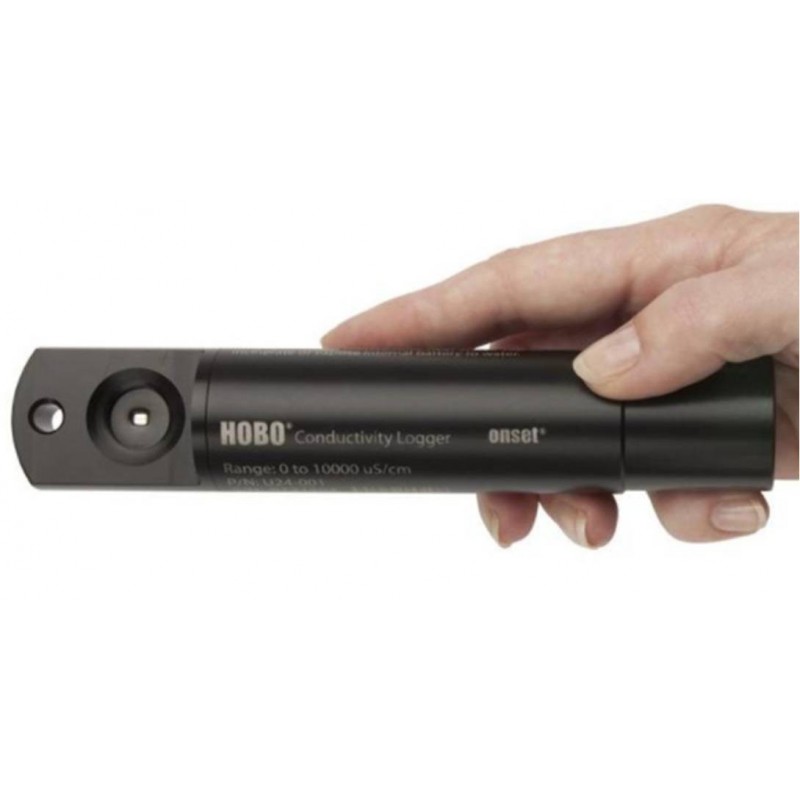

The HOBO U24-002-C Data Logger is a cost-effective data logger for measuring salinity, conductivity and temperature in saltwater environments with relatively small changes in salinity (±5,000 μS/cm) such as saltwater bays, or to detect salinity events such as upwelling, rainstorm, and discharge events. It can also be used to gather salinity data for salinity compensation of HOBO U26 Dissolved Oxygen logger data.
Note: When monitoring salinity in waters with more than +/-5,000 uS/cm variation, refer to the accuracy shown in Plot C in the product specifications to determine if the accuracy is acceptable for your needs. Monthly field calibration readings are typically required to achieve the best accuracy.
Environment:
The U24-002-C Data Logger is for use in Outdoor and Underwaterenvironments
Measurements:
The U24-002-C Data Logger supports the following measurements: Temperature, Conductivity/Salinity
Measurements: Actual Conductivity, Temperature, Specific Conductance at 25C (calculated), Salinity (calculated using PSS-78, the Practical Salinity Scale 1978)
Conductivity Measurement Range: (Calibrated Range)
High Range: 5000 to 55,000 uS/cm
Low Range: 100 to 10,000 uS/cm
Over the range of 5 to 35C (41 to 95F)
Temperature Measurement Range: 5 to 35C (41 to 95F)
Plot A: Salinity Range (U24-002-C)* |
Plot B: Specific Conductance Range in Saltwater |
Plot C: Specific Conductance High-Range Accuracy (U24-002-C) |
Specific Conductance Accuracy: (in Calibrated Range using Conductivity Assistant and Calibration Measurements)
Low Range: 3% of reading or 50 µS/cm, whichever is greater
High Range: 5% of reading, in waters within a range of
±3,000 µS/cm; waters with greater variation can have substantially greater error (see Plot C)
Resolution:
Conductivity: 2 uS/cm
Temperature: 0.01°C (typical 0.02°F)
Conductivity Drift:
Up to 12% sensor drift per month, exclusive of drift from fouling. Monthly start- and end-point calibration should be used with the HOBOware Conductivity Assistant to achieve the specified Specific Conductance accuracy.
Response time: 1 second to 90% of change (in water)
Operating Range: -2 to 36C (28 to 97F) – non-freezing
Memory: 18,500 temperature and conductivity measurements when using one conductivity range; 14,400 sets of measurements when using both conductivity ranges (64kbytes)
Sample rate: 1 second to 18 hrs, fixed or multiple-rate sampling with up to 8 user-defined sampling intervals
Clock accuracy: +/- 1 minute per month
Battery life: 3 years (@ 1 min logging)
Maximum Depth: 70 m (225')
Weight: 193 gm (6.82 ounces), buoyancy in freshwater: -59.8 gm (-2.11 ounces)
Size: 3.18 cm diameter x 16.5 cm, with 6.3 mm mounting hole (1.25' diameter x 6.5', ¼' hole)
Wetted Housing Materials: Delrin housing, epoxy, stainless steel retaining ring, polypropylene, Buna rubber O-ring, titanium pentoxide (inert coating over sensor) – all materials are suitable for long-term use in saltwater.
CE Compliance: The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
