EC1100-S LAQUA Benchtop Meter Kit for Water Quality

EC1100-S (3999960179)

HORIBA

New

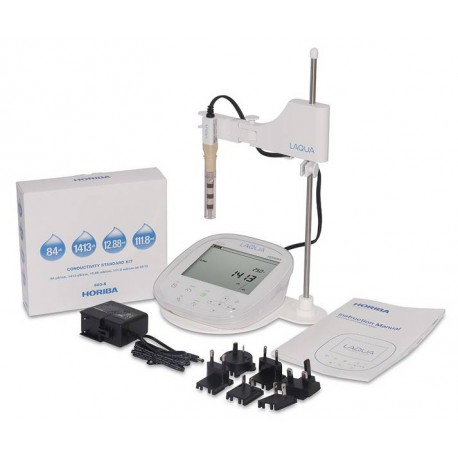

  • Contain:

• EC1100 meter
• Electrode stand
• Power adaptor
• 84uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm solutions (250ml ea)
• 9382-10D - plastic-body, k=1.0 conductivity cell with integrated temperature sensor, 1m cable, BNC & phono jack
• Data Acquisition Software

760,00 €

Add to wishlist

With Display LCD
Communications RS232C, USB
Memory Capacity 500
The Sensor measures: EC/Res/TDS/Sal/Temp
Power Supply: AC adaptor 100 ­ 240V, 50/60 Hz
  • Package Details:

- LAQUA EC1100 EC/TDS/Res/Sal/Temp custom black and white static LCD meter
9382-10D plastic-body, titanium/platinum black conductivity probe (k=1.0) wth integrated temperature sensor
- 503-S Conductivity standards: 84 uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each)
- Data acquisition software in USB flash drive (communication cable is sold separately)
- Integrated electrode stand
- Protection cover
- Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, China, Korea)
- Instruction manual

Model

LAQUA EC1100

EC/Res/TDS/Sal/Temp (°C)

Condutivity (EC) Range

0.000 µS/cm to 20.00 mS/cm (k=0.1)

0.00 µS/cm to 200.0 mS/cm (k=1)

0.0 µS/cm to 2.000 S/cm (k=10)

Resolution

0.05% of full scale

Accuracy

± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm

Reference Temperature

15 to 30 °C (Adjustable)

Temperature Coefficient

0.00 to 10.00 % (Adjustable)

Cell Constant

0.1 / 1.0 / 10.0 (Selectable)

Measurement Unit

μS/cm, mS/cm, S/m (Auto-ranging / Manual)

Calibration Points

Up to 4 (Auto / Manual)

TDS Range

0.00 mg/L to 100 g/L

Resolution

0.01 mg/L

Accuracy

± 0.1% of full scale

Calibration Curves

EN27888 / 442 / Linear (0.40 to 1.00) / NaCl

Resistivity Range

0.0 Ω•cm to 2.000 MΩ•cm (k=10)

0.000 kΩ•cm to 20.00 MΩ•cm (k=1)

0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)

Resolution

0.05% of full scale

Accuracy

± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm

Salinity Range

0.00 to 100.00 ppt / 0.000 to 10.000 %

Resolution

0.01 ppt / 0.001 %

Accuracy

± 0.2% of full scale

Calibration Curves

NaCl / Seawater

Temperature Range

-30.0 to 130.0 °C

Resolution

0.1 °C

Accuracy

± 0.4 °C

Calibration Option

Yes

Memory Data

500

Auto-Hold / Auto-Stable

Yes

Cell Constant Display

Yes

Electrode Status

On screen display

Diagnostic Messages

Yes

Display

Custom black and white static LCD

Inputs

BNC, phono, DC sockets

Output

RS232C, USB

Power Requirement

AC adaptor, 100-240V, 50/60Hz

Weight

500g

Dimensions

170(L) x 174(D) x 73(H) mm
