BanteS30 Bluetooth Ion Meter

Reference

Condition: New

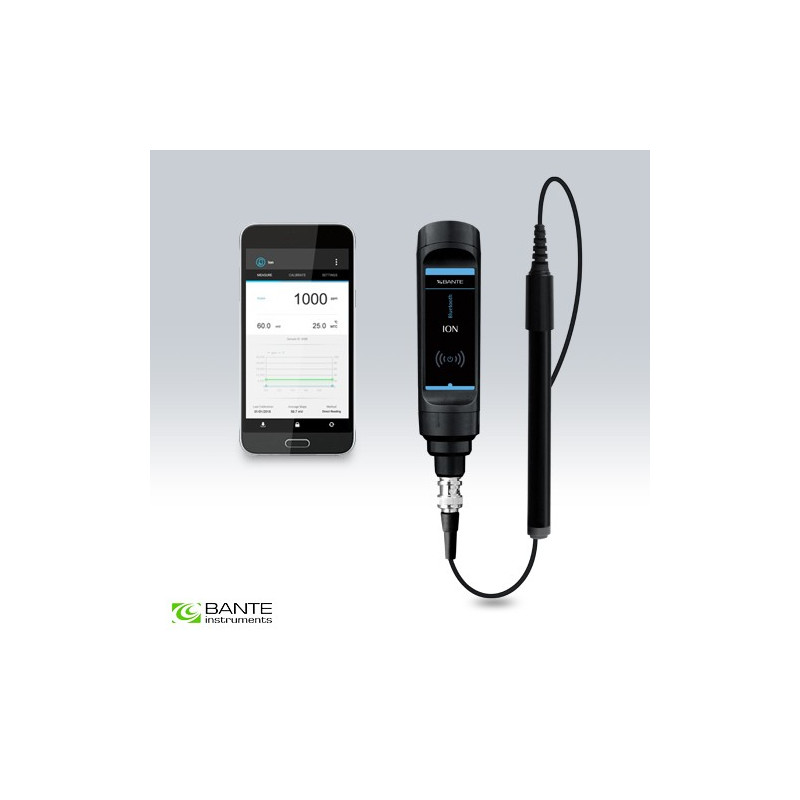

The BanteS30 High-performance wireless bluetooth ion meter is installed with a BNC connector that used for connecting a variety of ISEs.
The tester is suitable for Android smartphone or tablet.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

650,00 €

tax excl.

Quantity

MODEL

Add to wishlist

OVERVIEW
SPECIFICATIONS
WHAT'S IN THE BOX
MODELS
Data sheet
Download

Type of Instrument	Ion Meter

S30 SERIES Download (755.16k)

Bante Catalog Download (5.81M)

• High-performance bluetooth ion meter contains 5 ion concentration measurement methods.
• Selectable ion concentration units, including the ppm, mg/L, mol/L and mmol/L.
• 2 to 5 points calibration, providing the 8 concentration points can be selected.
• Electrode management is capable of storing and recalling up to 3 electrode slopes.
• Manual temperature compensation eliminates the error caused by temperature deviation.
• Auto-Read function senses and locks the measurement endpoint.
• Timed Interval Readings automatically send the measurement data to memory or printer.

• Limit Alarm automatically alerts when reading exceeds the specified range.
• Calibration due alarm prompts user to calibrate the tester regularly.
• Calibration report provides the date, time and electrode slope.
• Password protection prevents the unauthorized calibration and settings.
• Multiparameter measurement allows the conductivity and dissolved oxygen testers connect
to device simultaneously.
• Factory Reset automatically resumes all settings back to default options.

Model		S30
Ion
Range		0.001~30000 (Depending on the range of ISE)
Accuracy		±0.5% F.S (Monovalent), ±1% F.S (Divalent)
Resolution		0.001, 0.01, 0.1, 1, automatic
Calibration Points		2 to 5 points
Calibration Solutions		0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
Measurement Units		ppm, mg/L, mol/L or mmol/L
Measurement Methods		Direct reading, known addition, known subtraction,
		sample addition and sample subtraction
Electrode Management		1 to 3 electrodes
mV
Range		±2000.0mV
Accuracy		±0.2mV
Resolution		0.1, 1mV, selectable
General
Temperature Compensation		0~100°C, 32~212°F, manual
Stability Criteria		Fast, standard or slow
Measurement Modes		Continuous or auto-read
Timed Interval Readings		10, 30, 60, 300 seconds or off
Calibration Due		1 to 99 days or off
Data Transafer		Send to memory or printer
Password Protection		6 digits
Connectivity		Bluetooth 4.0 or later
Max Wireless Range		10 meters
Power		2×1.2V lithium batteries or AAA batteries
Dimensions		175(L)×40(Dia.)mm
Weight		100g

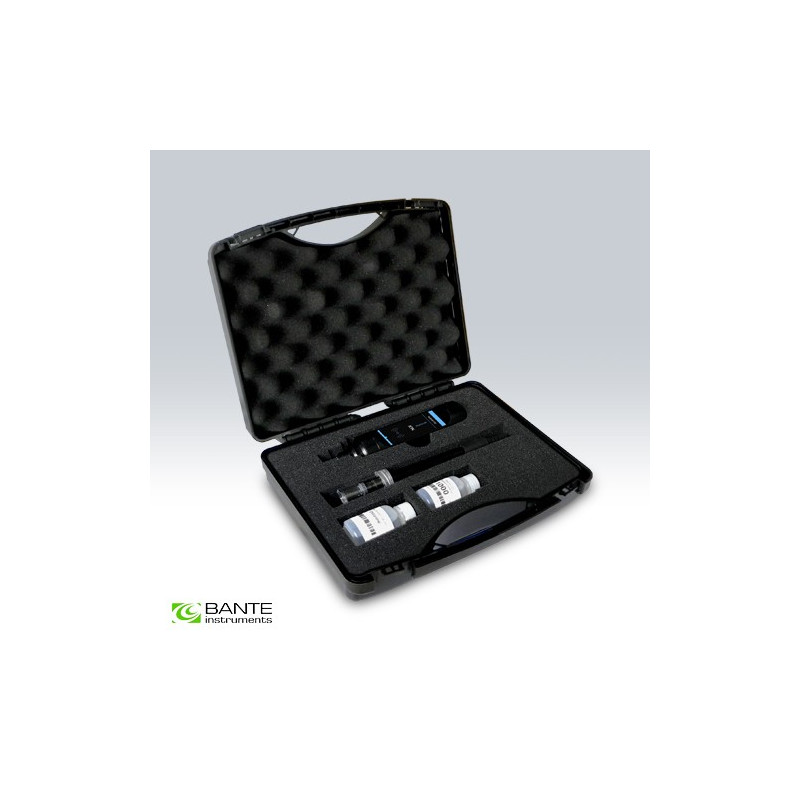

Ion selective electrode

Standard solutions 100 and 1000ppm

Ionic strength adjuster

Carrying case

OPTIONAL ACCESSORIES:

Items	Description
Na-US Sodium Electrode	Range: 0.1 to 23000ppm
CL-US Chloride Electrode	Range: 1.8 to 35500ppm
F-US Fluoride Electrode	Range: 0.02ppm to saturation
Ca-US Calcium Electrode	Range: 0.02 to 4000ppm
NO3-US Nitrate Electrode	Range: 0.4 to 62000ppm
Br-US Bromide Electrode	Range: 0.4 to 79900ppm
NH4-US Ammonium Electrode	Range: 0.1 to 18000ppm
Cn-US Cyanide Electrode	Range: 0.2 to 260ppm
Cd-US Cadmium Electrode	Range: 0.01 to 11200ppm
Cu-US Copper Electrode	Range: 0.006 to 6400ppm
I-US Iodide Electrode	Range: 0.06 to 127000ppm
Pb-US Lead Electrode	Range: 0.2 to 20700ppm
Ag-US Silver Electrode	Range: 0.01 to 107900ppm
K-US Potassium Electrode	Range: 0.04 to 39000ppm
S-US Sulphide Electrode	Range: 0.003 to 32100ppm
NH3-US Ammonia Electrode	Range: 0.02 to 17000ppm
Ion Standard Solutions	480mL/bottle
Ionic Strength Adjuster	480mL/bottle
Bluetooth Printer	Use for the S series testers
