KL-100 Laboratory for Electronic Experiments with Linear Circuits (1)

The KL-100 Linear Circuit Lab (1) Electric Circuits Lab is a comprehensive and self-contained system suitable for tuition and experimentation with electric circuits.

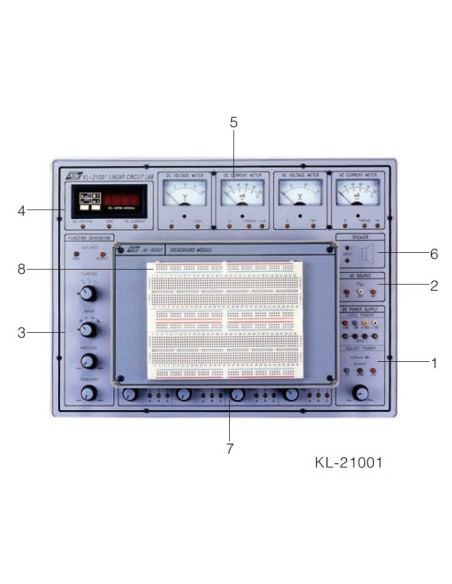

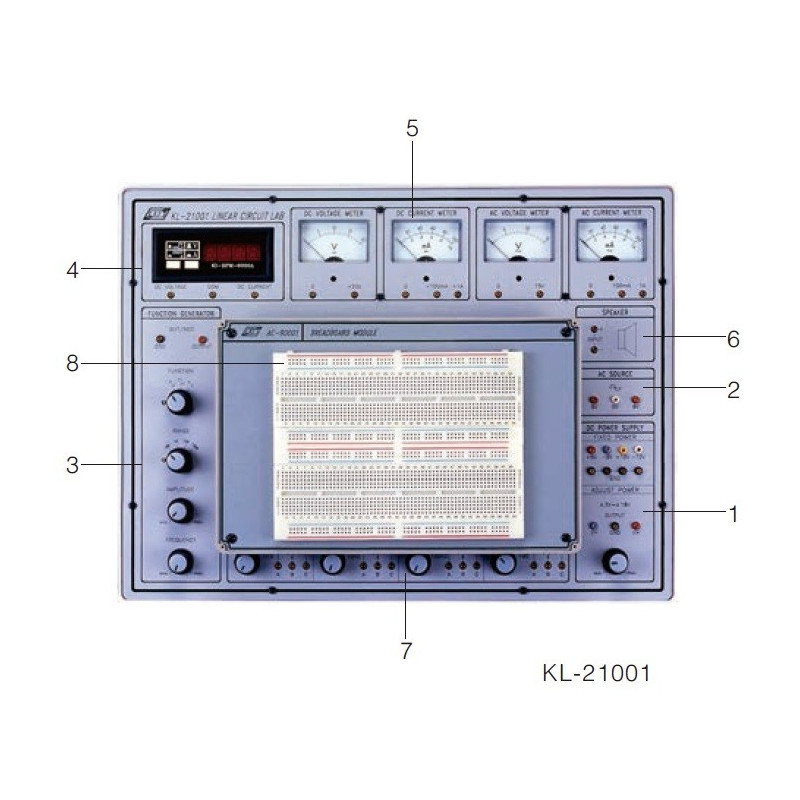

All the necessary equipment for electric circuit experiments such as power supply, function generator, analog and digital meters are installed on the main unit.

The 11 modules cover a wide variety of essential topics for electric circuit. It is indeed a time and cost saver for both students and engineers interested in training, developing and testing prototype circuits.

1. Experiments for Basic Electricity

2. Experiments for Magnetism

3. Experiments for Basic Electronic Circuits

4. Experiments for Simple Electronic Circuits

5. Experiments for Industrial Control Applications

6. Experiments for Oscillator Characteristics and Applications

• Ideal for electric circuit experiments and design exercises
• Integrated trainer with complete curriculum
• Complete with power supplies and test systems for easy and efficient experimentation
• Universal breadboard (1680 tie points) for circuit design and prototyping
• All modules equipped with an 8-bit DIP switch for circuits fault simulations

We would like to introduce the pre-circuited systems with comprehensive step-by-step experiment manual, allowing students to learn efficiently.
In addition to experiments by hardware, we also provide material for students to conduct some experiments by simulation software.
Below is a demo video; an experiment is made by hardware first, and then the same experiment is conducted again by the software.
This will assist students in their learning.
Then students can break into 2 groups and take turns using the hardware or software, especially during mobility restrictions.
