Scientech 2303 LVDT (Linear Variable Differential Transformer) is the most commonly used inductive transducer for displacement measurement. It is designed to teach the LVDT characteristics.
Scientech 2303 LVDT is a secondary transducer that converts the displacement directly into an electrical output proportional to the displacement.

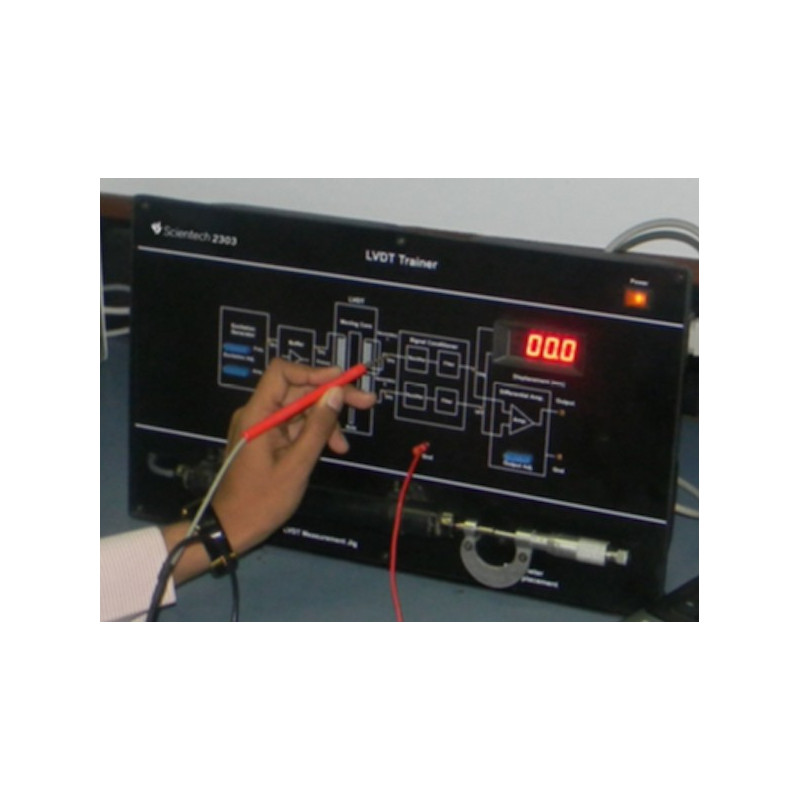

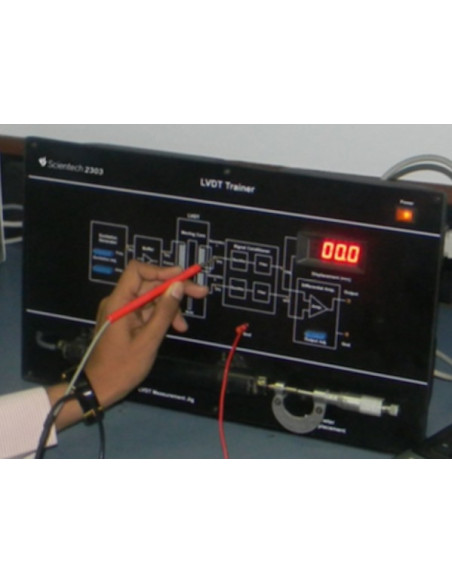

Scientech LVDT 2303 is designed to teach LVDT Characteristics. LVDT (Linear Variable Differential Transformer) is the most widely used inductive transducer for displacement measurement. LVDT is a secondary transducer which converts the displacement directly into an electrical output proportional to the displacement. Scientech 2303 has seven-segment LED display showing displacement in mm with a sensitivity of 10mV/mm in the range of 10mm. Scientech 2303 is self contained single box design and easy to use.
Self contained and easy to operate.
Sensitive, Linear Stable and Accurate.
Functional block indicated on broad mimic
31/2 digit LED display with polarity indicator.

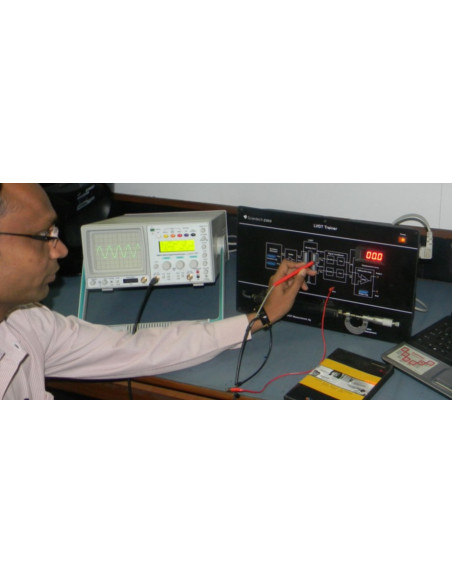

Onboard LVDT displacement measurement jig with micrometer.
Amplitude measurement for Excitation Generator.
High repeatability and reliability.
Scope of Learning:
Study of Input Output characteristics of LVDT
Determination of linear range of operation of LVDT
Determination of sensitivity of LVDT
Measurement of phase difference between LVDT secondaries
