> >>PL400-B Rain Gauge 400 cm² Class A (Output: 4 ÷ 20mA)
PL400-B 400cm² Rain gauge in accordance to WMO norms Class A View larger
Previous Next

PL400-B Rain Gauge 400 cm² Class A (Output: 4 ÷ 20mA)

PL400-B

Nesa srl

New

Rain gauge in accordance to WMO norms Class A according to UNI 11452:2012.

Volume discounts

Quantity Price
(tax excl.) 		You Save
%
1+ 795,00 € 0%
4+ 755,25 € 5%
10+ 715,50 € 10%

795,00 €

tax excl.

Add to wishlist

The Sensor measures: Rain (rain gauge)
Output Signal: 4-20 mA
Power Supply: Does not require
Sensor for use in: Outdoor
Sensors Accessories: Mounting Shelf

PL400 Data Sheet Download (942.77k)

PL400 Manual Download (3.86M)

PL400 Cabling Download (620.68k)

PL400 Data Sheet Download (309.42k)

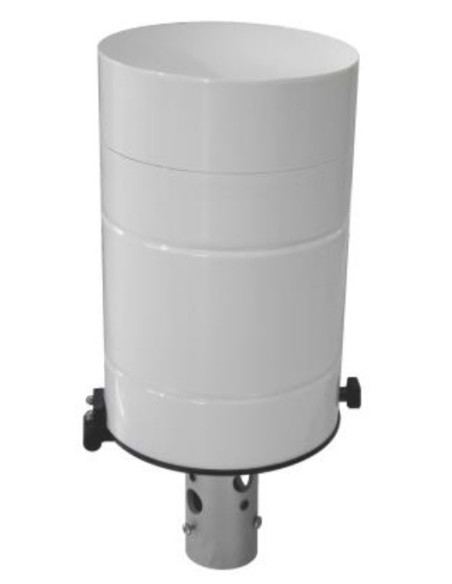

Collecting area 400cm², made of anodized anticorodal aluminum and white painted, with stainless steel measuring system (tilting bucket).
Out signal: 4÷20mA (0÷100mm, other ranges on request).

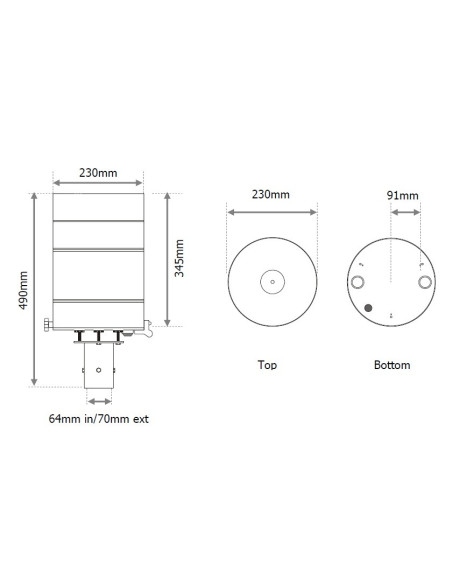

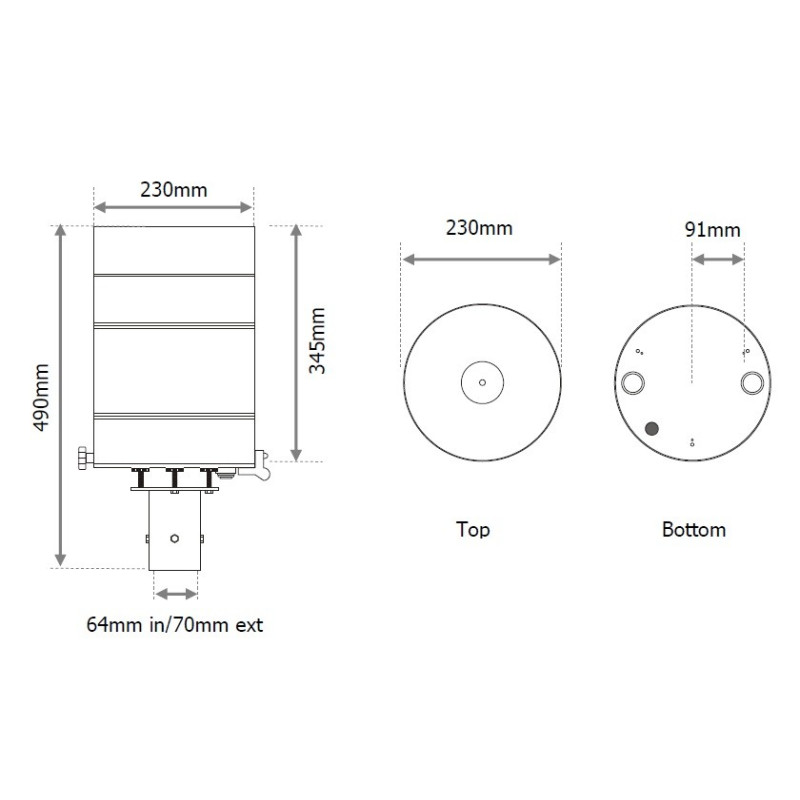

With flange for mounting on poles ømax 59/80mm.
Complete of Calibration Report (Also available with cable and support).

PL400 -B

A class Sensor, according to UNI11452: 2.012 for the measurement of precipitation with collection surface of 400cm2, made of aluminum alloy with anodization treatment for protection against oxidants and salt. In accordance with WMO standards for environmental monitoring.

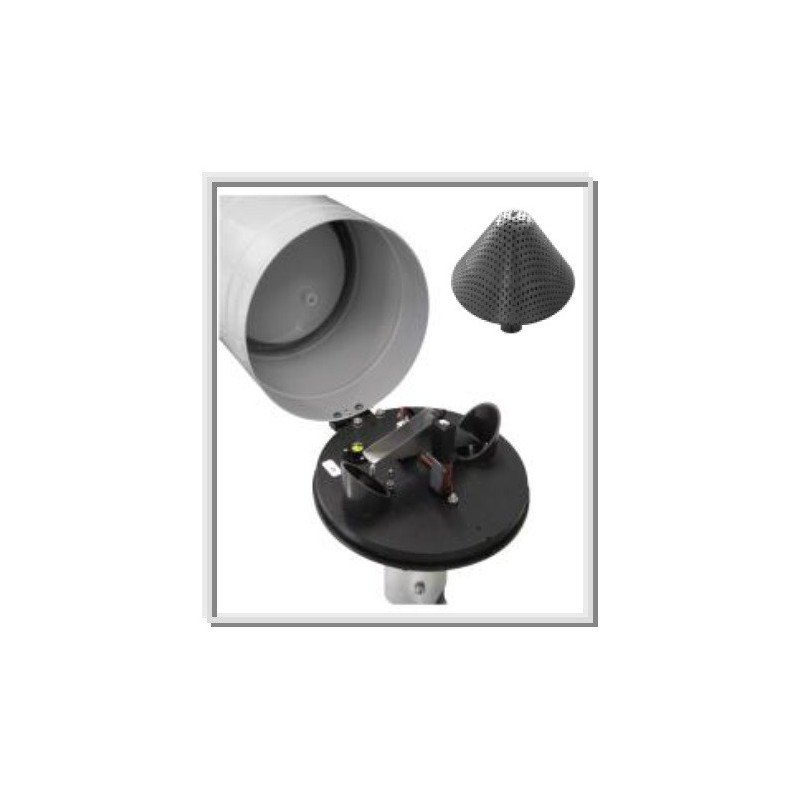

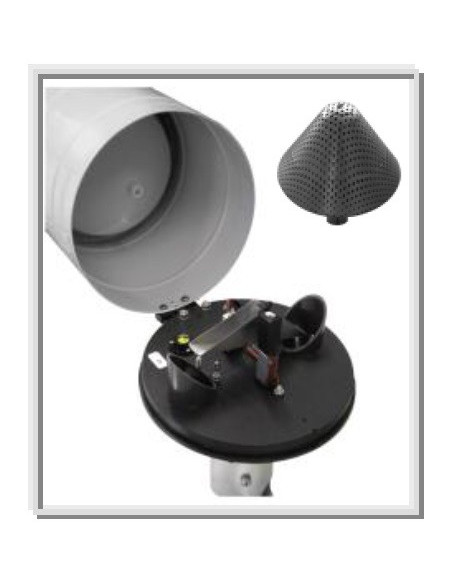

Measuring system with knife blade support to tilt the stainless steel bucket with a special system to reduce friction, to ensure high accuracy throughout the measuring range. A special test and calibration system guarantees the functionality of the instrument for a long time.

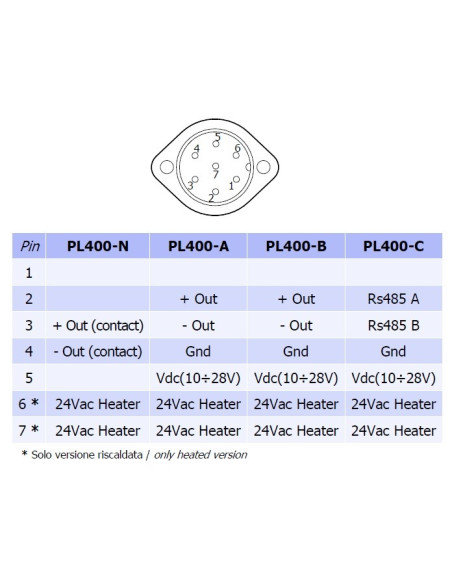

Pin

Colour

Signal out 4-20ma

1

--

--

2

White

+ Out

3

Green

- Out

4

Grey/Orange

GND

5

Red

Vdc 10-28V

6

--

--

7

--

--
