PL400R-A Heated Rain Gauge 400cm2 Collection Surface (Out signal: 0÷2Vdc)

PL400R-A

Nesa srl

New

Volume discounts

Quantity Price
(tax excl.) 		You Save
%
1+ 890,00 € 0%
4+ 845,50 € 5%
10+ 801,00 € 10%

890,00 €

tax excl.

Add to wishlist

The Sensor measures: Rain (rain gauge)
Output Signal: 0 - 2 Vdc
Sensor for use in: Outdoor

PL400 Data Sheet Download (942.77k)

PL400 Manual Download (3.86M)

PL400 Data Sheet Download (309.42k)

DESCRIPTION

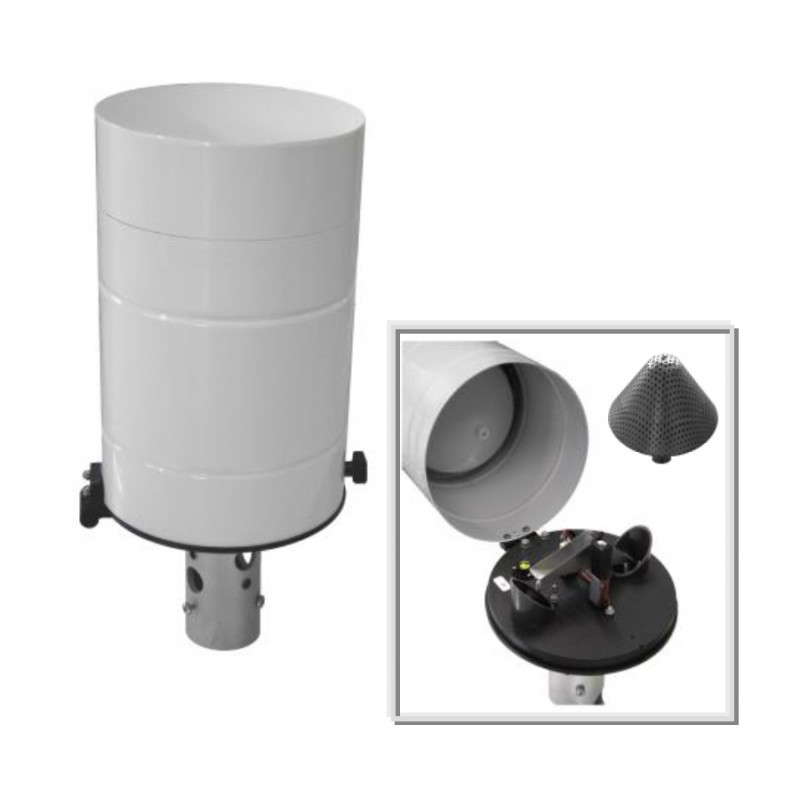

Sensor in A Class, according to UNI11452:2012 for the measurement of precipitation with collection surface of 400cm2, realized in aluminum alloy with anodizing treatment for protection against salt and oxidizing agents. According to WMO norms for environmental monitoring.

Measurement system with knife blade support for tilting bucket in stainless steel with a special system to reduce friction, for ensuring high accuracy over the entire measuring range. A particular system of testing and calibration guarantees the functionality of the instrument for long time.

PL400-A

Rain gauge in accordance to WMO norms Class A according to UNI 11452:2012. Collecting area 400cm2, made of anodized anticorodal
aluminum and white painted, with stainless steel measuring system (tilting bucket) Out signal: 0÷2Vdc (0÷100mm, other ranges on
request). With flange for mounting on poles ømax 59/80mm. Report of Calibration (Also available with cable and support)
