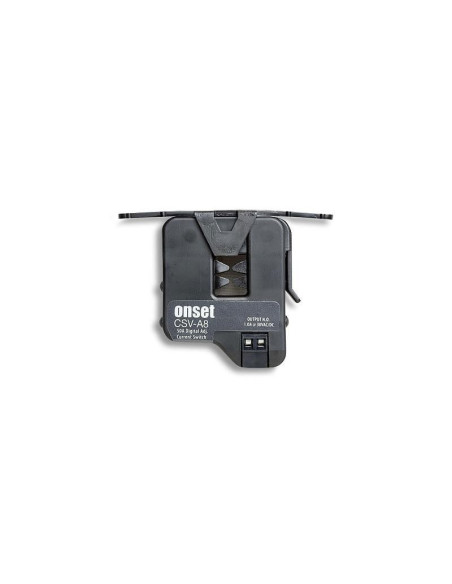

CSV-A8 AC Current Switch Sensor (Customer Adjustable from 0.5 to 175 Amps AC)

CSV-A8

Onset

New

User-adjustable threshold switch to record when the equipment is turned on and off.

BUYING IN BULK, OR JUST WANT SOME USEFUL ADVICE?
Call +34 916292106 or complete our More info about this product. form

Onset Data Loggers

Onset Computer Corporation

159,00 €

Add to wishlist

The Sensor measures: AC Current
Output Signal: Relays

Measure runtime (time-of-use) of equipment with the CSV-A8 split-core AC current sensor along with a compatible HOBO data logger. This UL-listed sensor has built-in on/off status lights and provides an adjustable current threshold of 0.5 to 175 amps. Simply install the sensor around a current-carrying wire to the equipment to be monitored and then connect the sensor to a compatible U90-001 or UX120 data logger.

  • Highlighted Features

- Can be used with any state channel on UX120U90-001.
- Installs around a current-carrying wire to provide a relay signal indication of "Equipment On/Off"
- Adjustable threshold provides maximum application flexibility
- UL listed

  • In what environment does this sensor operate?

This sensor operates in an indoor environment.

  • What measurements does this sensor support?

The CSV-A8 sensor supports the following measurement: Motor On/Off

Amperage range: .5 to 175 Amps continuous
Sensor supply voltage: Induced from monitored conductor, with no external power required
Isolation: 600 VAC rms (max voltage when monitoring an uninsulated conductor
Status ratings: N.O. 1.0A @ 30 VAC/DC max, not polarity-sensitive
Dimensions: 5.9 x 5.1 x 2.3 cm (2.32 x 2.0 x 0.92 in)
Window opening: 0.5” x 0.6” (1.27 cm x 1.52 cm)
