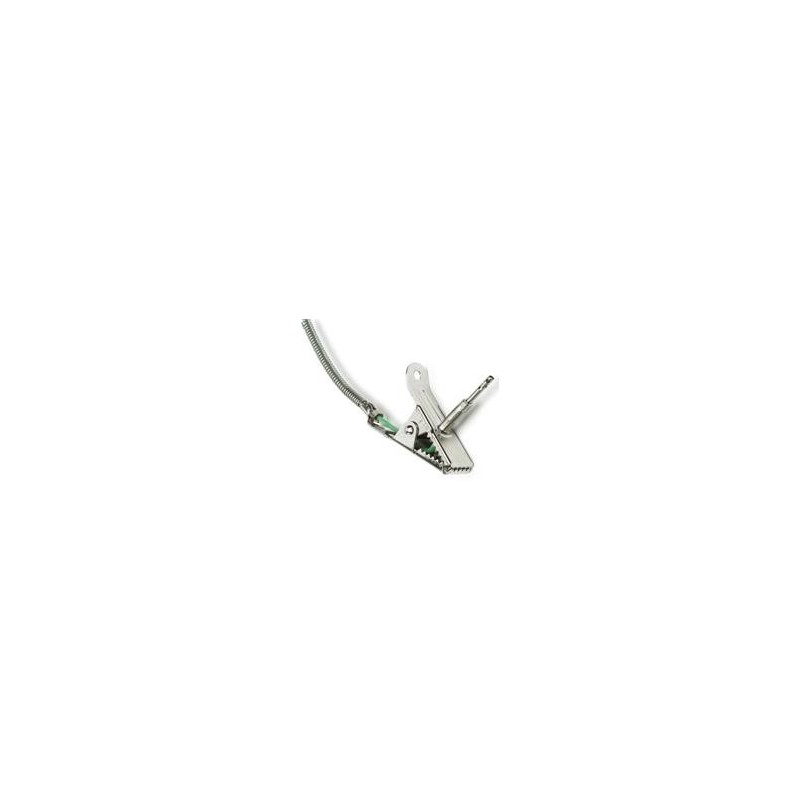

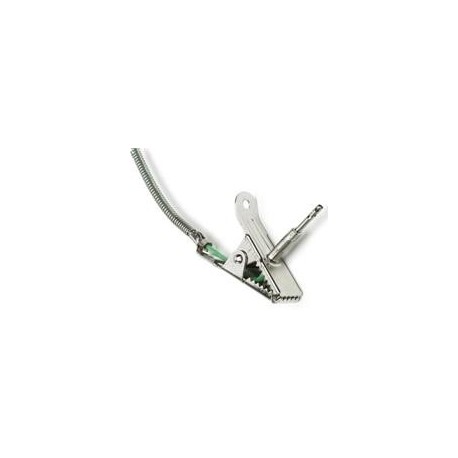

CAP-K-G Clamp type Temperature sensor for Air (up to 250ºC)

Reference

Condition: New

CLAMP AIR PROBE

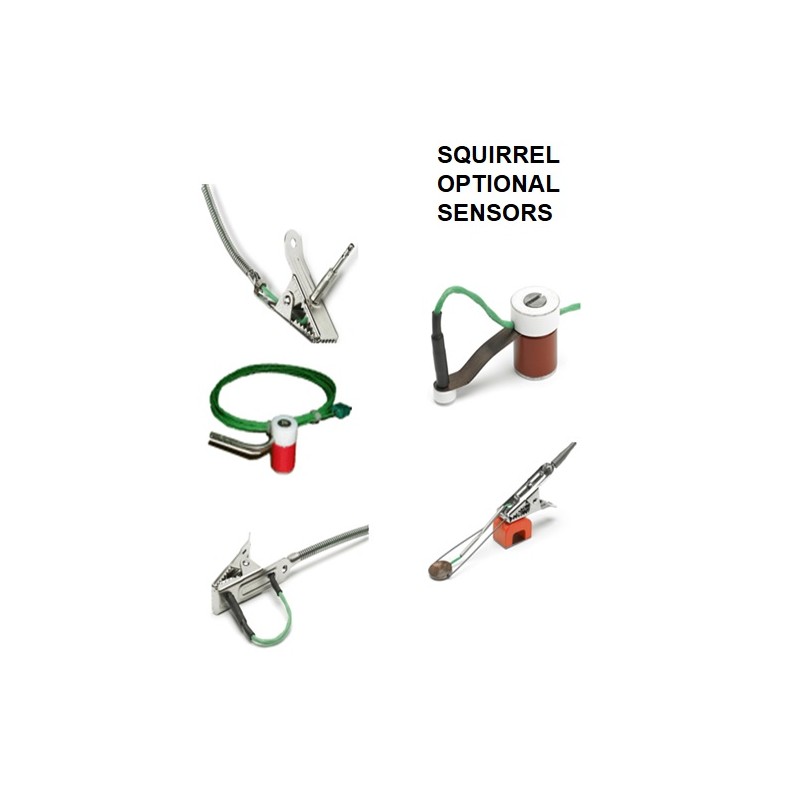

Grant manufactures a comprehensive range of robust, high quality temperature probes with a choice of sensor and in a variety of physical styles for use with Squirrel data loggers. In addition to the standard range of temperature probes Grant is able to customise probes for special applications.

Grant is able to supply humidity probes and current transducers and to provide guidance on suitable sensors for measuring a wide variety of other physical parameters.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

180,00 €

tax excl.

Quantity

Cable Length

Add to wishlist

General
Specifications
Data sheet
Download
Accessories

The Sensor measures:	Temperature

SQUIRREL ACCESSORIES Download (2.03M)

Everything you need...

OMK610 Paint Oven Profiling System
2 440,00 €

Add to cart
Through Process...

OMK610-NP Food Through Process Monitoring System
2 440,00 €

Add to cart

Suitable for use with all substrate materials (ferrous, non-ferrous, plastics, composites etc.)

A wide range of K-Type temperature probes is available with a choice of 1.5m (4'9'), 3m (9'8') or 6m (19'7') cable lengths. The OMK610 can be used with a combination of up to 6 probes simultaneously.

Perfect contact between probe and surface
Low mass and optimised shape to avoid influence on temperature of the sample
Extremely strong, highly flexible and easy to clean Teflon® coated cables

All probes have a continuous maximum temperature of 250ºC (428ºF).

PROBES
Description		Part Number / Cable Length
Description		1.5m (4'9')	3m (9'8')	6m (19'7')
	Air probe with clamp PTFE coated, triple insulated cable	CAP-K-G1.5-3	CAP-K-G3-3	CAP-K-G6-3
