T3110 Temperature and humidity outdoor, indoor probe with 4-20mA output

T3110

Comet System

New

Temperature and humidity outdoor, indoor probe with 4-20mA output

Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

270,00 €

tax excl.

Add to wishlist

Programmable temperature and humidity transmitter is equipped with temperature and relative humidity sensors. Measured values are also converted to other humidity interpretation - dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy. Degrees Celsius and Fahrenheit are user selectable. Transmitter contains a microprocessor based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh. Humidity transmitters is equipped with two galvanic isolated 4-20mA outputs. Configuration of outputs and output range are user adjustable. Large dual line LCD for simultaneous display of T+RH or other humidity interpretation is an advantage. Display is possible to switch off. Computerized design ensures temperature compensation of the humidity sensor and fail indication. State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation. Transmitters are designed for use in non-aggressive environment.

APPLICATIONS - measuring and control of air humidity at:

  • building HVAC management
  • building HVAC automation
  • warehouses
  • glasshouses
  • manufacturers
  • museums, archives, galleries
  • air-conditioned rooms
  • weather stations

Transmitters are approved and homologated by
RENAULT and by PSA (PEUGEOT / CITROEN) car manufacturers.

Outputs are set to maximum range from the manufacturer (-30 to +80°C, 0 to 100%RH).
To set other range by the user buying of SP003 cable is necessary - see Optional accessory.
Free configuration program TSensor for transmitter adjustment is ready to download anytime.

If different adjustment of outputs is required, please specify required output values (RH, T, Tdp, ..) and required ranges in the order. Adjustment is free of charge.

Any measured value - temperature, relative humidity, dew point temperature, absolute humidity, specific humidity, mixing ratio or specific enthalpy can be assigned to each output of the transmitter. Also identical value can be assigned to both outputs.

Ordering example: Transmitter T3110, output 1: RH 10 to 90%, output 2: temperature 0 to 35°C

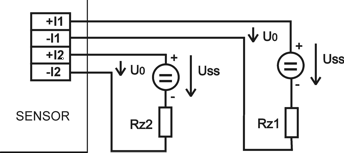

 Application wiring of the humidity transmitter

Typical application wiring of dual output transmitter

Calculation of minimum power voltage Uss for proper operation:
Uss min> Uo min + Imax * Rz,
where: Uo min= 9 V
Imax... approximately 20 mA
Rz... sensing resistor (shunt)
Both current loops (I1 and I2) are connected analogically, current loop I1 must be always connected.

Technical parameters

Value

Output

4-20mA

Measured Value

Relative Humidity + Temperature

Construction Type

Ambient Air

Design

Industrial

Temperature Measuring Range

-30 to +80°C

Relay Output

No

Two-State Input

No

Lcd Display

Yes

PoE

No

Relative humidity range

0 to 100%

Accuracy of relative humidity measurement

±2.5% relative humidity from 5 to 95% at 23°C

Accuracy of temperature output

±0.4°C

Available temperature units

degrees Celsius, Fahrenheit

Accuracy and range of dew point temperature output - for more details see graphs

±1.5°C at ambient temperature T<25°C and RH>30%
range -60 to +80 °C

Accuracy and range of absolute humidity output

±1.5g/m3 at ambient temperature T < 25°C
range 0 to 400 g/m3

Accuracy and range of specific humidity output

±2g/kg at ambient temperature T < 35°C
range 0 to 550 g/kg

Accuracy and range of mixing ratio output

±2g/kg at ambient temperature T < 35°C
range 0 to 995 g/kg

Accuracy and range of specific enthalpy output

±3kJ/kg at ambient temperature T < 25°C
range: 0 to 995 kJ/kg

Temperature operating range

-30 to +80°C

Temperature operating range of LCD display

readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C

Range of humidity sensor temperature compensation

all temperature range

Current outputs - two-wire connection

4-20mA, galvanic isolated

Configuration of outputs and output range

user adjustable from the PC

Filtering ability of sensor cover

0.025mm - filter with stainless steel mesh

Protection of the case with electronics

IP65 electronics, IP40 sensors

Power

9-30Vdc

Dimensions

88.5 x 170 x 39.5 mm (W x H x D), stem length 75 mm

Weight

approximately 150g

Warranty

2 years

cable for transmitter adjustment via USB port
code: SP003
cable for transmitter adjustment via USB port
Tool for easy connection to WAGO terminals 236 for analog output transmitters
code: SP005
Tool for easy connection to WAGO terminals 236 for analog output transmitters
plastic sensor protection with stainless filter (gray)
code: F5200
plastic sensor protection with stainless filter (gray)
PTFE sensor protection, white
code: F5300
PTFE sensor protection, white
sintered bronze sensor cover
code: F0000
sintered bronze sensor cover
Vessel for adjustment and calibration of humidity
code: MD046
Vessel for adjustment and calibration of humidity
Humidity Standard 10%RH, set 5pcs
code: HM023
Humidity Standard 10%RH, set 5pcs
Humidity Standard 80%RH, set 5pcs
code: HM024
Humidity Standard 80%RH, set 5pcs
Female connector ELKA 4012PG7 for TxxxxL
code: K1427
Female connector ELKA 4012PG7 for TxxxxL
Transmitter version with watertight male connector
code: TxxxxL
Transmitter version with watertight male connector
