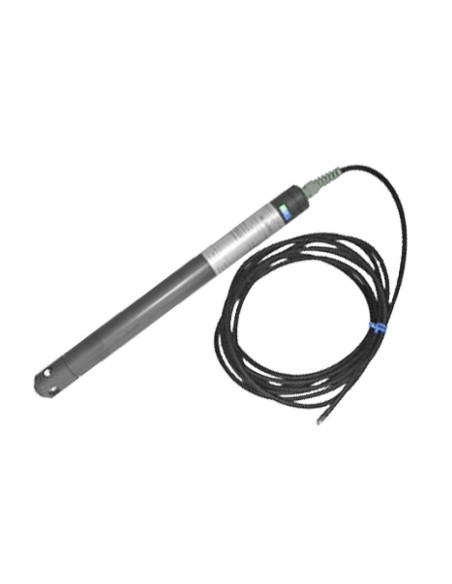

WMP4 Multiparametric Sensor (Ph, Level, Temperature, Conductivity) View larger

WMP4 Multiparametric Sensor (Ph, Level, Temperature, Conductivity)


Nesa srl


  • Measure up to 4 parameters simultaneously (Ph, level, temperature, conductivity)
  • pH 0÷14, level 0÷20m, temperature -5 ÷ +60 ° C, 0÷6000 mS conductivity (0 ÷ 60.000μS autorange ),
  • Suitable for clear water or fresh and marine water low turbidity
  • RS485. (USB interface option for PC or data logger)
  • Working conditions -5 ÷ +60°C, max 3 bar
  • Easy to clean and maintain
  • Power supply: 10.8÷16Vdc max 30mA@12Vdc

3 990,00 €

Add to wishlist

The Sensor measures: Multiple Parameters
Output Signal: RS485
Cable Length: 30m
Power Supply: 12 V
Sensor for use in: Water Quality

The WMP4 probe has been developed for the monitoring of aquifers, rivers, basins, landfills or waters, however transparent or semi-transparent.

It allows at the same time to carry out a comparative analysis of various parameters, concurring to real-time reading, local storage or file transfer to a data storage center, through the NESA mod dataloggers via GSM , GPRS, UMTS, or via satellite.
Easy to use in measurement campaigns or in continuous mode, thanks to an RS485 interface and a web program that allows you to transform your PC into an easy data logger.

You can manage the data acquisition system continuously, or at specific programmable intervals.


- Multiparametric probe in PVC ø42mm for water quality analysis, with these measures (4): Level, Temperature, Conductivity, pH.
- Max depth measurable: 20m.
- Complete of 30m shielded self-supporting cable with inside barometric compensation tube.
- External power supply 12Vdc.
- Out protocol: RS485.
- Datalogger excluded.
- Complete of Calibration Report.
- (On Portable configuration, includes S/USB interface and IP68 AMP connector).
