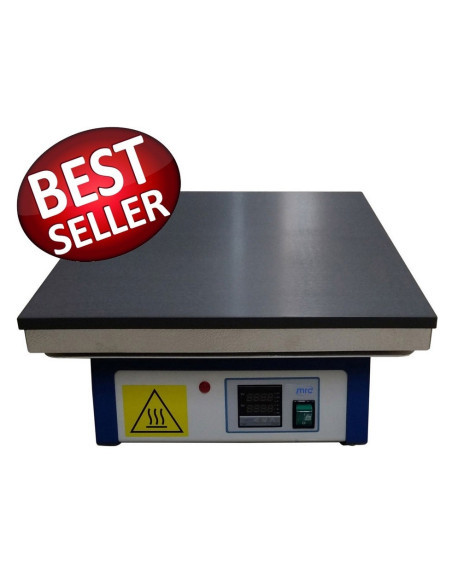

HP-400 Laboratory Digital Hotplate 400 x 400mm, 370ºC

HP-D Series Digital & Programmable Hotplates, Aluminium Top.

► Temperature can be displayed in °C or °F.
► Digital timer & ramp to temperature function (HP-1D only)
► Digital set-point and read-out of actual temperature.
► PID microprocessor controller provides precise temperature regulation all over the temp. range, include the low temp close to the ambient.
► Temperature may be controlled either at the plate surface by internal sensor,or at the sample by a
Thermocouple Immersion probe.
► Safety: in the event of broken sensor, power to the heater is shut-down.
► Temperature range: above ambient to 300°C (optional 400°C).
► Chemical resistant top plate, easy to clean.
► Excellent heat conduction distributes the heat evenly & uniformity over the entire heating surface.
► Pilot lamp indicates when heat is on.
► Special radiation shields keep apparatus relatively cool during continuous operation.
► Support device at the rear of the base.
► Option: External temp. sensor 200mm length, 3.2mm diameter.

► Digital Laboratory hotplate 400x400mm, 370 ºC
► Temperature range: up to 370°C.
► Temperature can be displayed in °C or °F.
► Top plate size: 400x400mm
► Temp. stability: ±1°
► Dimensions: W400xH150xD400mm
► Digital set-point and read-out of actual temperature.
► 220 volt, 3000 watt

● Distillations, extractions and digestions
● Heat aqueous reagents
● Semiconductor baking
● Acid/Base digestions - trace metal analysis. etc.
● Sample drying
● General reagent heating
● Heating TLC plates
● Evaporations
● Warning/curing applications-pastes, adhesives, and solder
● Viscosity studies
● Reaction optimization
● Solubility studies
● Safety thermostat.
