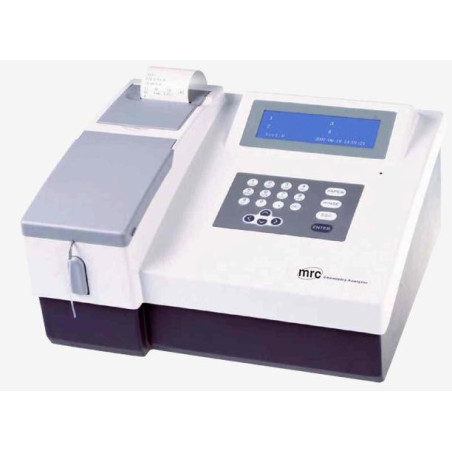

SACA-19900 Semi-Automatic Chemistry Medical Analyzer

Reference SACA-19900

Manufacturer: MRC

Condition: New

Principle: Absorbance.

Absorbance Range: -0.500 ~ 3.500Abs

It can perform sample analysis of serum, plasma, whole blood and urine, etc.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
Data sheet
Download

Instrument for:	Medicine/Veterinary Analyzer
Parameters Measured	Serum, plasma, blood and urine, etc.

MEDICAL-ANALYZERS-MRC Download (1.91M)

SACA-19900-OPR Download (769.22k)

Easy keypad operation with LCD display

● Continuously adjustable grating, enhances the stability and reliability of result
● Reagent open system supports flow cell and cuvette mode, close system on request
● Analytical modes include kinetic, fixed time, bichromatic end point with or without reagent blank or sample blank, linear or non-linear calibration curves
● Powerful QC program: Westguard multi-rule, Levey-Jennings plots,2 controls per test
● Large memory, up to 204 protocols and 5400 results can be stored
● Additional recloser design with lamp saving
● Powerful internet connection enables remote data sharing & OS update
● Compact design enables USER-DIY maintenance
● Multi-language software available on request.

Model	SACA-19900
Principle	Absorbance
Absorbance Range	-0.500 ~ 3.500Abs
Resolution	0.001 Abs (displayed), 0.0001Abs (calculated)
Light Source	Halogen lamp
Wavelengths	Continuously adjusted grating, wavelength range is 330 - 800nm, 1nm by step adjustment
Wavelength Accuracy	± 1nm
Band Width	< 6nm
Flow cell	Metal - quartz flow cell
Temperature Control	25°C,30°C,37°C,±0.1°C and ambient temperature
Aspirate Volume	0~3000µl
Carryover	< 1%
Memory	Up to 204 protocols and 5400 results can be stored
Display	LCD display
Interface	RS-232
Output	Built-in printer, or external printer (optional)
Power Supply	AC 110V - 220V ± 10%, 50-60Hz
Net Weight	8KG
Dimensions (mm)	L360xW318xH185
