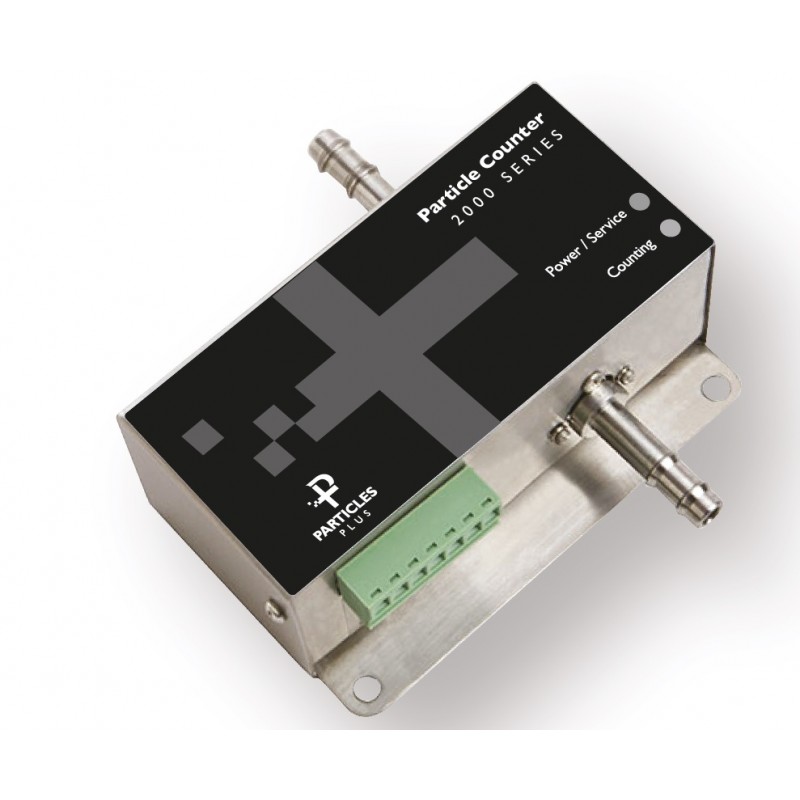

Series-2301 Remote Airborne Particle Counters (0.3 - 0.5 µm @ 0.1 CFM)

Reference Series-2301

Condition: New

Models 2301-1 and 2301-4

The Particles Plus 2301-1 Remote Particle Counter measures 0.3 μm and 0.5 μm with a flow rate of 0.1 CFM (2.83 LPM). The Particles Plus 2301-4 Remote Particle Counter measures 0.3 μm, 0.5 μm, 1.0 μm & 5.0 μm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus RTU or ASCII. The 2000 Series is the smallest remote particle counter on the market and has easy mounting options. The Particles Plus 2301 units comply with ISO 21501-4 and include a 2 year limited warranty.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
Data sheet

Type of Instrument	Particles in Air Monitor
The instrument measures:	Optical Particle Counting
Instrument for:	Particles in the Air
Function:	Research-Industrial-Health

Particles Plus 2301-1:

The Particles Plus 2301-1 Remote Particle Counter measures 0.3 µm and 0.5 µm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus RTU or ASCII. The 2000 Series is the smallest remote particle counter on the market and has easy mounting options. The Particles Plus 2301 units comply with ISO 21501-4 and include a 2 year limited warranty.

Measures 0.3 µm and 0.5 µm

0.1 CFM (2.83 LPM) flow rate with onboard pressure loss alarm

Long life laser diode technology

World's smallest 0.1 CFM remote particle counter

Measures 2 channels of simultaneous data.

MODBUS™ RTU or ASCII Outputs

Connect using RS485 or RS232

Concentration limit of 500,000 per ft³

LED Status Indication

Complies with ISO 21501-4 and JIS B9921 standards

Seamless integration into a facility monitoring system

Light weight stainless steel enclosure

2 year warranty. Extended warranties available

Particles Plus 2301-4:

The Particles Plus 2301-4 Remote Particle Counter measures 0.3 µm, 0.5 µm, 1.0 µm & 5.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus RTU or ASCII. The 2000 Series is the smallest remote particle counter on the market and has easy mounting options. The Particles Plus 2301 units comply with ISO 21501-4 and include a 2 year limited warranty.

Measures 0.3 µm, 0.5 µm, 1.0 µm and 5.0 µm
