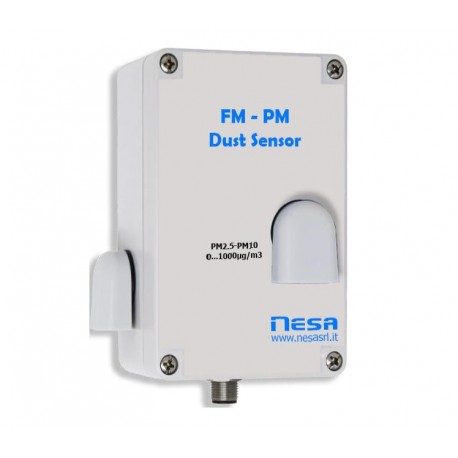

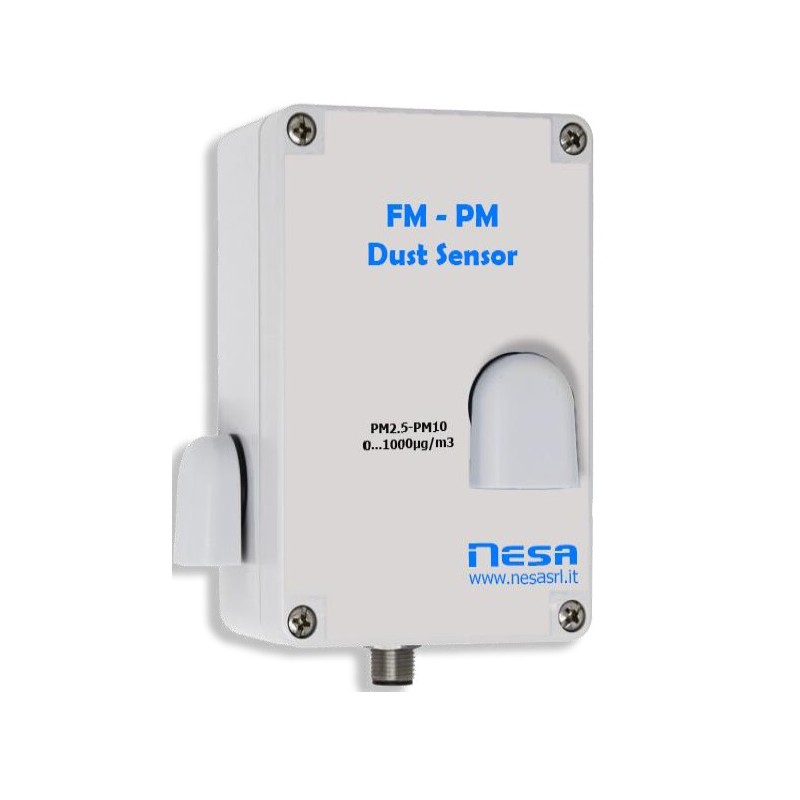

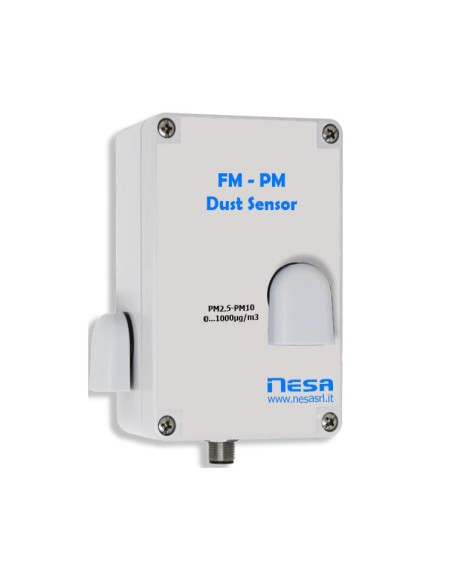

FM-PM-B, PM2.5- PM10 fine dust sensor, range 0 ÷ 1000 μg / m3 (4-20mA or RS485 outputs)

New

PM2.5- PM10 fine dust sensor, range 0 ÷ 1000 μg / m3. Measurement according to the laser diffusion principle, which doesn't require maintenance, and offers an accurate and repeatable measurement (4-20mA or RS485 outputs)

Measurements are made according to the laser diffusion principle that does not require maintenance and offers accurate and repeatable measurements.

1 265,00 €

Add to wishlist

FM-PM it is an instrument for measuring particulate matter. This is a mixture of solid and liquid particles in the air that can cause health problems.

International standards consider particles with diameters less than 10μm (PM10) to be dangerous to humans. However, measuring particle concentration is not an easy measure because it can vary depending on the position and point of measurement.

Measurements is carried out by the principle of laser diffusion which does not require maintenance and offers an accurate and repeatable measurement.

The sensor is available with analog or digital signal output.

 Fast measurement of PM1.0 concentration, PM2.5 and PM10
 Laser scattering principle
 Does not require maintenance
 Compact structure
 Low power, perfect for smart city applications
 Programmable measurement rate
 Compliant CE
