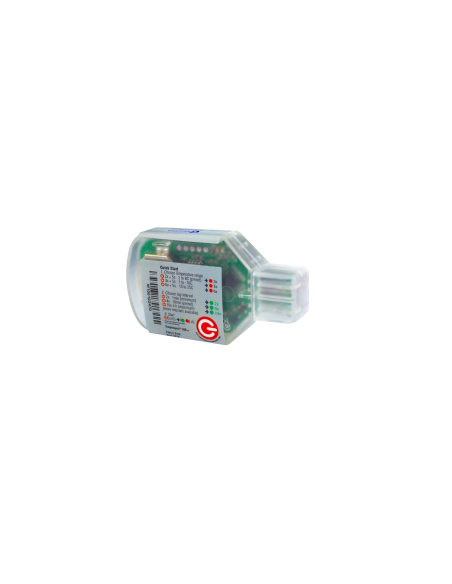

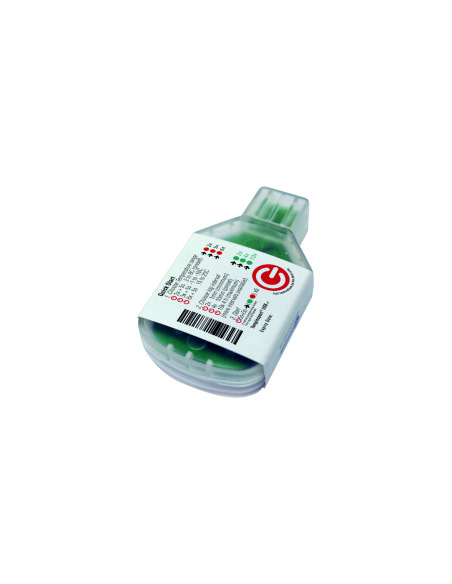

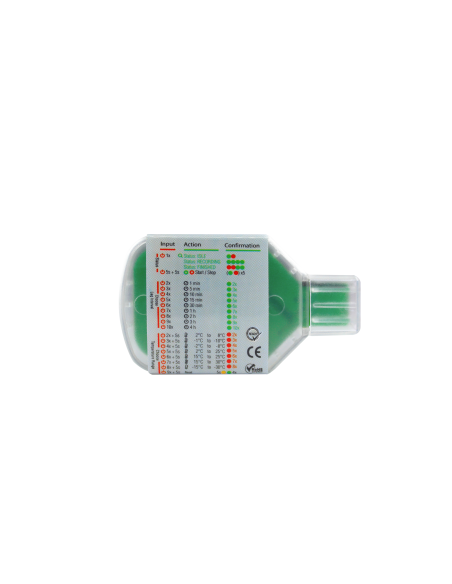

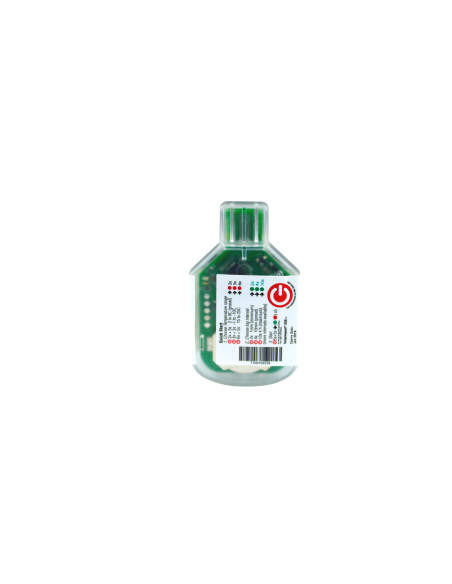

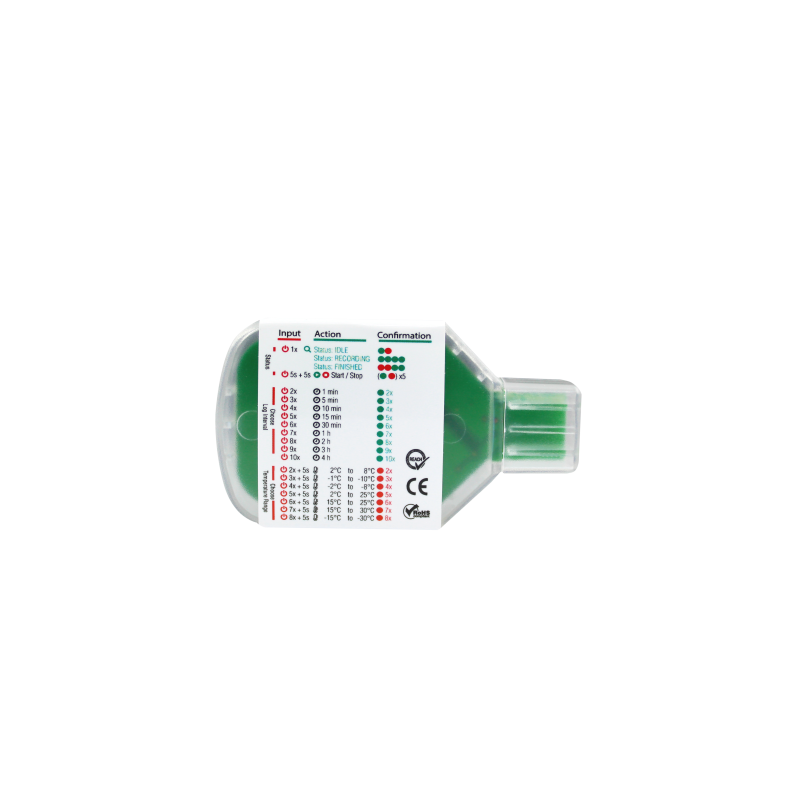

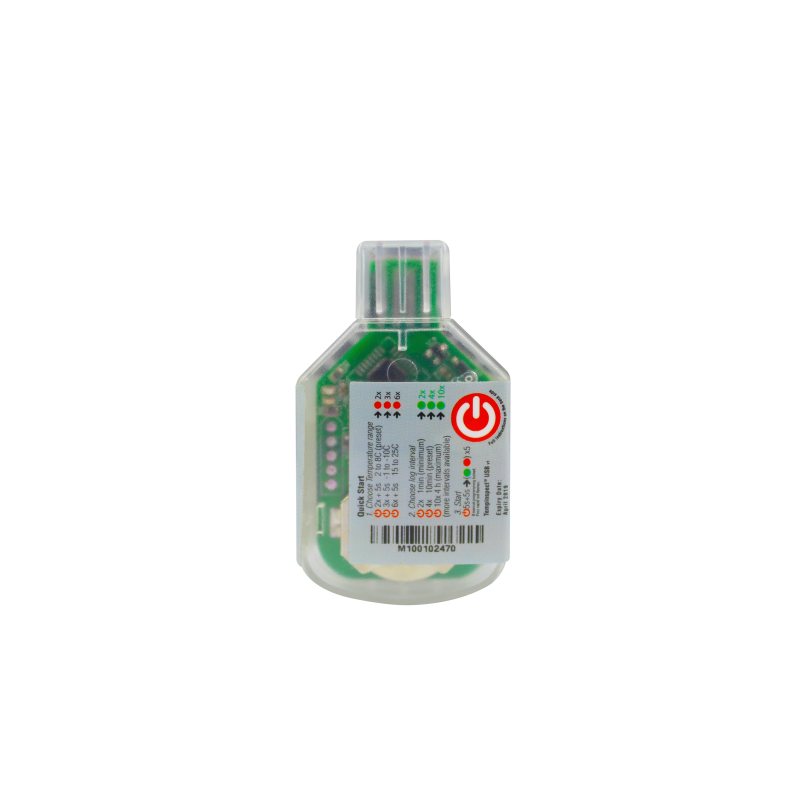

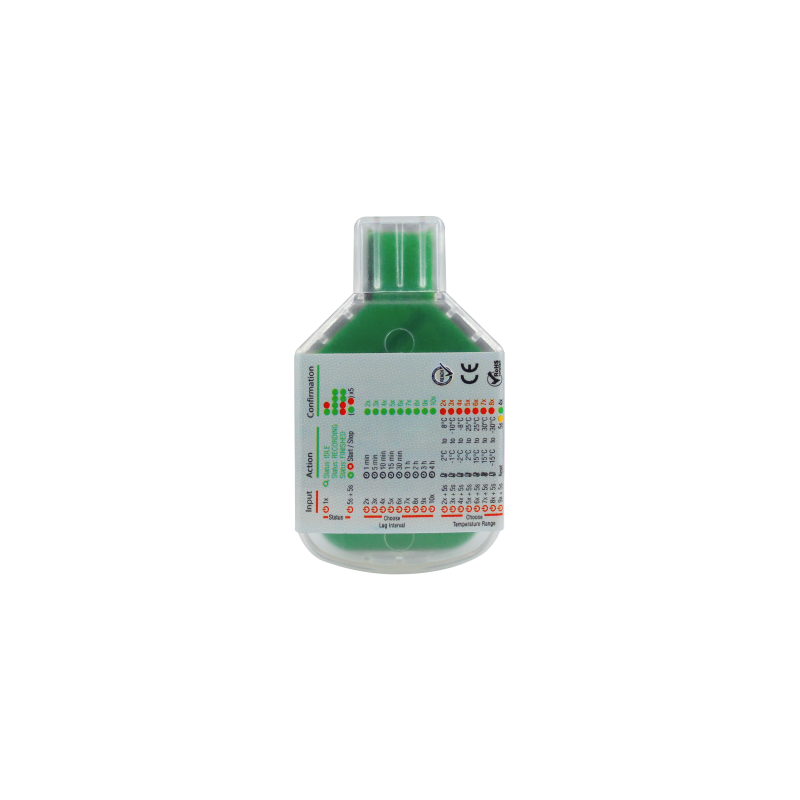

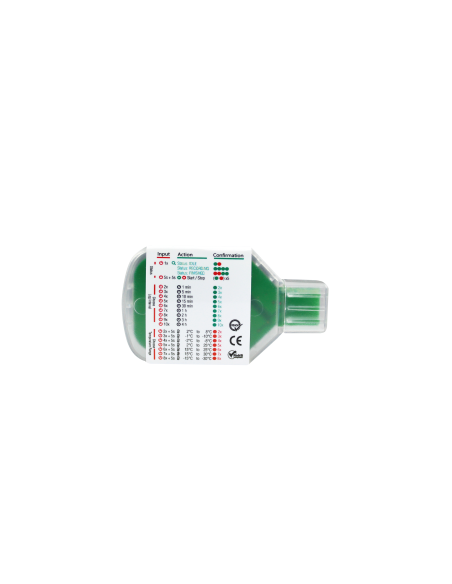

Tempinspect USB Temperature Recorder

AO-Temp-USB

New

The Tempinspect™ USB is a remarkably accurate and reliable temperature logger that can be used throughout the entire supply chain. Easy to use and deploy, its 2-color led light supplies mission-critical data on-site that can be further analysed on any computer with a USB port.

Add to wishlist

The Tempinspect™ USB can be configured and launched using its multi-function button, without need of further logistics. Knowing if the cold chain has been maintained has never been easier or more convenient.

Rugged and robust, the Tempinspect ™ USB can reliably record up to 30000 temperature measurements over a period of up to 1 year. Its simple operation, reduced size and splash resistance (IP65), allows it to take on a wide variety of missions throughout the supply chain.

The Tempinspect™ USB can be implemented preconfigured or can be easily configured on the site by the user.

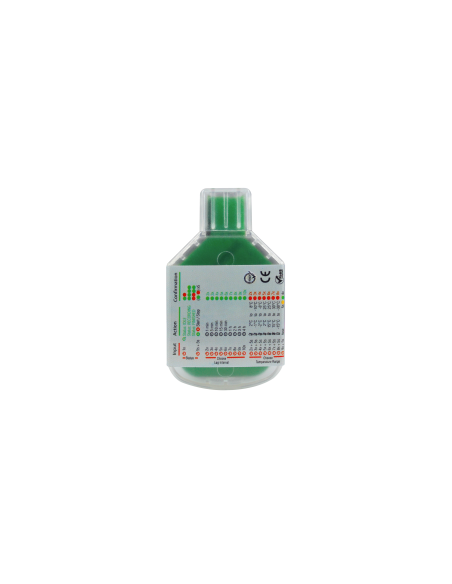

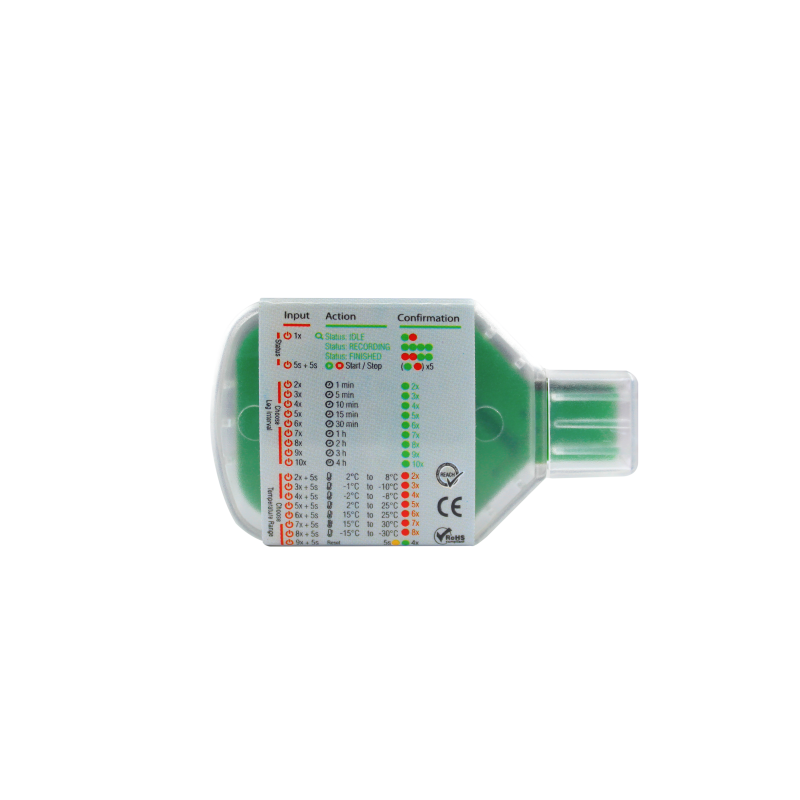

  • - Temperature range configurable by the user: 7 preset temperature ranges to choose from cover the entire range of cold chain monitoring from vaccines to fresh products.
  • - Data logging intervals configurable by the user: the unit can be configured to record temperature readings with a frequency of every minute and as far as every 4 hours.
  • - Visual alarms: the Tempinspect ™ USB data recorder can report temperature excursions during missions. It will flash in red once for each temperature excursion over the selected range, with a duration equal to the selected time interval. The unit will flash double red for excursions under the selected range. Example: a unit configured to record every ten minutes will report a temperature excursion of 30 minutes below the set range with 3 double red flashes.
  • - PDF / CSV report: at the end of the mission (once the user stops recording), the unit will automatically generate a report when it is inserted into the USB port of any PC with Windows, Osx or Linux. The user can obtain a PDF graphic and a CSV file with all the data registered by the unit.


Once the logistics of the cold chain of a product is finished, the data logger must be stopped before being able to insert it into a USB port and have access to a complete report about the PDF file and the CSV file.

The user has the flexibility to customize the functions from the measurement times to the temperature range setting and this advantage is that you can have a data logger and, depending on what you send, you can customize it according to your needs without having to buy different recorders for different products However, the data logger will come with a factory configuration that the user can then change if necessary in a very simple way. Quality, competitiveness and flexibility for the customer is our goal.


Accuracy and reliability
Tempinspect ™ USB has an accuracy of up to +/- 0.1 ° C. It is CE, Rohs and Reach certified.


Highly customizable
The user can configure the USB Tempinspect ™ in seconds. The temperature range and the frequency of the measurements are fully customizable.


Single or multiple use options available

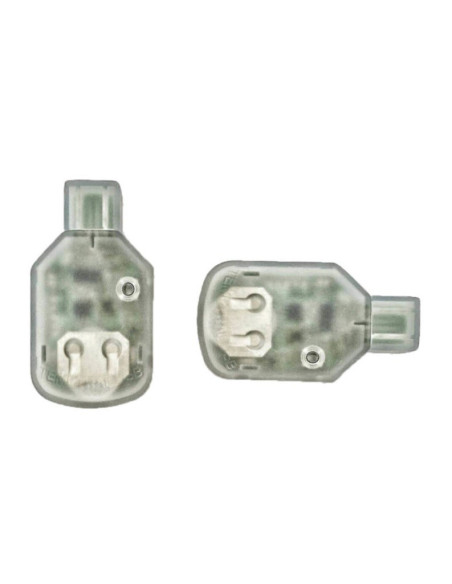

The Tempinspect ™ USB comes in single or multiple use variants. Both share the same precision, battery life and reliability.


Ready for USB
The Tempinspect ™ USB can be connected to the USB port of any computer, allowing the user to download all data in PDF (table + raw data) a csv file or an Excel spreadsheet.

Cost savings
Discover how much money
you can save Tempinspect ™ USB
is competitive, accurate and
It can be customized by the user.

Tempinspect™ USB Single Use Data Logger
Data logger type Single-Use
Temperature range -30°C to +70°C (-22°F to 158°F)
Accuracy ±0.10°C (+35.8 °C to +41 °C)
±0.13°C (+20.0 °C to +70.0 °C)
±0.25 °C (–40 °C to +125 °C)
Storage capacity 30,000 measurements
Battery life Minimum 1 year up to 2 years.
Standard measurement interval (configurable) 1 minute, 5 minutes, 10 minutes
15 minutes, 30 minutes, 1 hour
2 hours, 3 hours, 4 hours
Other (factory custom)
Recording time Minimum 1 year up to 2 years.
Startup method Manual start
Stop method Manual stop or automatically when full
Protection class IPE65 (splash-proof)
Dimensions 65mm x 38mm x 16mm [L x W x H]
Weight approx. 20g
Automatic report PDF (chart + raw data) and CSV
Certifications CE, ROHS, Reach
PC connection USB 2.0, Type A
Exception alarm Yes

Tempinspect™ USB Multi-Use Data Logger
Data logger type Multiple-Use data logger
Temperature range -30°C to +70°C (-22°F to 158°F)
Accuracy ±0.10°C (+35.8 °C to +41 °C)
±0.13°C (+20.0 °C to +70.0 °C)
±0.25 °C (–40 °C to +125 °C)
Storage capacity 30,000 measurements
Battery life Minimum 1 year up to 2 years.
Standard measurement interval (configurable) 1 minute, 5 minutes, 10 minutes
15 minutes, 30 minutes, 1 hour
2 hours, 3 hours, 4 hours
Other (factory custom)
Recording time Minimum 1 year up to 2 years.
Startup method Manual start
Stop method Manual stop or automatically when full
Protection class IPE65 (splash-proof)
Dimensions 65mm x 38mm x 16mm [L x W x H]
Weight approx. 20g
Automatic report PDF (chart + raw data) and CSV
Certifications CE, ROHS, Reach
PC connection USB 2.0, Type A
Exception alarm Yes
Reusable option Yes
