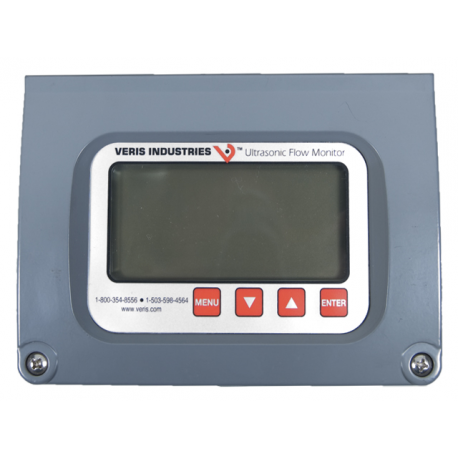

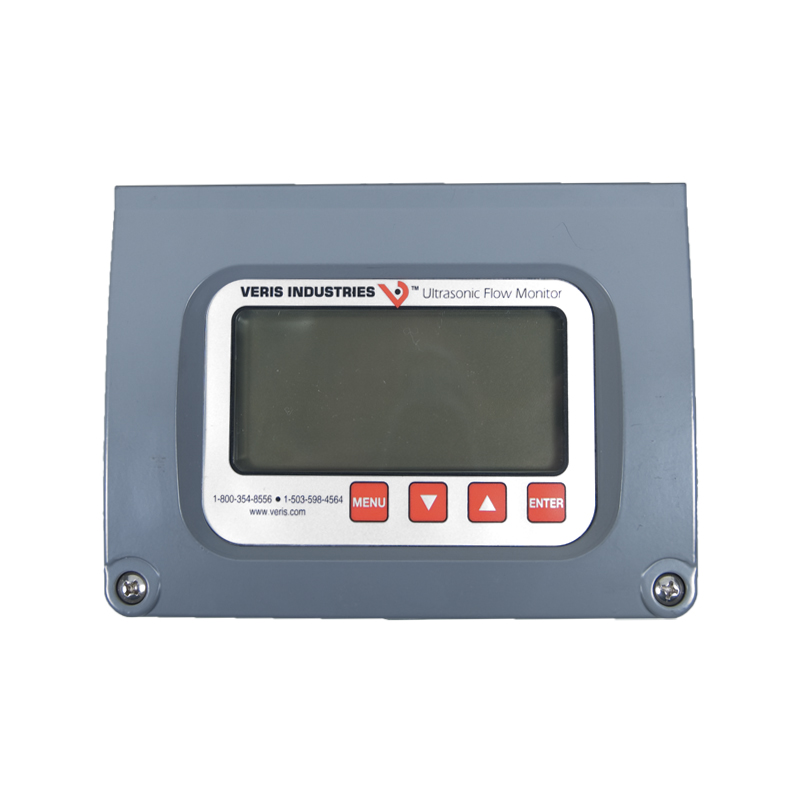

FSR1AK1X Ultrasonic Flow and energy metering systems 4-20mA

Ultrasonic flow and energy metering systems clamp onto the outside of pipes without contacting the internal liquid. The technology has many advantages over other products including los-cost installation, no pressure head loss, no moving parts to maintain or replace, excellent fluid compatibility, and a wide bidirectional measuring range that ensures reliable readings even at very low and very high flow rates. Veris ultrasonic metering products are available in a variety of configurations that permit selection of an ideal system, no matter what the application.

The monitor is available in two versions: standard flow and energy flow versions. Energy versions are used in conjunction with dual clamp-on or insert RTD temperature sensors. The energy flow meter calculates energy usage in BTU or tons, and it is ideal for retrofit, chilled water, and other HVAC and building automation applications.

• Flow meter output: Analog 4-20mA, Modbus, frequency
• Power AC: Fused, 95-264VAC, 47-63 Hz at 17 VA max. Reverse polarity and transient supression protected
• Display 2 line backlit LCD
• Engineering Units (user configured) Rate: Gal, liters, million fal, ft³, m³, acre-ft, oil barrels (42 gal), liquor barrels (31.5 gal), ft, m, lb, kg, million gal, ft³, m³, acre-ft, oil barrels (42 fal), lb, kg
• Ambient conditions -40° to 85°C (-40° to 185°F), 0-95% RH (noncondensing)
• Response time (flow) 0.3 to 30 sec, user configured, for 10% to 90% step change in flow
• Security Keypad lockout, user selected 4-digit password code
