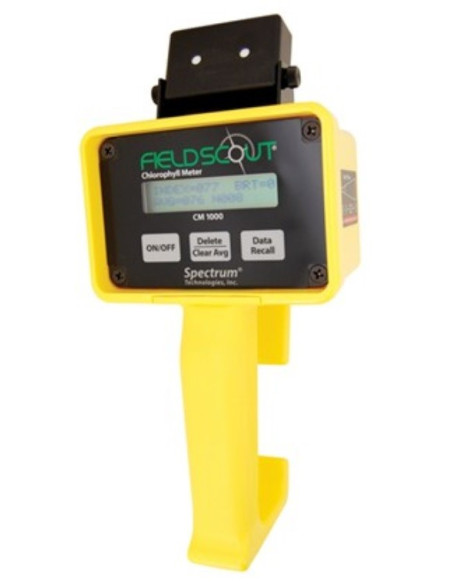

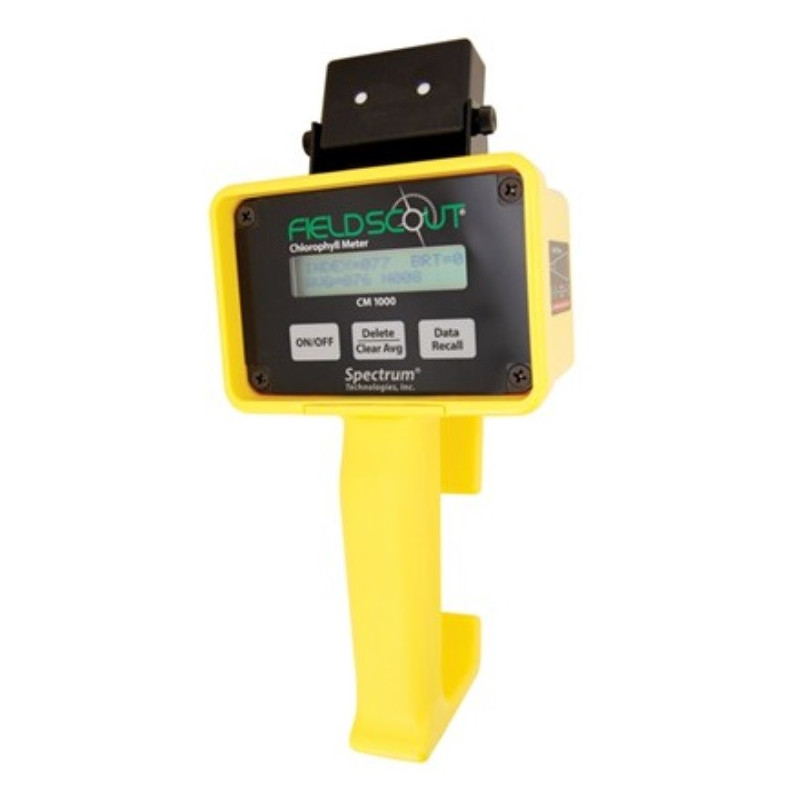

CM1000 FieldScout portable Chlorophyll Meter

CM1000

Spectrum Technologies

New

"Point-and-shoot" technology to instantly measure relative chlorophyll content

  •      Detects stress earlier than visual monitoring
  •      Technology based on an exclusive patent license from NASA
  •      Laser guides outline the edges of the measured sample area
  •      Calculates and displays a running average for multiple readings
  •      Connects to any GPS receiver that has a serial output option *
  •      Equipped with internal data logger and RS-232 port
  •      Records 3,250 measurements (1,350 with added GPS / DGPS option)
  •      Configure and download meter with FieldScout® software (not included) **

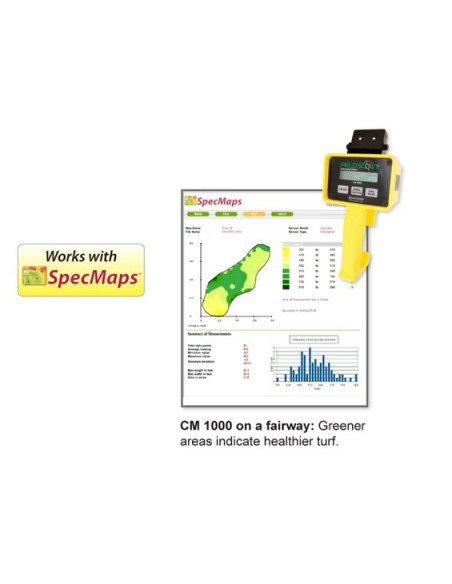

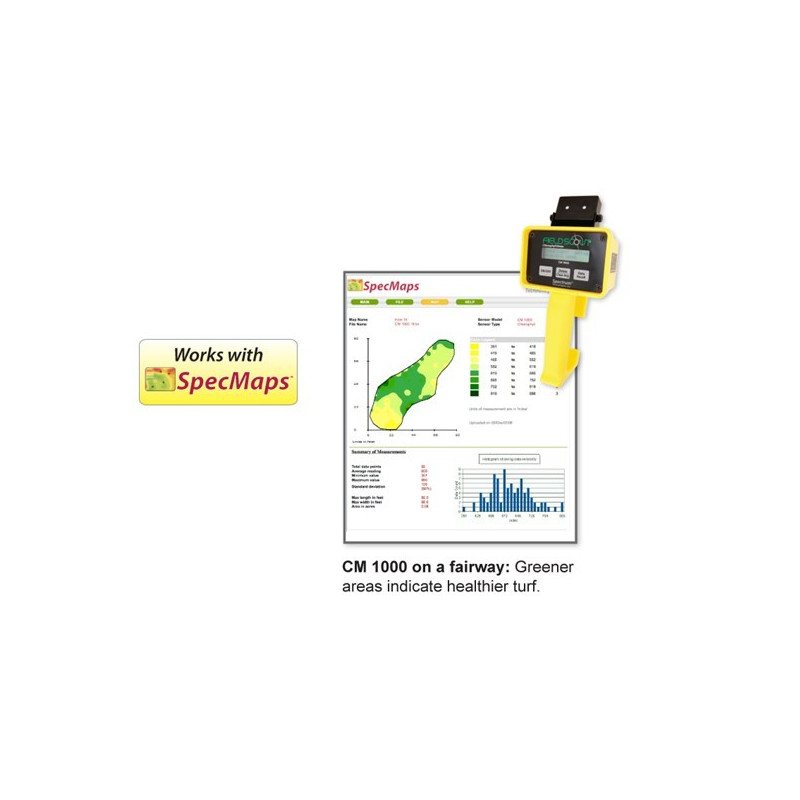

  •      Compatible with SpecMaps ™ online web-mapping application
  •      Includes hard carrying case and batteries

2 790,00 €

Add to wishlist

Type of Instrument Portable Chlorophyll Meter
The instrument measures: Chlorophyll

The FIELD SCOUT CM1000TM Chlorophyll Meter senses light at wavelengths of 700 nm and 840 nm to estimate the quantity of chlorophyll in leaves. The ambient and reflected light at each wavelength is measured. Chlorophyll a absorbs 700 nm light and, as a result, the reflection of that wavelength from the leaf is reduced compared to the reflected 840 nm light. Lighthaving a wavelength of 840 nm is unaffected by leaf chlorophyll content and serves as an indication of how much light is reflected due to leaf physical characteristics such as the presence of a waxy or hairy leaf surface.

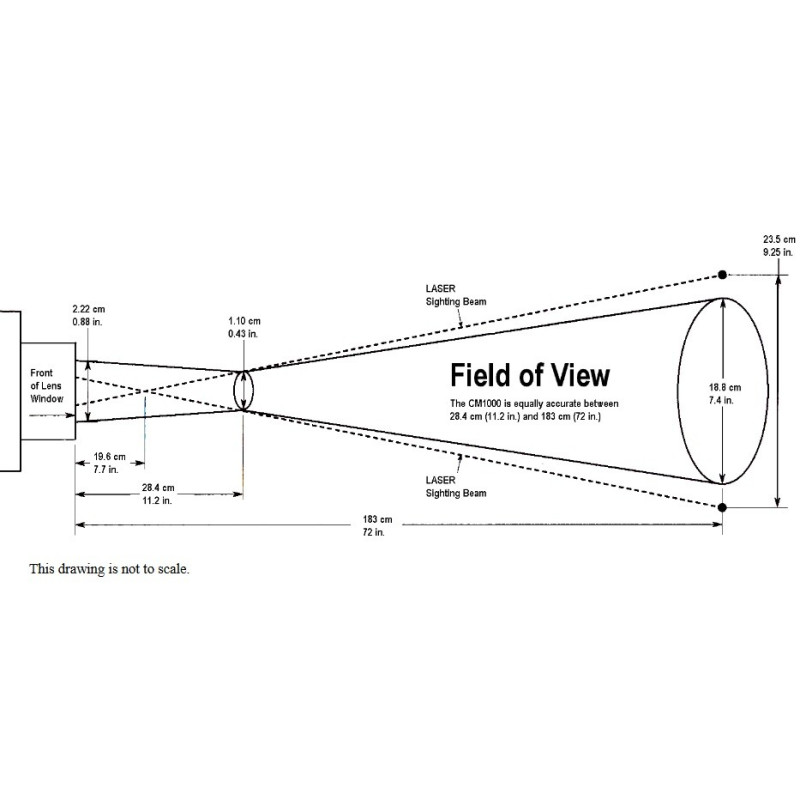

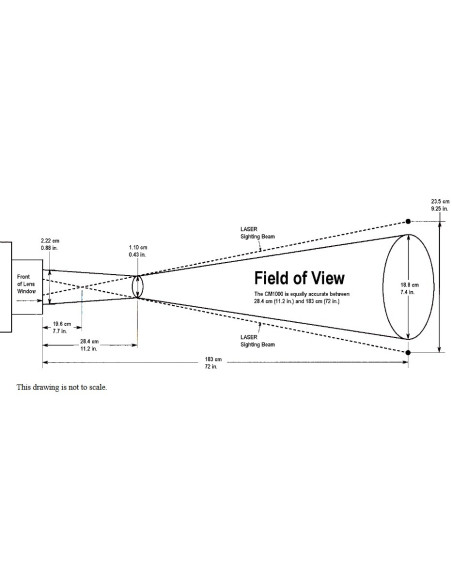

  • Lasers define the target as the trigger is pressed. At a distance of 11.2 inches (28.4 cm), the field of view is 0.434 inches (1.10 cm) in diameter. At a distance of 72 inches (183 cm), the field of view increases to 7.4 inches (18.8 cm) in diameter.
  • A chlorophyll index value (0 - 999) is calculated from the measured ambient and reflected light data.

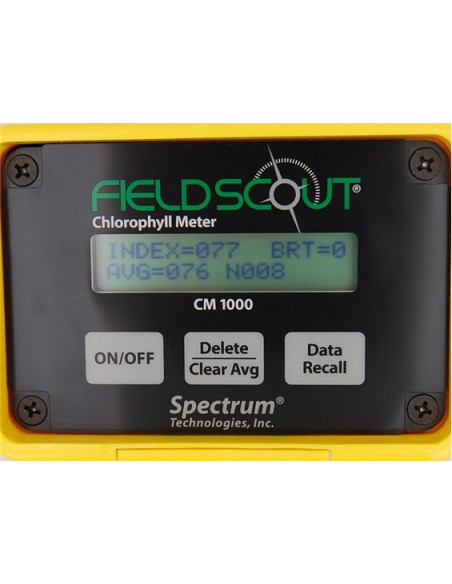

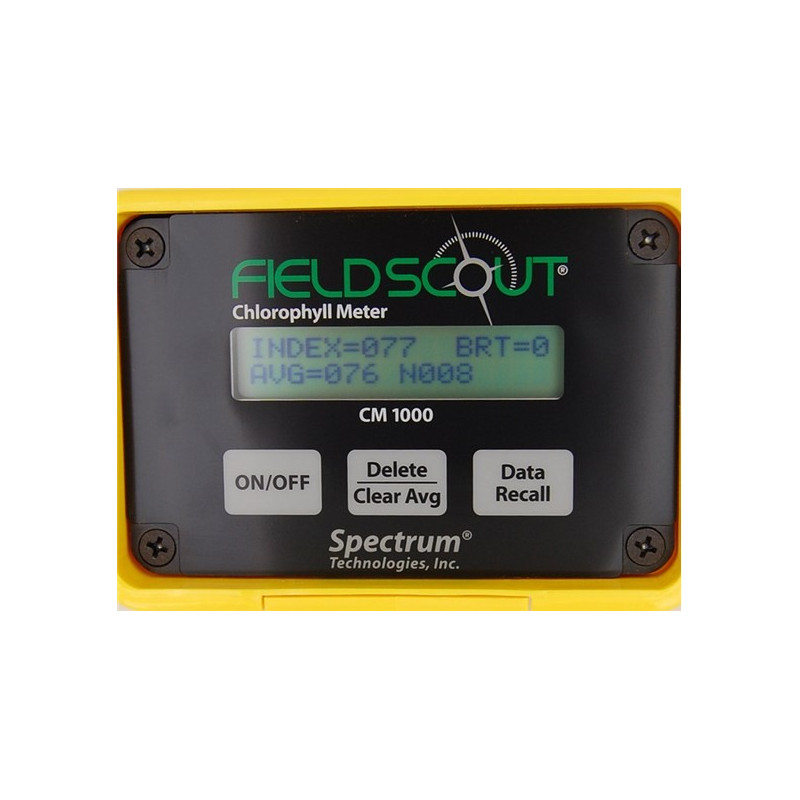

  • The number of samples taken and a running average of chlorophyll index values is displayed.
  • Ambient light level is displayed on a scale of 0 to 9.
  • The optional data-logging system records the latitude and longitude (if GPS is used), the sample number, the individual chlorophyll index reading, and the value assigned to the ambient light level.
  • The recorded data is downloaded to your PC using the Field ScoutTM software included.
  • The data-logged files are comma-delimited text files and can be opened and worked with in any spreadsheet, graphing, statistical, or word processing program.

Measurement Sample: Individual plant leaves turf grass canopy

Measurement System: Reflectance of 700 nm and 840 nm light

Light Requirements: Natural sun light

Artificial light: 60 Hz AC tungsten or halogen powered by DC current, or use with 50 Hz AC (Europe)

Measurement Area: Conical field-of-view between 28.4 and 183 cm

Measurement Units: Index of relative chlorophyll content; 0 to 999

Logger Capacity 3250 readings without GPS/DGPS, 1350 readings with GPS/DGPS

Repeatability ± 5% of measurement

Weight 1.5 lbs. (0.7 kg)

Temperature Range: Operate in 32° to 104° F (0° to 40°C)

Power: Two AAA alkaline batteries, Approximately 3000 measurements

Environmental Sealing Dust-proof
