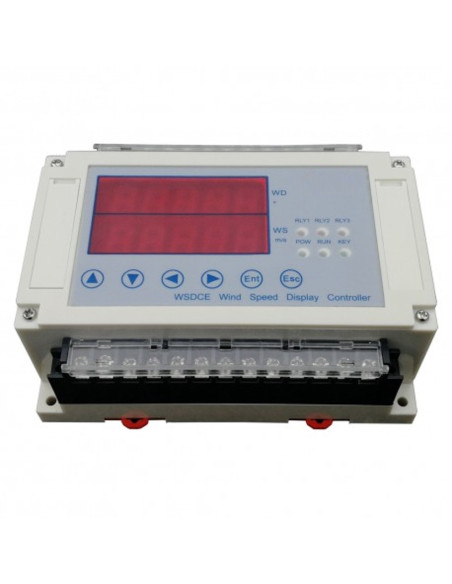

AO-WSDCE LED Controller For Wind Sensor

Reference AO-WSDCE

Condition: New

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS

The AO-WSDCE wind speed direction controller is plug-play and compatible with our ultrasonic anemometer, it can simultaneously display real-time wind speed and wind direction.

There are three alarm values that can be configured and correspond to three relay outputs that can be connected as NO or NC to activate the alarm signal or control another slave device.

In addition it also has two ways 4-20mA analog speed and wind direction signal output and one way RS485 digital signal output

The brightness of the LEDs is adjustable and the delay in the action of the relays is adjustable to flexibly meet various requirements

Technical parameters

screen	4 digits 7 Sec LED
Communication interface	RS485
Power supply	AC220V
Analog output	2 way 4-20mA output
Digital output	MODBUS-RTU trought RS485
Relay output	3 way relay outputs
Dimension	11mm * 55mm * 60mm (H * L * W)
PWeight	About 540g
