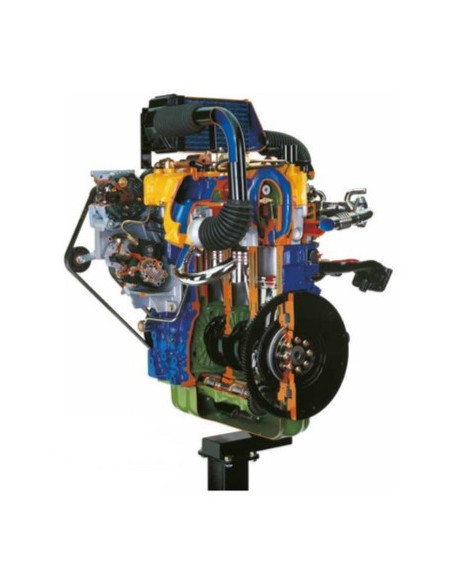

AE36010 16 Valve CHRYSLER Turbo Diesel Eengine with (Common–Rail) Intercooler (On Stand with Wheels) – Electrical

AE36010

Autoedu

New

Add to wishlist

Type Automobile-Autotronics

- 4 stroke engine; 4 in-line cylinders
- Displacement: 2500/2800 cu. Cm
- Power: 150-170 hp At 4000 RPM
- Twin overhead camshaft (DOHC) with timing belt
- 4 valves per cylinder
- Vibration-damping balancing shafts
- Common rail-type direct injection with electro-injectors
- Turbo-supercharger with air-air intercooler
- Alternator-oil filter-oil pump
- The engine operates electrically at 220 volts and run at a reduced speed to let the student easily understand and observe the operation of the various mechanical parts
- The cutaway engine model components are mounted on the stand with the wheels.
