MVCR2 Educational Diesel Engine with CR (Common Rail) System EURO 4

- Fully functional system
- Diagnosis through OBD 16 pole diagnostic socket
- Open contacts for measuring system components and circuits
- Fault code simulations

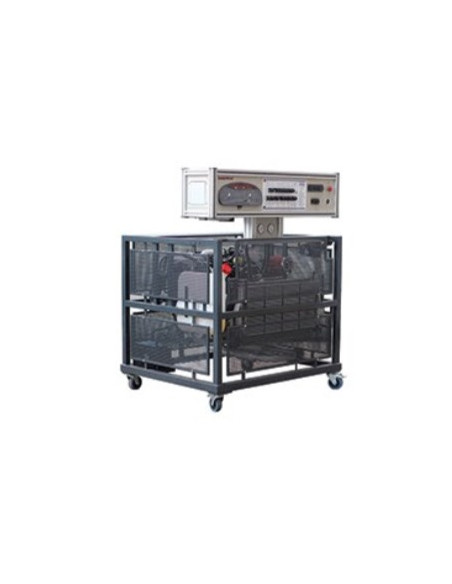

Self – contained, fully operational diesel engine model is installed in a mobile frame. This training engine is specially designed to demonstrate Common Rail diesel injection system and operational structure. The educational training engine is based on Renault original (refurbished) components with functional engine control system Bosch EDC 15.

• Diagnostic and measurement

Oscilloscope/multimeter
- System’s parameters are measured by connecting to the banana connector;
- Ability to measure electrical signal parameters of each system component (such as sensor or actuator);

Control unit diagnosis
- Diagnosis through OBD 16 – pin diagnostic connector
- Electronic control unit (ECU) identification
- Reading/erasing fault codes
- Displaying the operating system parameters (live data)
- Activating the actuators (Depends on the control unit)
- Throttle adaptation
- Control unit coding/configuration

- The educational functional engine model with CR fuel supply system, instrument cluster, cooling system, power supply system and the exhaust system;
- Completed with safety removable panels to protect against hot and rotating parts;
- Electric wiring diagram with built – in banana plug jumpers for measurements and simulation of system fault codes;
- Ability to simulate more than 20 faults by disconnecting Banana plug jumpers;
- Engine with external components is clearly visible after removing safety panels. Easy access to the engine and its components for service and maintenance;
- Integrated engine emergency stop button;

• Oscilloscope/multimeter

- System’s parameters are measured by connecting to the banana connector;
- Ability to measure electrical signal parameters of each system component (such as sensor or actuator);
