Nvis MCSxx Sensor Modules For Robotics & Embedded Platforms

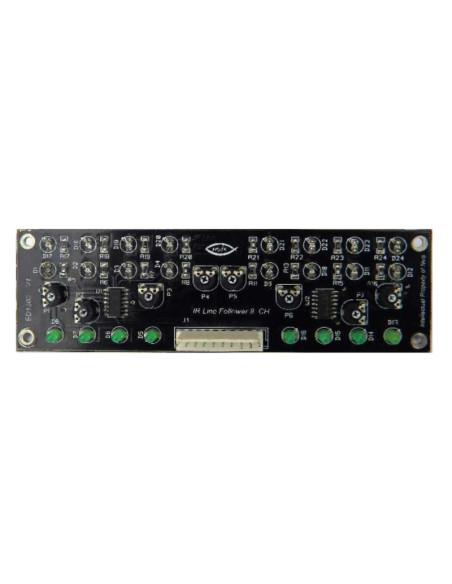

• Nvis MCS01 8-Channel IR Sensor:

- Applications:
      -- White line follower
      -- Black line follower
      -- Edge follower

- List of Accessories:
      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS02 IR Sensor


- Applications:
      -- White line follower
      -- Black line follower
      -- Edge follower
      -- Obstacle avoider
      -- Wall follower
      -- Micromouse

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS03 TSOP-IR Sensor

- Applications:

      -- White line follower
      -- Black line follower
      -- Edge follower
      -- Obstacle avoider
      -- Wall follower
      -- Micromouse

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS04 Fire Sensor

- Applications:

      -- Fire extinguisher
      -- Fire avoider

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS05 Light Sensor

- Applications:

      -- Photophobic Robot
      -- Phototropic Robot

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS06 Clap Sensor

- Applications:

      -- Sound activated/deactivated Robot.

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.

* Note: This module is compatible with Nvis 50XX, RoboCar Nvis 3302A and RoboCar Nvis 3302W

• Nvis MCS07 L293D Motor Drive Module

- Applications:

      -- Simultaneous control of two bidirectional DC Motors.
      -- Can be used to drive one Stepper Motor
      -- Can be used for driving Relay and Solenoid
      -- Can be interfaced with microcontrollers for high end applications

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.
      -- Jumpers - 8 nos.

* Note: Compatible with Nvis 50XX and RoboCar Nvis 3302W

• Nvis MCS08 L298D Motor Drive Module


- Applications:

      -- Bidirectional dual DC Motor driver.
      -- Single Stepper Motor driver
      -- Relay driver
      -- Solenoid driver
      -- Can be interfaced with microcontrollers for high end applications

- List of Accessories:

      -- 3 Pin CBK Cable:1 no.
      -- Jumpers - 8 nos.

* Note: Compatible with Nvis 50XX and RoboCar Nvis 3302W

• Nvis MCS01 8-Channel IR Sensor:

• Nvis MCS02 IR Sensor


• Nvis MCS03 TSOP-IR Sensor

• Nvis MCS04 Fire Sensor


• Nvis MCS05 Light Sensor

• Nvis MCS06 Clap Sensor


• Nvis MCS07 L293D Motor Drive Module

• Nvis MCS08 L298D Motor Drive Module

• Nvis MCS01 8-Channel IR Sensor:

- Learn the concept of IR receiver and transmitter
- Study of line follower Robots.

• Nvis MCS02 IR Sensor


- Learn the concept of IR receiver and transmitter.
- Study of line follower and edge follower concepts in Robotics.
- Study of applications like wall follower, obstacle avoider.

• Nvis MCS03 TSOP-IR Sensor


- Study of TSOP receiver and IR transmitter
- Study of application like Obstacle avoider, Micromouse, object follower.

• Nvis MCS04 Fire Sensor


- Study of photodiode as IR receiver
- Study of concept of fire detection & avoidance for Robotics and other embedded applications.

• Nvis MCS05 Light Sensor


- Study of Light Dependent Resistor.
- Study of Light sensor in photophobic and phototropic Robots.

• Nvis MCS06 Clap Sensor

- Study of NE555 IC in monostable mode.
- Study of sound detection for Robotics and other embedded applications.

• Nvis MCS07 L293D Motor Drive Module

- Learn to interface two bidirectional DC Motor.
- Learn to drive Stepper Motor.
- Learn to drive Relays and Solenoids.
- Learn to implement Manual and Autonomous Robots

• Nvis MCS08 L298D Motor Drive Module


- Learn to drive dual bidirectional DC Motor.
- Learn to drive Stepper Motor.
- Learn to drive Relays and Solenoids.
- Learn to implement Manual and Autonomous Robots.
