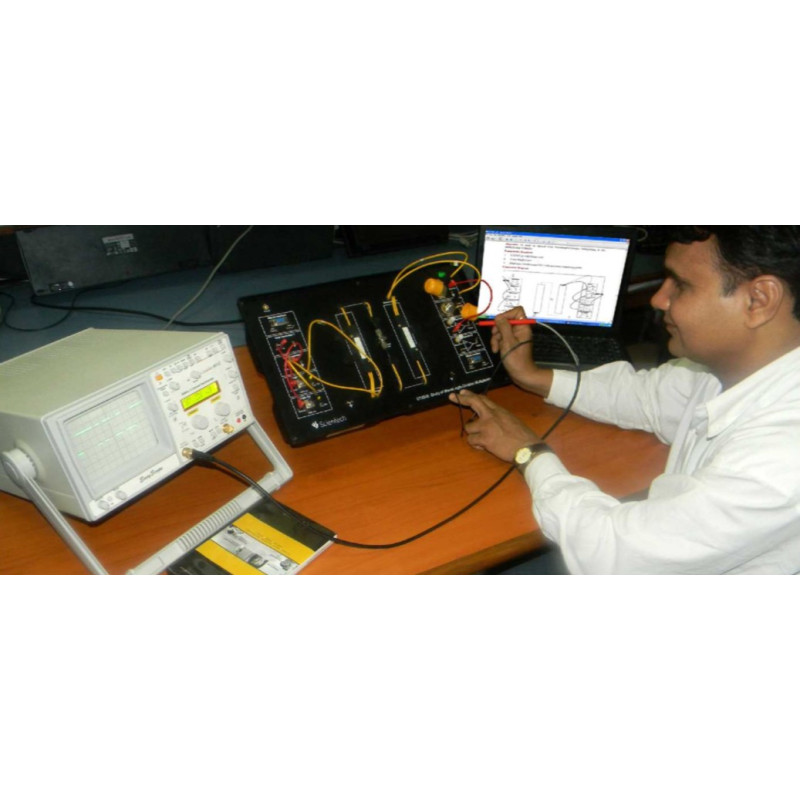

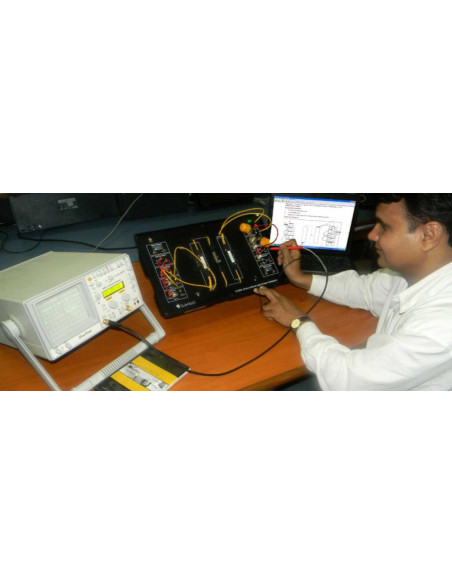

Scientech2505 Advance Fiber Optics Lab

Scientech 2505 Advance Fiber Optics Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

Wavelength-Division Multiplexing is a technology which simultaneously transmits multiple optical channels (wavelength) through a single fiber. Today WDM technique is as much a part of optical networking as the fiber itself. The application of WDM technology has spread over cable TV, optical networking, communication, EDFA and many other areas. WDM is a simple and reliable technique which is free from effect of electromagnetic interference and capable of supporting broadband communications. It carries both analog and digital information over separate wavelengths.

In WDM two or more channels are combined or split to ensure bi-directional communication over a single fiber. Chromatic Dispersion can also be measured using the same setup with optional fiber optic cable of 25Km.

• Features:

- Self contained product
- 15 Bit Data Generators
- 1310nm & 1550nm Laser sources with external signal modulation facility
- Functional Block Indicated on-board mimic
- Comprehensive learning solution
- RS232 PC Interface
- Learning Material

- Study of Wavelength-Division Multiplexing and De-multiplexing
- Data Communication using WDM
- PC to PC communication using WDM
- Study and measurement of Chromatic Dispersion (Optional)
