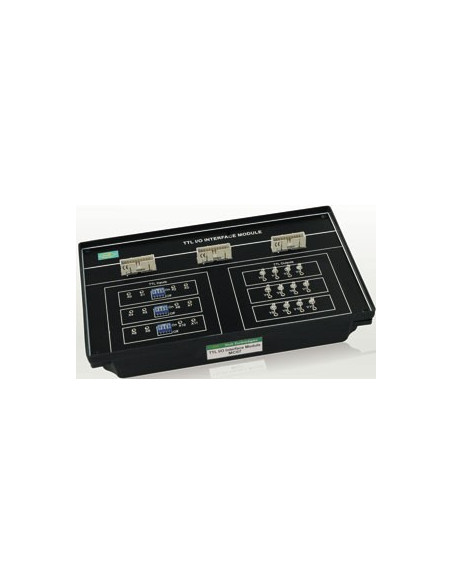

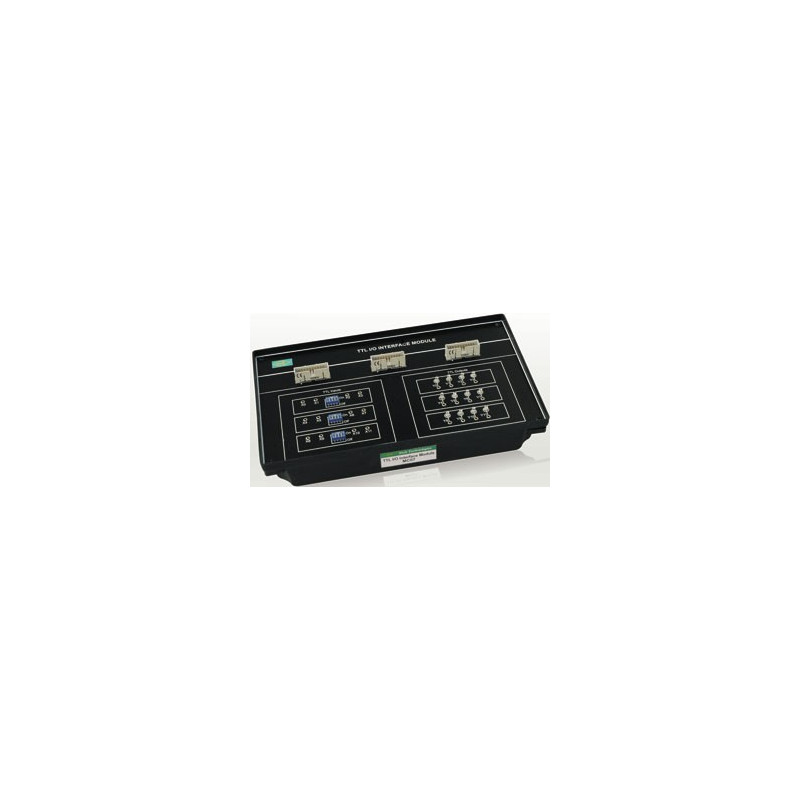

MC07 TTL I/O Interface Module

Reference MC07

Condition: New

MC07 TTL I/O Interface Module enables the students and practicing engineers to gain invaluable practical experience of the principles and applications of a Microcontroller. The aim is to program an external controller for performing experiments like combination controller (AND, OR, XOR and NOT operations), sequential controller, programmable counter, multiplexers etc.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Download

MC07 Download (197.58k)

MC07, TTL I/O Interface Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

MC07 provides 12 buffered TTL outputs and TTL inputs each. Logic state is indicated by LEDs. The 12 inputs are connected to DIP Switches and the 12 outputs are connected to LEDs.

Features:

- 12 Input interface
- 12 Output interface
- PC based programming
- Expansion connectors for plug in with Microcontroller
- Every pin is marked in order to make study easier
- Input/Output & test points provided on board
- Exhaustive Learning Material
