MC05 Motor Drive Module

Reference MC05

Condition: New

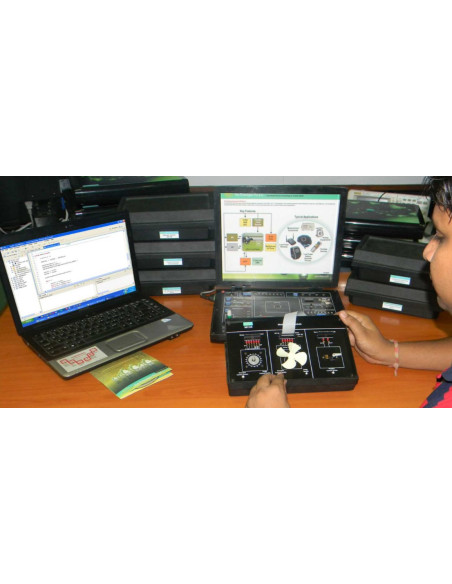

MC05 Motor Drive Module is an extension module for Nvis Microcontroller development Platforms. MC05 has been designed to provide a clear understanding of how motors are interfaced and controlled with Microcontroller. The Motor Drive module is made in such a way that student can understand the detailed concepts of Stepper Motor, DC Motor, and Servo Motor system.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
List of Experiments
Download

MC05 Download (210.01k)

MC05 Motor Drive Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- Steeper Motor interface
- DC Motor interface
- Servo Motor interface
- Expansion connectors for plug in with Microcontroller unit and prototyping area
- Every pin is marked in order to make learning easier
- Input/Output & test points provided on board
- Exhaustive course & reference material

- Study of Steeper Motor interfacing and its Direction and Angle Control
- Study of DC Motor interfacing and its Direction Control
- Study of Servo Motor interfacing and its Angle Control
- Study of PWM concept
