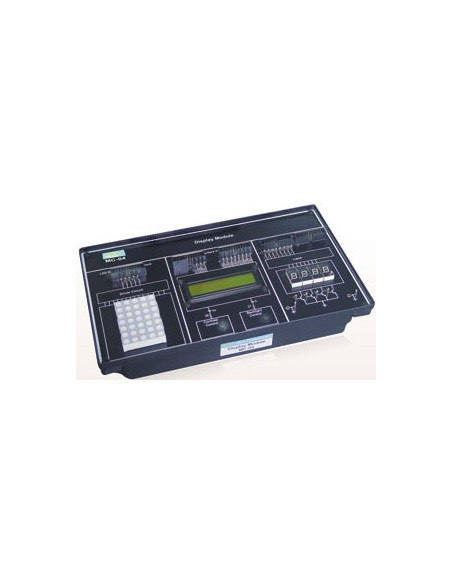

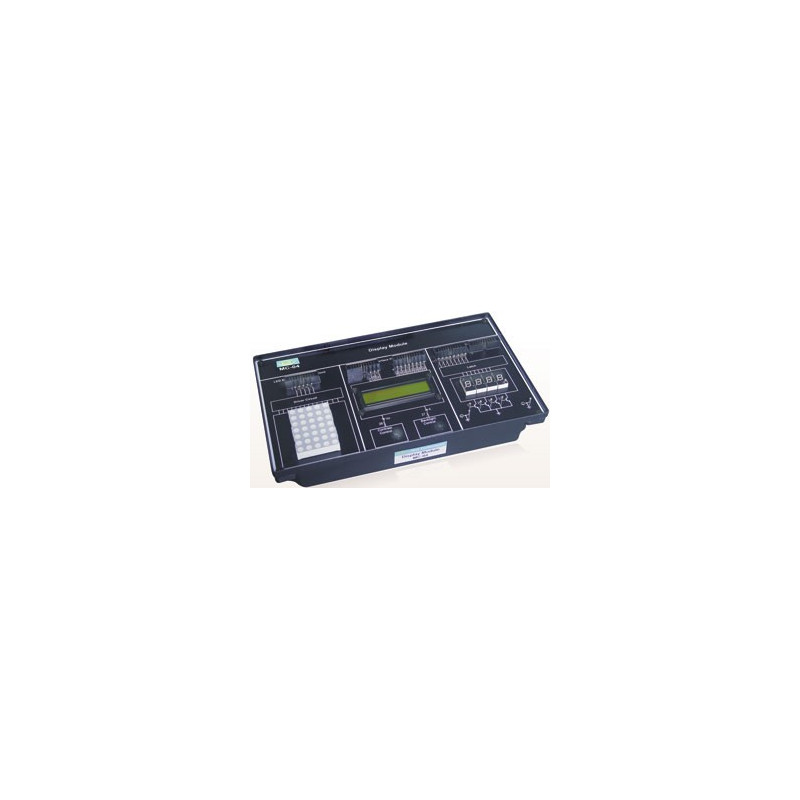

MC04 Display Module

Reference MC04

Condition: New

MC04 Display Module is a learning platform to study the working of displays used for industrial applications. MC04 has been designed to demonstrate the applications of Nvis Microcontroller development platforms. The object is to connect and program a Microcontroller to display data and monitoring. Contrast and backlight control are provided on the module.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overwiew
Specifications
Download

MC04 Download (224.65k)

MC04 Display Module is an ideal platform to enhance education, training, skills & development amongs our young minds.

Features:

- 16 x 2 character LCD interface
- Seven segment display interface
- LED bar graph interface
- PC based programming
- Expansion connectors for plug in with Microcontroller unit and prototyping area
- Every pin is marked in order to make the learning easier
- Input/Output & test points provided on board
- Exhaustive Learning Material
