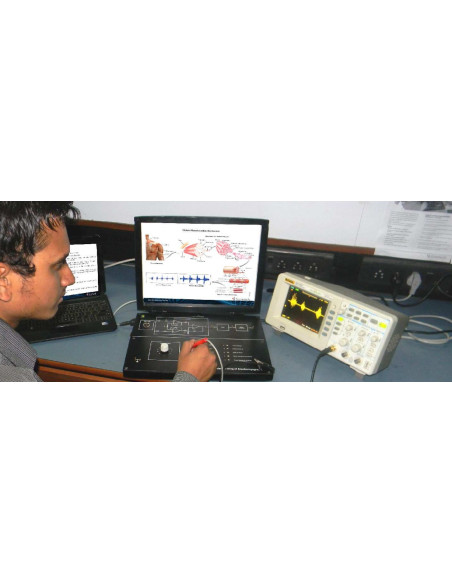

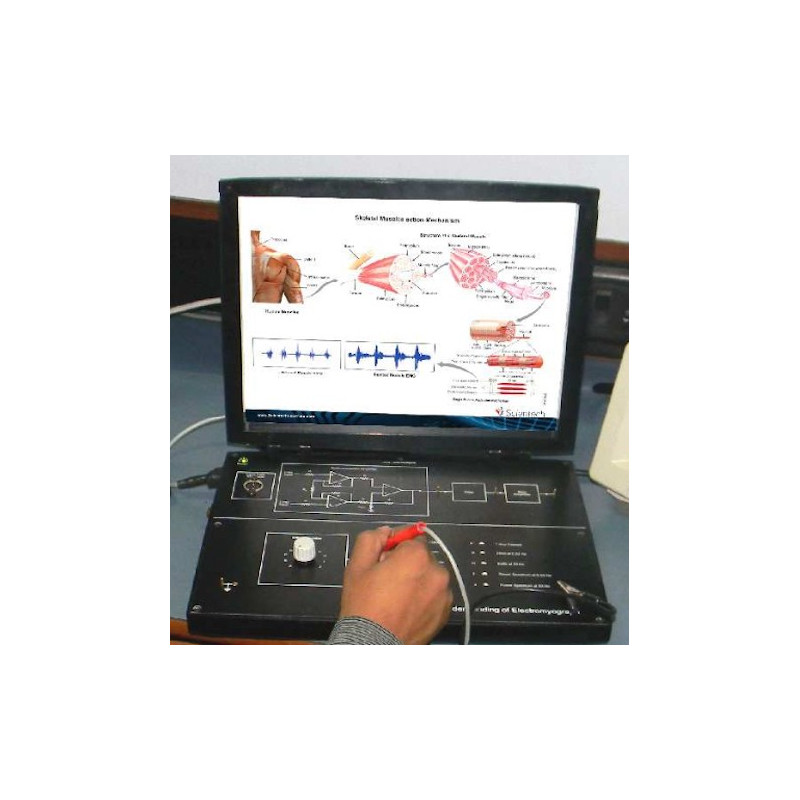

Scientech2354A TechBook for Understanding of Electro-myograph

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

The bioelectric potentials associated with muscle activity constitute the Electromyogram, abbreviated as EMG. Understanding of Electromyograph, Scientech Techbook 2354A provides in-depth study and observation of electric potentials generated by the muscles.

Scientech Techbook 2354A also consists of built-in EMG Simulator to generate simulated EMG signals. This Simulator is provided for internal EMG analysis as on the educational level we cannot provide any invasive technique of penetrating needle electrode into the muscle. The Simulator gives the information about the 10 types EMG patterns viz. Normal EMG, Excited EMG, Raw EMG Data, 100Hz Filtered, 250Hz Filtered, 1 KHz filtered, EMG at 0.53Hz, EMG at 53Hz, Power Spectrum at 0.53Hz, Power Spectrum at 53Hz.

Scientech2354A TechBook for Understanding of Electro-myograph is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- Provides amplified real time EMG output.
- Inbuilt EMG Simulator.
- Provides information about 10 simulated EMG outputs.
- Visible LED indication for all the simulated EMG outputs.
- Separate test-points to observe waveforms after each block.

- Study of bioelectric potential generated by group of muscles.
- Study of real time analysis of EMG signal (Surface EMG).
- Understanding of different standard EMG wave patterns like: Normal EMG, Excited EMG, Raw EMG, Filtered EMG etc.
