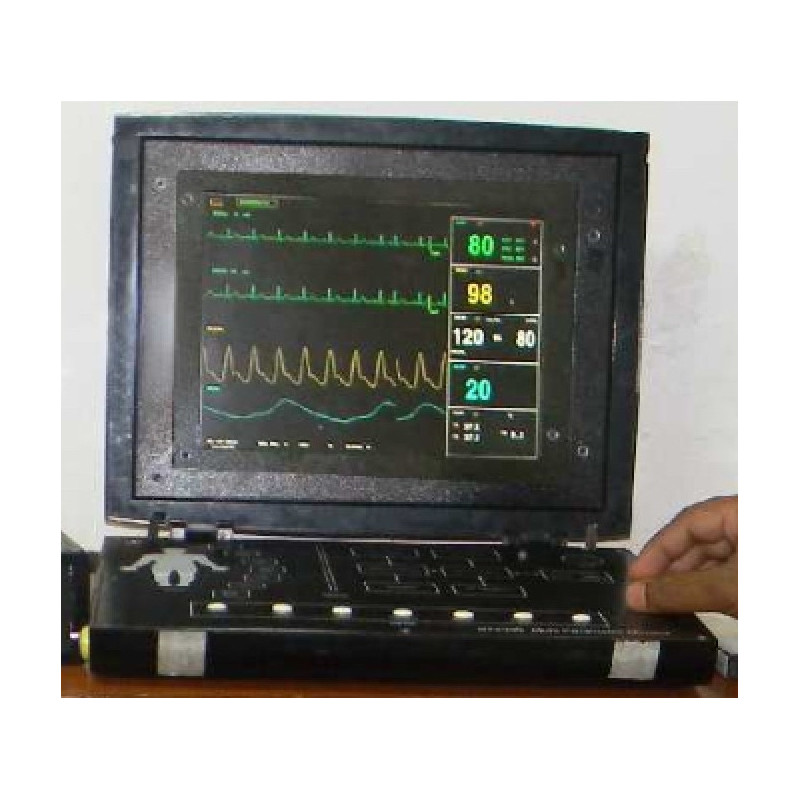

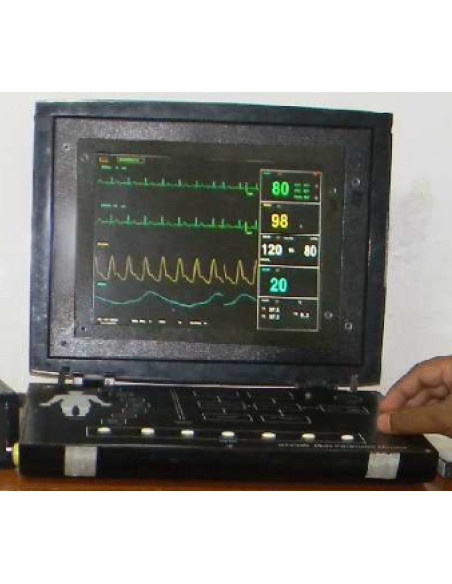

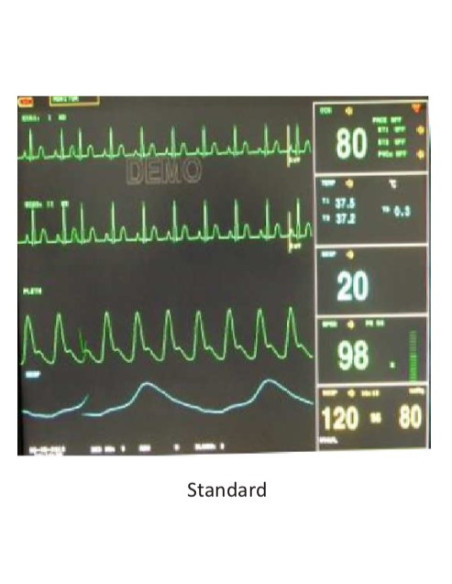

Scientech2365 TechBook for Multi-parameter Monitor

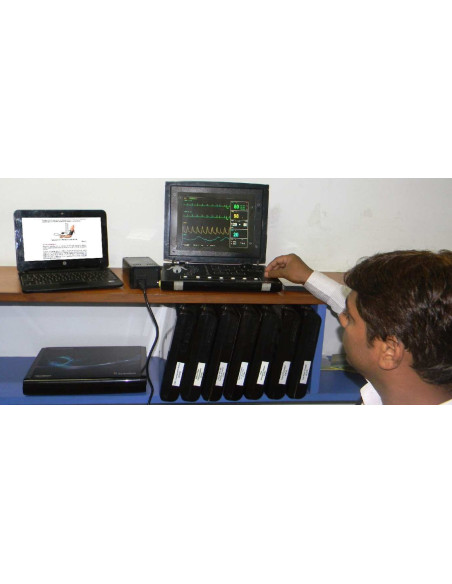

Scientech TechBooks are compact and user friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information. Monitoring of several vital physiological parameters provides very essential information about patient simultaneously in one common display board. It helps the doctors to take quick decision in favor of the patient when there is no time for further analysis and treatment. These parameters includes ECG, HR, ST segment analysis, PVC`s analysis, Respiration rate, Pulse rate, Body temperature, NIBP and SPO measurement. Scientech Techbook 2365 Multi- 2 parameter monitor is capable of monitoring seven parameters simultaneously over one window, with the help of only four sensors. Theses sensors are for ECG (Up to seven leads), Temperature, SPO and NIBP. Measurement of 2 respiration is done by ECG sensor (RA-LA impedance method) .

Scientech2365 TechBook for Multi-parameter Monitor is an ideal platform to enhance education, training, skills & development amongs our young minds.

• Features:

- Specially design for educational purpose .
- Light weight, compact and portable.
- Both visual (LED) and audible (Buzzer) alarm indications.
- High resolution 12.1" color TFT display .

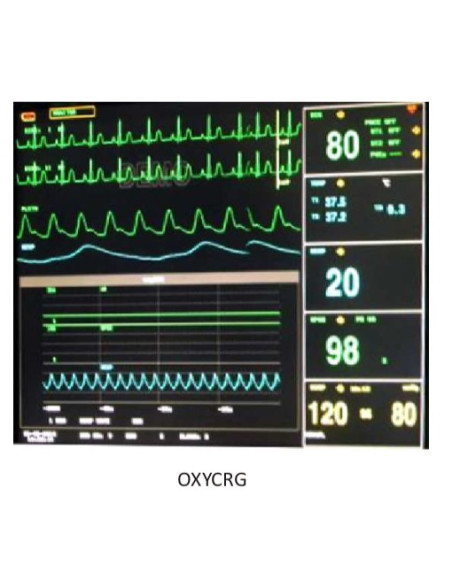

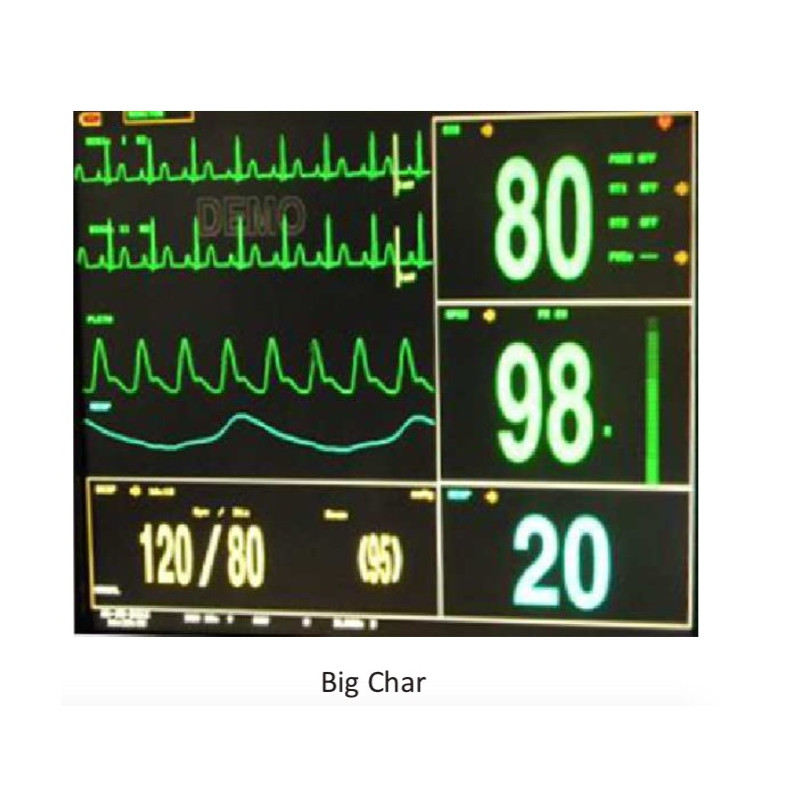

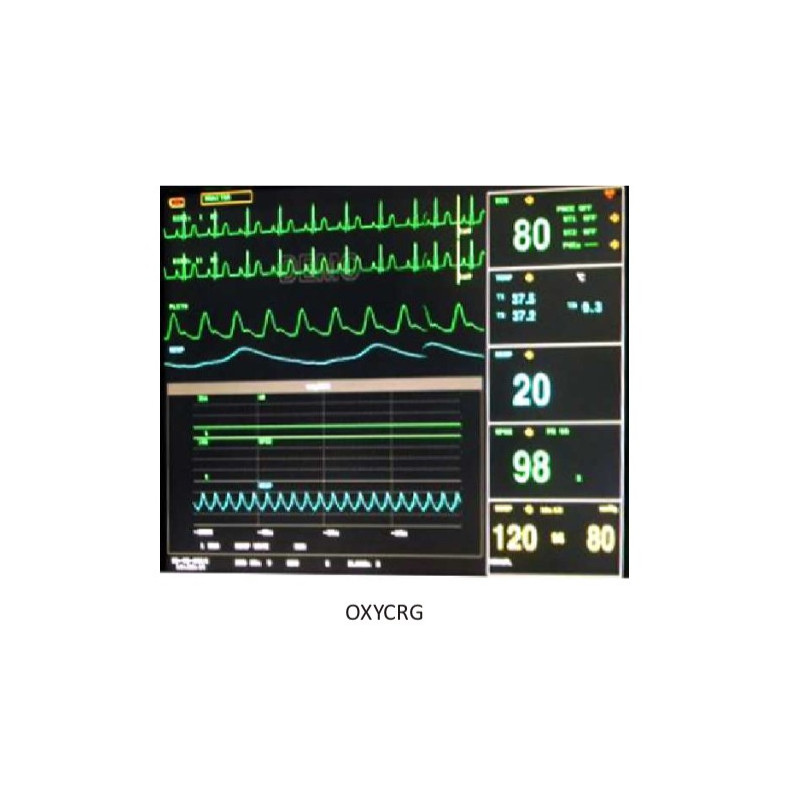

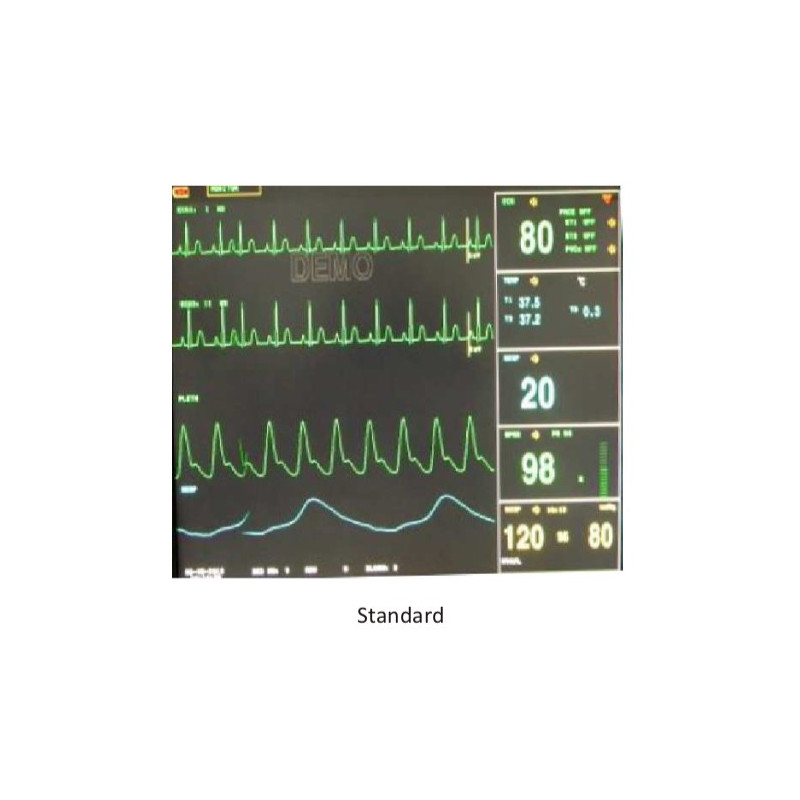

- Simultaneous monitoring of ECG ,SPO2 ,NIBP , PR, Respiration and Temperature .
- ECG waveforms up to 7-leads on the same screen .
- Arrhythmia, S-T segment and PVC`s analysis .
- 72-hours graphic and tabular trends of all parameters .
- 72 alarm events of all parameters recall .
- 32 seconds full-disclosure waveform review.
- 500 NIBP measurement data can be storage and recall .
- Data and waveforms color can be adjustable .
- Suitable for adult, pediatric and neonatal patient .

• Measurement:

+ NIBP:
- Method: Oscillometry
- Modes: Manual / Auto / Continuous
- Auto measure time: Adjustable
- Measurement range: 10 - 270 mmHg

+ ECG:
- Lead mode: 3/5-lead
- Lead selection: I, II, III, avR, avL, avF, V
- Heart rate range: Adult : 15 - 300 bpm, Pediatric / Neonatal (15-300bpm)
- ECG waveform: 2 channels
- Accuracy: ±1 bpm or ±1 %, which is greater
- Alarm: Yes, audible and visual alarm

+ SPO2:
- Measurement range: 0-100%
- Accuracy: 70-100%, ±2% 0-69%, Unspecified

+ Pulse rate:
- Range: 20-254 bpm
- Accuracy: ± 3 bpm

+ Respiration:
- Method: RA-LL impedance method
- Range: Adult : 0-120 rpm pediatric/neonatal (0 - 150 rpm)
- Apnea alarm: Yes

+ Temperature:
- Range: 0-50 °C
- Accuracy: ± 0.1 °C
- Channel: Dual-channel

+ Product Tutorial:
- Online on www.ScientechLearning.com

+ Dimensions (mm): W 326 x D 252 x H 52

+ Power supply: 110V - 260V AC, 50/60Hz

+ Weight: 1.5 Kg. (approximately)

+ Operating Condition: 0-40oC, 85% RH

+ Included Accessories: NIBP cuff, Temperature sensor, SPO2 sensor, ECG Lead cable, ECG Disposable electrode cable, Power supply, Mains cord - 1 no.

- Study of ECG, HR, PVC's and ST analysis
- Study of NIBP (Systolic, Diastolic & MAP) measurement
- Study of SPO measurement
- Study of Respiration( RA-LA impedance method)
- Study of Body temperature measurement
- Study of Pulse rate measurement
- Study of simultaneous measurement of all parameters
