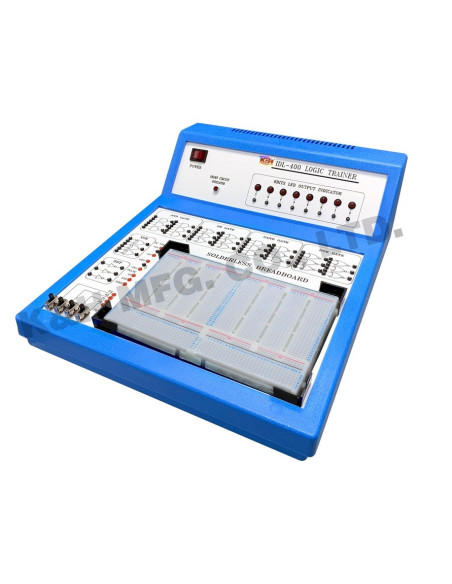

IDL-400 Logic Trainer

The IDL-400 logic trainer is designed for the logic beginners to enhance the comprehension of basic logical theory. The user-friendly design makes beginners understand logic gates more easily.

+ Specification

1. Basic logic gate units:

It contains 6 kinds of logic gates, i. e. AND gate X 6, NAND gate X 6, NOR gate X 6, XOR gate X 3 an NOT gate X 3.
Input voltage of HI level > 2.25V
Input voltage of LO level < 0.8V


2. DC power supply: With short circuit protection and indicator

a) Output voltage : +5V ±5%
Maximum output current : 1 Amp.
Line regulation < 50 mV
Load regulation < 100 mV

b) Output voltage : -5V ±5%
Maximum output current : 500 mA.
Line regulation < 25 mV
Load regulation < 30 mV

c) Output voltage : +15V ±5%
Maximum output current : 500 mA.
Line regulation < 150 mV
Load regulation < 150 mV


3. Pulse generator

3 kinds of time interval: 1 sec., 0.1 sec., 0.oo1 sec.,
Output voltage : +5V


4. Debounced logic switch: HI/LO

5. 8 bits LED output indicator: Max, input voltage   15V DC

6. Solderless breadboard: AD - 200

Interconnected 1896 tie points, fits all components with DIP sizes and solid wire AWG #22-30 (0.3 - 0.8 mm)


7. Accessories:

    - Power cord
    - User manual


8.Dimensions : 420 x 360 x 200 mm (L x W x H)


9.Weight : 4.2kg
