ETS-8000A General Digitized Training System

ETS-8000A

KandH

New

- The ETS-8000A is a basic digital logic circuit training system with CE Certificate.
- It includes combinational logic and sequential logic experiment circuits.

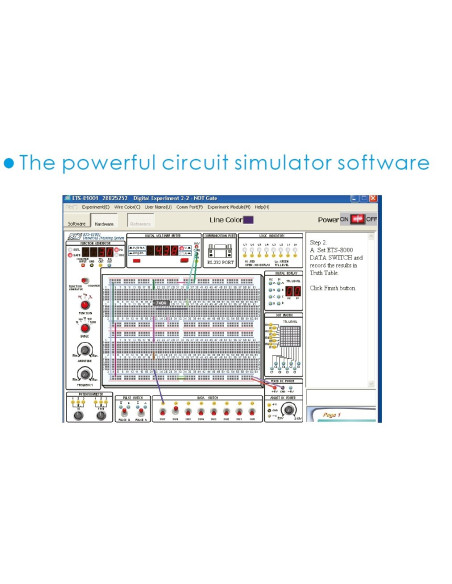

- The course content of experiment has hardware emulation and software simulation.
- Customers need to have their own PC/laptop and Digital Storage Oscilloscope.

CE Mark

Add to wishlist

Function Microprocessors

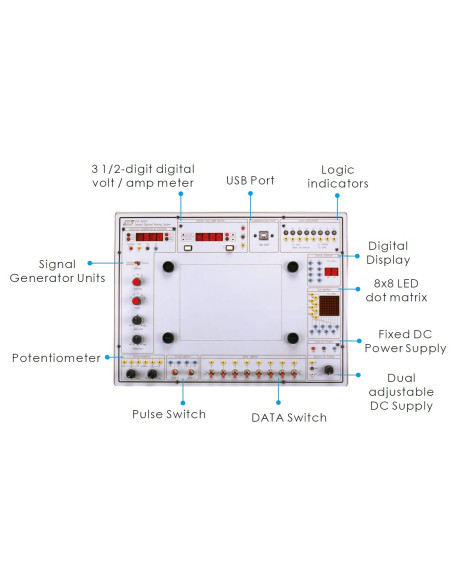

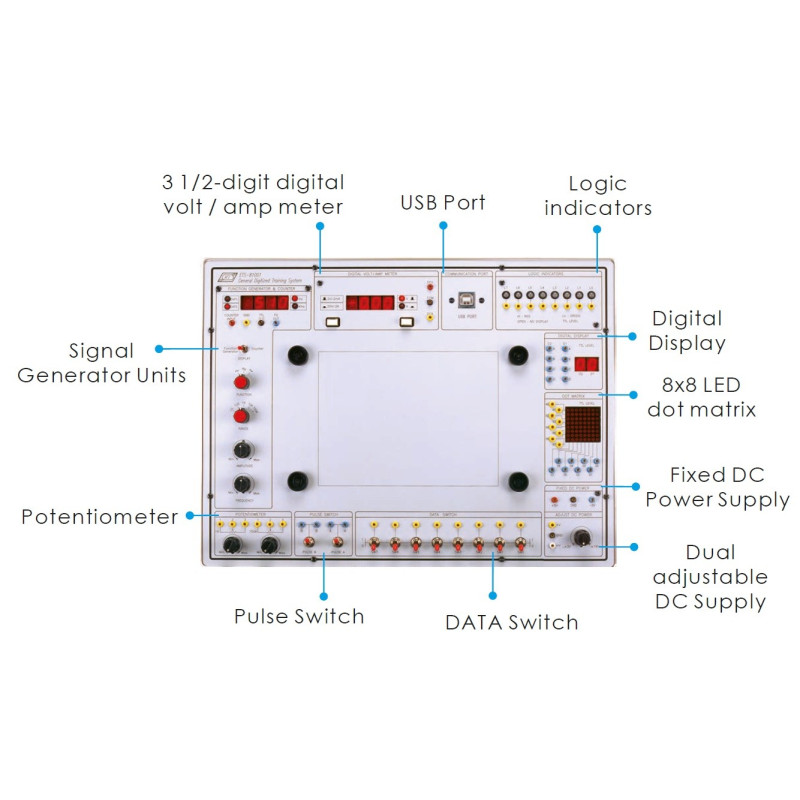

All necessary equipment for digital logic experiment such as power supply, signal generator, indicator, measurement are installed on the main unit.

01. Suitable for combinational logic, sequential logic experiments  and designs
02. Ideal tool for learning the basics of digital logic circuits
03. Comprehensive power, signal supply and measurement devices for making experiments easily
04. Expandable and flexible experiments with  universal breadboard
05. All supply units are equipped with overload protection for safety

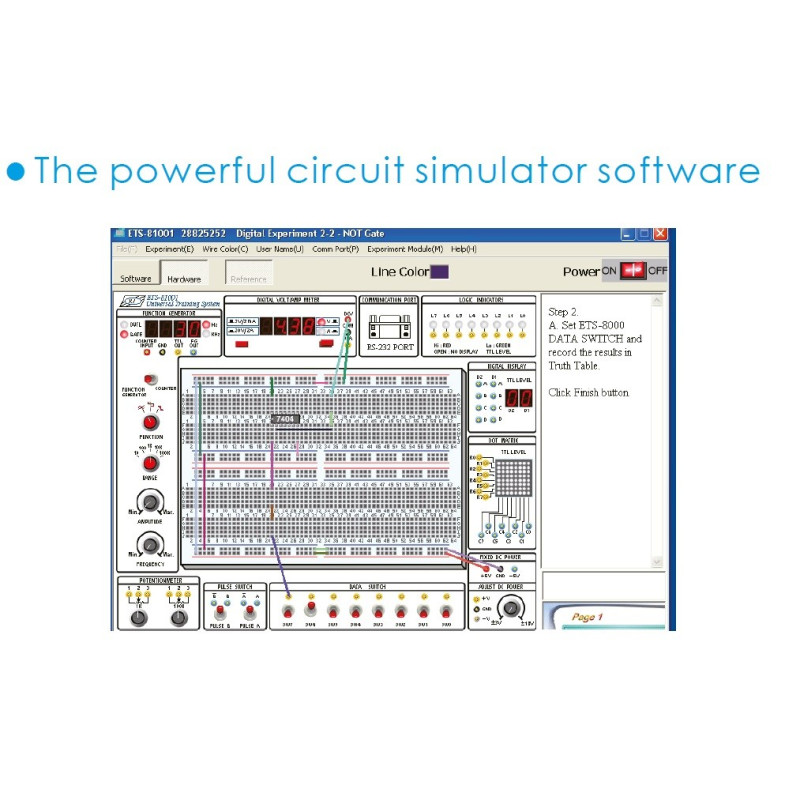

06. Computer interaction includes software simulation & hardware emulation

 • Basic logic gates experiments

  (a)  OR gate
  (b)  NOT gate
  (c)  OR + NOT gate
  (d)  NOR gate
  (e)  NAND gate
  (f )  4-inputs NAND gate
  (g)  AND-NOR
  (h)  Staircase lamp


• Assembled logic circuits experiments

  (a)  X+0=X, X+1=1
  (b)  X.0=0, X.1=X
  (c)  X+X=X, X+X'=1
  (d)  X.X=X, X.X'=0
  (e)  (X.Y)'=X'+Y'
  (f )  (X+Y)'=X’.Y'
  (g)  2-bits comparator
  (h)  Voting circuit
  (i )  Karnaugh map application


• Adder / subtractor experiments

  (a)  Half adder
  (b)  Full adder
  (c)  Half subtractor
  (d)  Full subtractor
  (e)  4-bits adder
  (f )  4-bits subtractor
  (g)  BCD code adder


• Decoder / encoder experiments

  (a)  8 to 3 encoder
  (b)  3 to 8 decoder


• Multiplexer experiments

  (a)  Multiplexer
  (b)  Logic unit.


• Basic Flip-Flop experiments

  (a)  Constructing a R-S Flip-Flop with NAND gates
  (b)  Constructing a R-S Flip-Flop with NOR gates
  (c)  J-K Flip-Flop
  (d)  T Flip-Flop
  (e)  D Flip-Flop


• Application of Flip-Flop experiments

  (a)  Constructing a D Flip-Flop with a J-K Flip-Flop;
  (b)  Constructing a T Flip-Flop with a J-K Flip-Flop;
  (c)  Mod-8 of ripple counter


• Counter experiments

  (a)  Mod-8 counter
  (b)  Mod-4 arbitrarily sequence


• Application of digital logic

  (a)  0~9 electric roulette
  (b)  Traffic sign control
