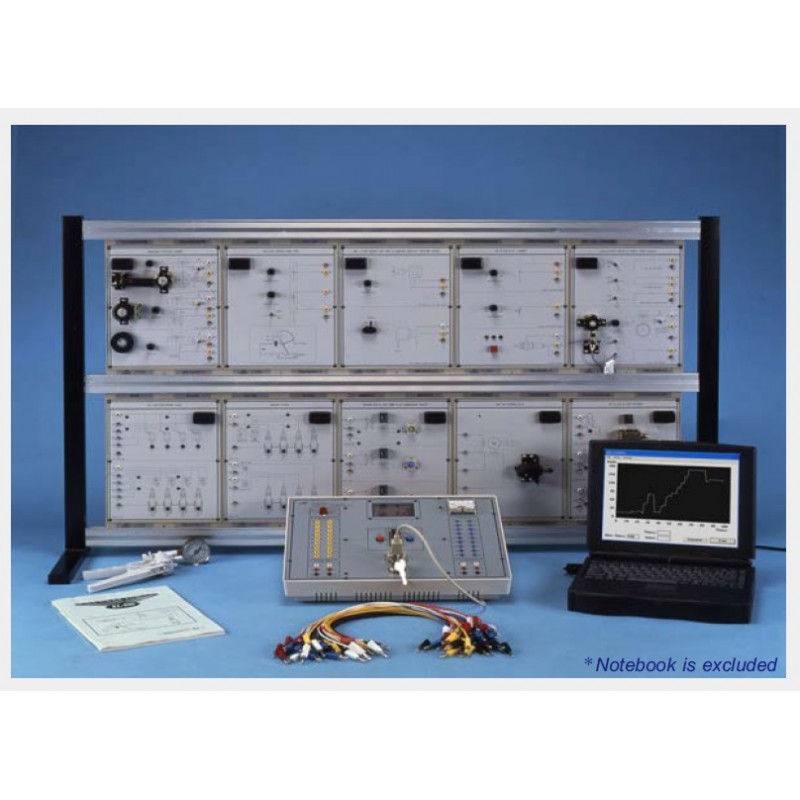

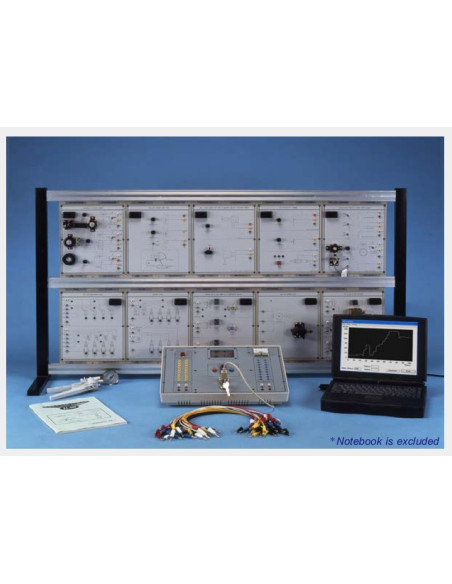

KL-800 Autotronics/Automotion Training System

Reference KL-800

Manufacturer: KandH

Condition: New

Interactive Computerized Automotive System

The whole system has been modularized to provide electronic and automotive courses with step-by-step experiments on educational technology training.
All theoretical, experimental and practical learning procedures are supported by personal computer assisted supervision and dedicated software.
The KL-800 can simulate the operation of fuel injection system, ignition system, and the control of exhaust gas, etc.
Experiments include the characteristics, and operation of various sensors and actuators, monitored by microprocessor on the main unit.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
List of Experiments
EXPERIMENTS LIST
Data sheet

Category	Automobile-Automotive
Function	Sensors and Multiple Parameters

All theoretical, experimental and practical learning procedures are supported by personal computer assisted supervision and dedicated software.

The KL-800 can simulate the operation of fuel injection system, ignition system, and the control of exhaust gas, etc. Experiments include the characteristics, and operation of various sensors and actuators, monitored by microprocessor on the main unit.

1. 89S51 computer interface monitor control
2. Data of fuel injection, ignition and exhaust gas can be acquired and monitored by computer.
3. Can be assembled as the injection system
4. With trouble-shooting simulation function
5. Switch-off input / output function when trouble-shooting is made

A laptop isn’t necessary for KL-800 (but can be connected to laptop).

- Experiment 01: Connections and of RPM Sensors
- Experiment 02: Connections and Measurements of Air-Flow Sensor
- Experiment 03: Throttle Position Sensor (TPS)
- Experiment 04: Coolant Temperature Sensor (CTS)
- Experiment 05: Oxygen Sensor
- Experiment 06: Vehicle Speed Sensor
- Experiment 07: 3rd Gear Switch of Automatic Gearbox (3GR)
- Experiment 08: Park/Neutral (P/N) Switch
- Experiment 09: Air Condition (A/C) Switch
- Experiment 10: Power Steering Pressure
- Experiment 11: Injector Circuit
- Experiment 12: Control Ignition System
- Experiment 13: Cooling Fan Relay
- Experiment 14: Fuel Pump Relay
- Experiment 15: Circuit of A/C Compressor Relay
- Experiment 16: Idle Air Control Valve (A/C)
- Experiment 17: Torque Converter Clutch (TCC)
- Experiment 18: Carbon Canister Purge Valve (CCPV)
- Experiment 19: Exhaust Gas Recirculation Valve (EGRV)
- Experiment 20: ECM Operators Simulator
