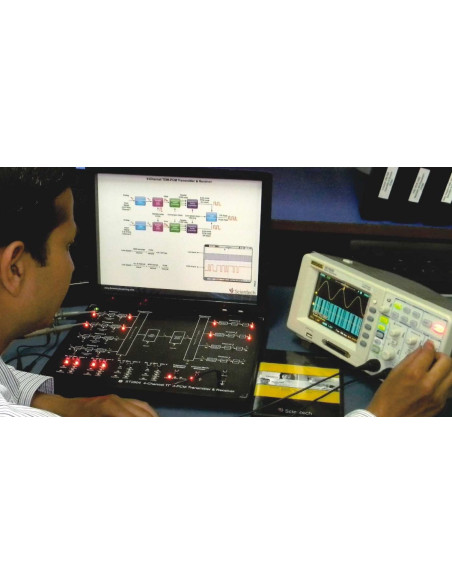

Scientech2804 TechBook 4 Channel TDM PCM Transmitter and Receiver

Scientech TechBooks are compact and user-friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers basic theory, step by step procedure to conduct the experiment and other useful information.

Product Features:

• Modulator and Demodulator on same board

• On-board four DDS Signal Generator for standard and Arbitrary signals

• Selectable Sampling frequencies

• On board four 2º order Butterworth Low Pass filter

• SMD LED indicators

• Compact and Light Weight

• Can be issued just like a book for hands-on learning

• Study and analysis of 2 channel & 4 channel time division multiplexing

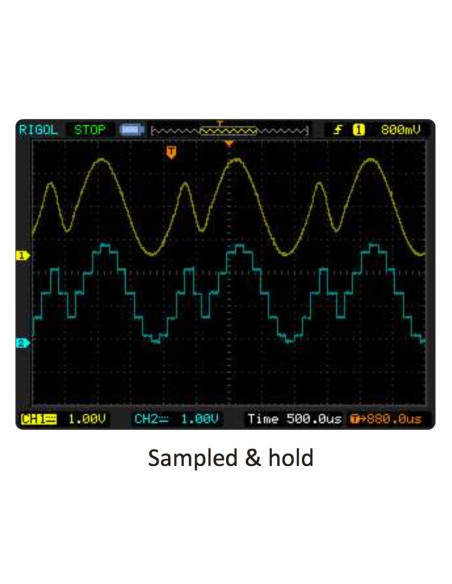

• Study and analysis of sample & hold output at the different channel by varying the sampling as well as signal frequency.

• Study and analysis of parallel to serial conversion by varying the line speed clock at the different channel.

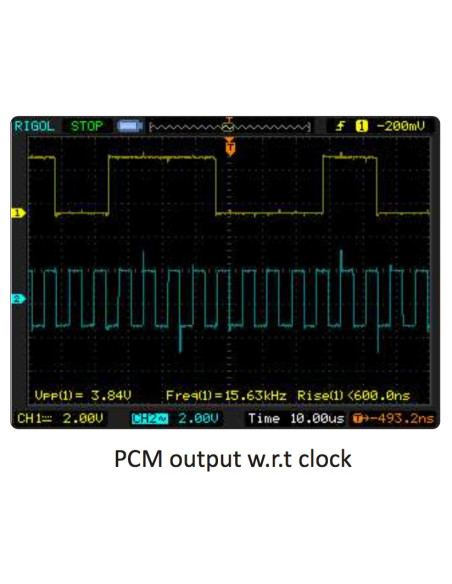

• Study and analysis of single bit PCM output at different line speed clock at the different channels.

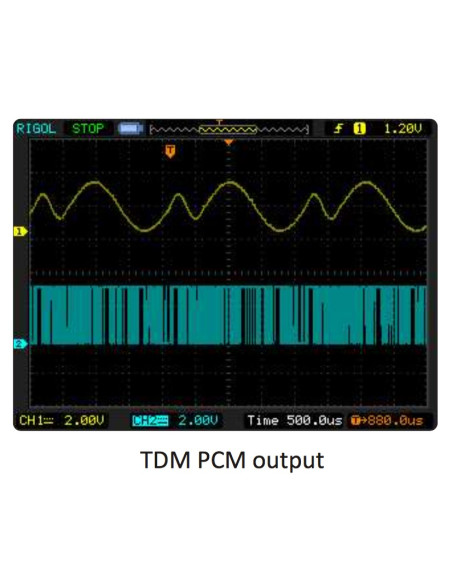

• Study and analysis of single bit multiplexed PCM output at modulator side and demodulator side

• Study and analysis of pulse code demodulation at the different channel and perform serial to parallel conversion at the demodulator.

• Analyze the final demodulated output with second order low pass Butterworth filter
