Nvis 625 Digital Nanoammeter

This instrument finds application in all Electronics, Electrical, Physics and Biomedical laboratories where sensitive low current measurement is required, i.e. to measure current from photomultiplier tubes, photometer, etc. NV625 can also be used to measure the leakage current in solid state devices.

NV625, Digital Nanoammeter is an ideal platform to enhance education, training, skills & development amongs our young minds.

- Microcontroller based Design 155

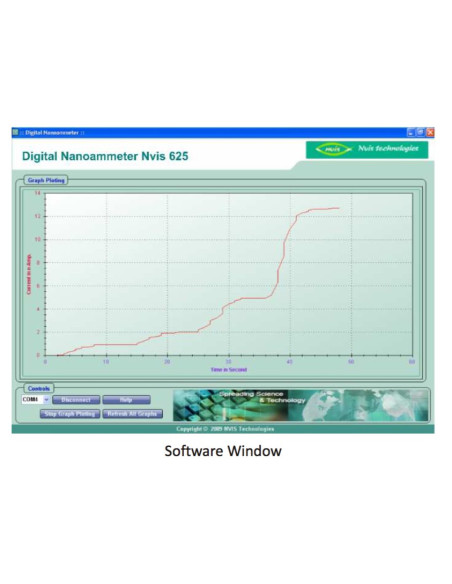

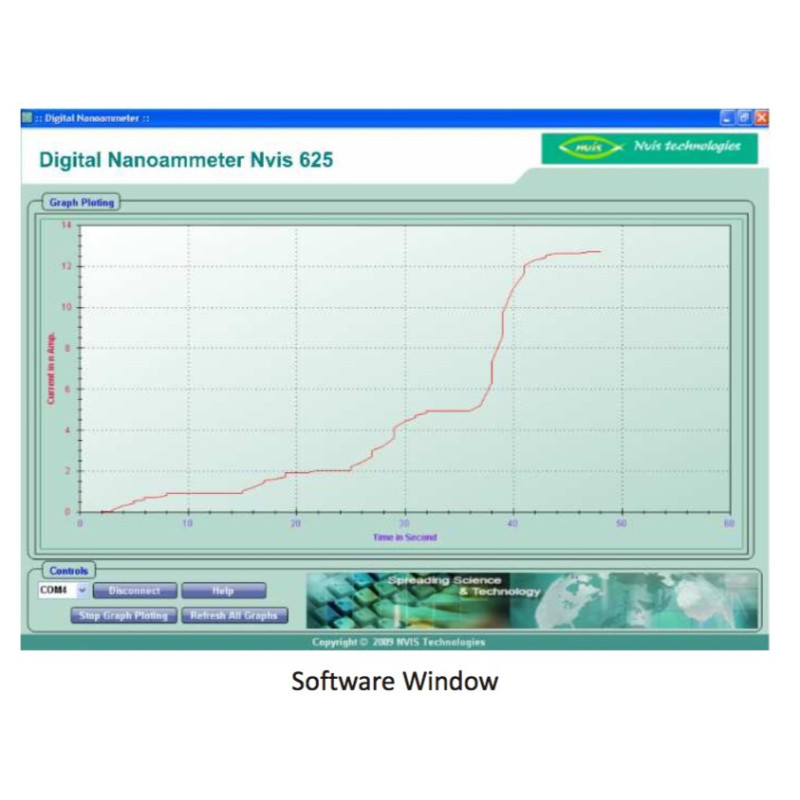

- Software for Automatic graph plotting
- Product Tutorial

- Ranges:
   - 0.1nA to 100nA
   - 100nA to 1μA
   - 1μA to 10μA
   - 10μA to 100μA
- Display : 16 x 2 character LCD
- Zero Adjustment : By potentiometer
- Resolution : 0.1nA for 100nA range
- 0.001μA for 1μA range
- 0.01μA for 10μA range
- 0.1μA for 100μA range
- Input : BNC Connector
- Mains Supply : 230V AC ±10%, 50Hz
- Dimensions (mm) : W 198 x D 285 x H 90
