Nvis 3002A Advance Process Control Platform with DAQ

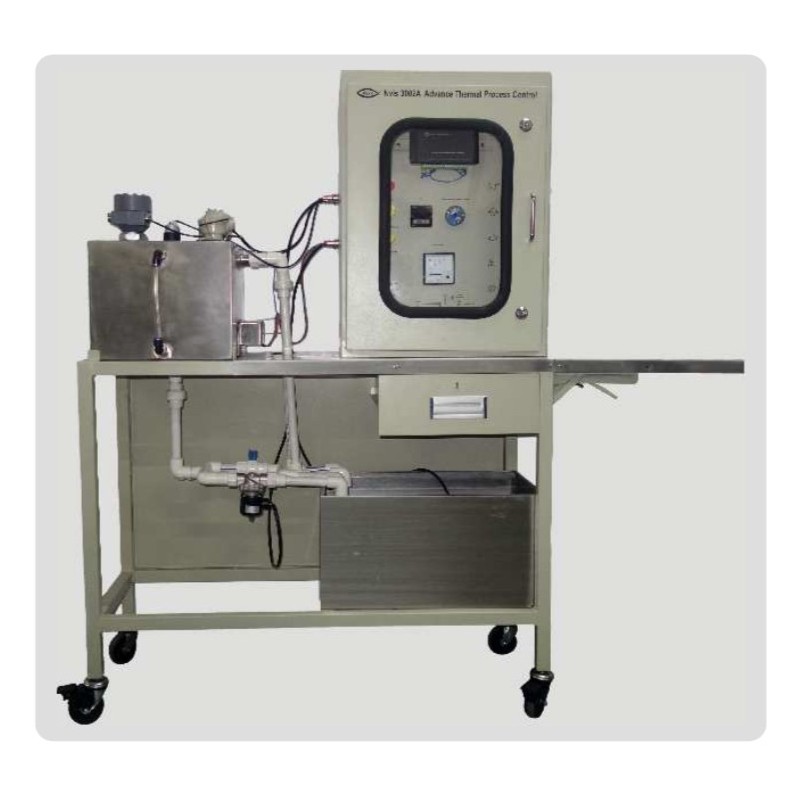

Nvis 3002A Advance Process Control Platform is a complete setup to control process through two point (ON/OFF) and three point (PID) controller. It has two processes-Temperature and Liquid level which we can control through an Ethernet based Data Acquisition System which has 24 bit ADC and digital input/output. Nvis 3002A also gives the exposure to Industrial components like Level Transmitter, Temperature Transmitter, Valves, DAQ, PID controller and Sensors. Users can learn how to calibrate, install, operate and tune the instruments for controlling the process. All electrical components are connected to the control panel to allow students to measure signals and connect the devices in wide variety of control configuration including open loop (manual control) and close loop (PID control, ON/OFF control).

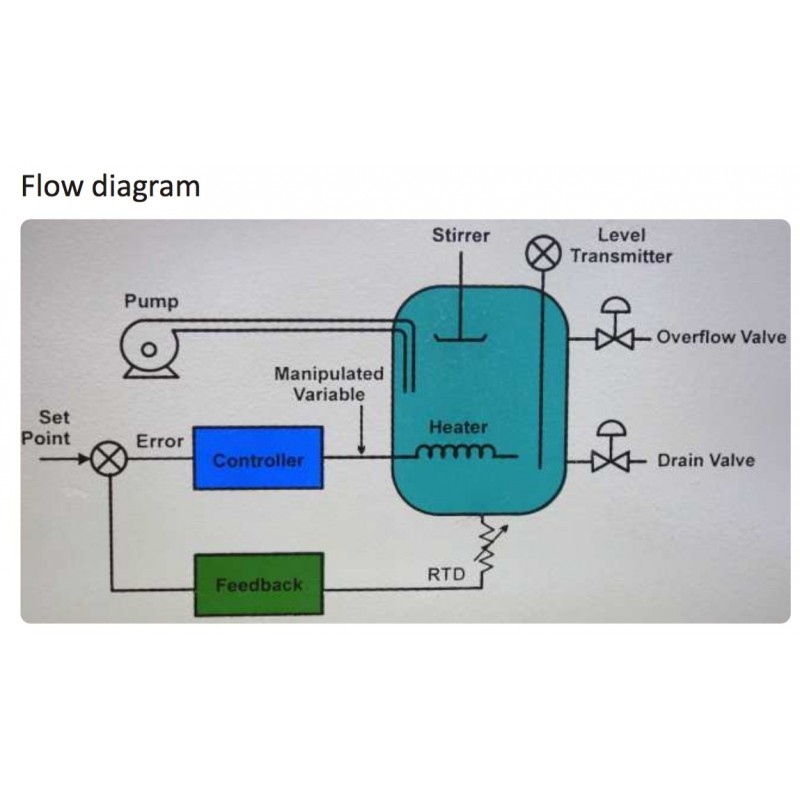

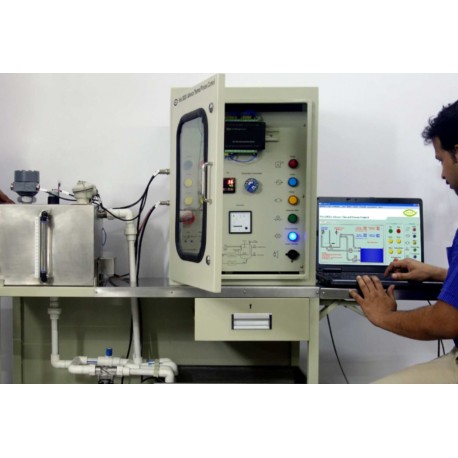

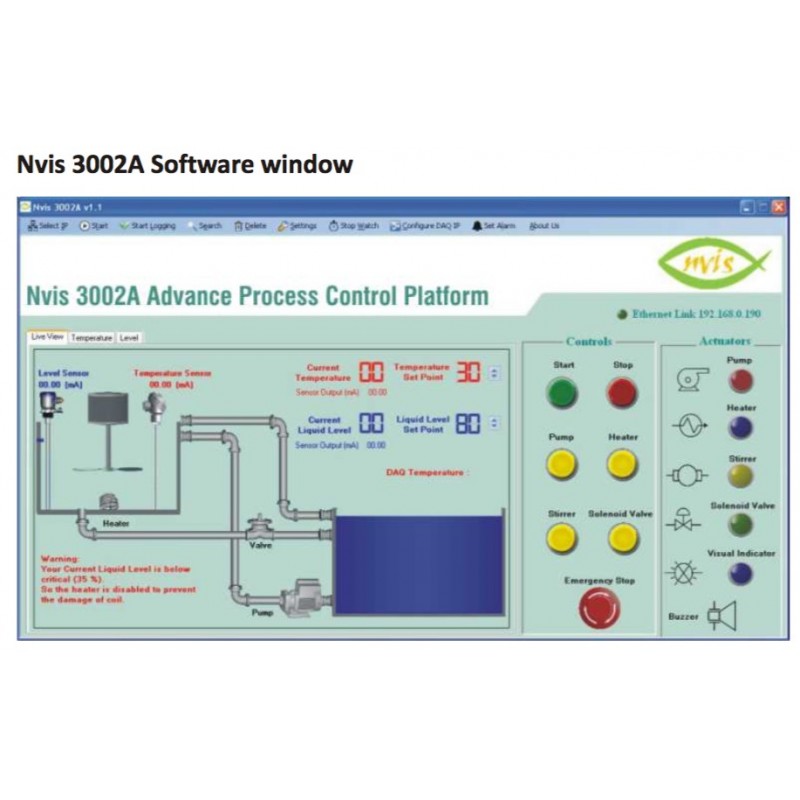

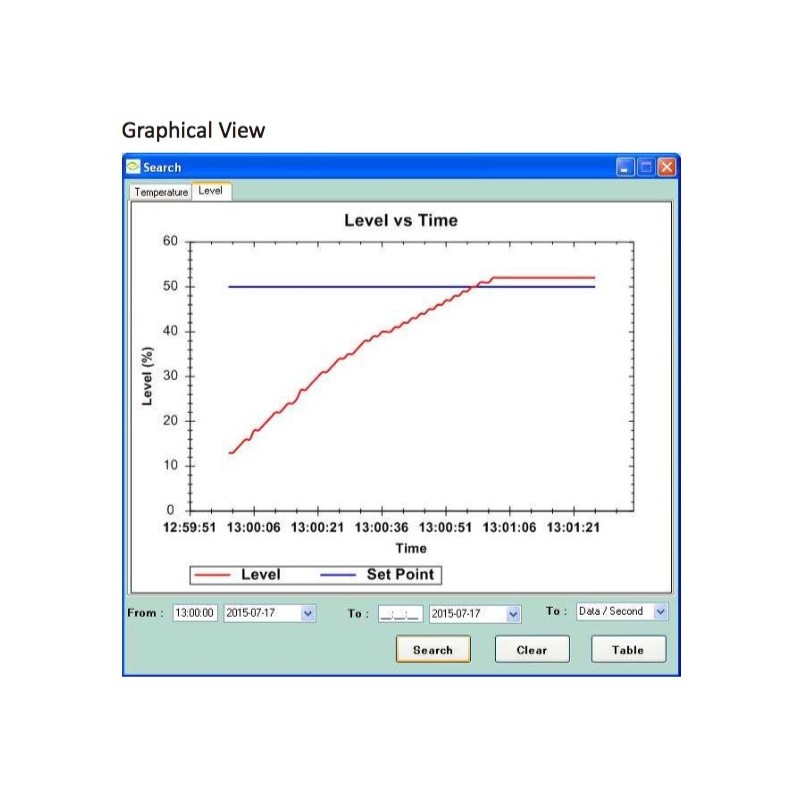

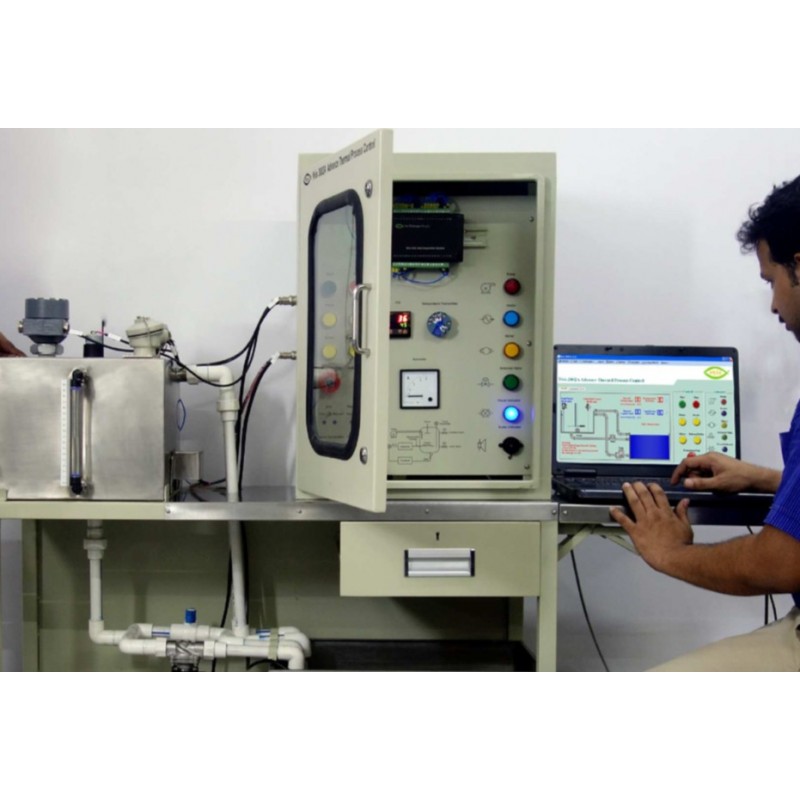

Nvis 3002A comes with a versatile Software through which we can control it from any Computer in the local area network. The Software has features like logging of the process data, live and stored graphs that can be printed when needed, alarms that can be set for different points, animated real time view of complete process, with easy IP configuration.

• Use of Industrial Process Control elements
• Heavy duty bench Workstation
• Electrical Control Panel
• Capacitive Level Sensor
• Temperature Transmitter
• Interface with Ethernet based DAQ
• 8 Channel 24 bit ADC
• Din rail mounting for DAQ
• Process Control concept
• RTD Sensor
• Thermocouple Sensor
• Start , Stop , Emergency Stop button , Indicators for Pump, Heater , Stirrer, Solenoid Valve, Audio Indicator, Visual Indicator
• 2 Types of Controller : PID Control , DAQ Control
• Process Loop Tuning & Stable Process
• Real-time DAQ interface with ADC & Digital input/output
• Process Control by ON/OFF Controller
• Process Control by PID with Auto tuning
• Process Control loops
• Temperature Measurement and Control
• Automatic and Manual Control
• Leak proof Safety measures and sturdy piping
• Enhanced Electrical Safety considerations
• Heat Transfer concepts
• Transducer/Transmitter Calibration
• Piping and instrumentation diagram
• Built-In Instrumentation
• Sump tank for inlet and outlet of water
• User Friendly Software
• Robust construction
• Platform with Caster wheel arrangement for ease in movement
• Online Product Tutorial
