Nvis 6002 Electrostatic Lab

Reference Nvis6002

Condition: New

Nvis 6002, Electrostatic Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

Overview
Specifications
List of Experiments
Data sheet
Download

Category	Electrostatics

Nvis 6002 Download (195.6k)

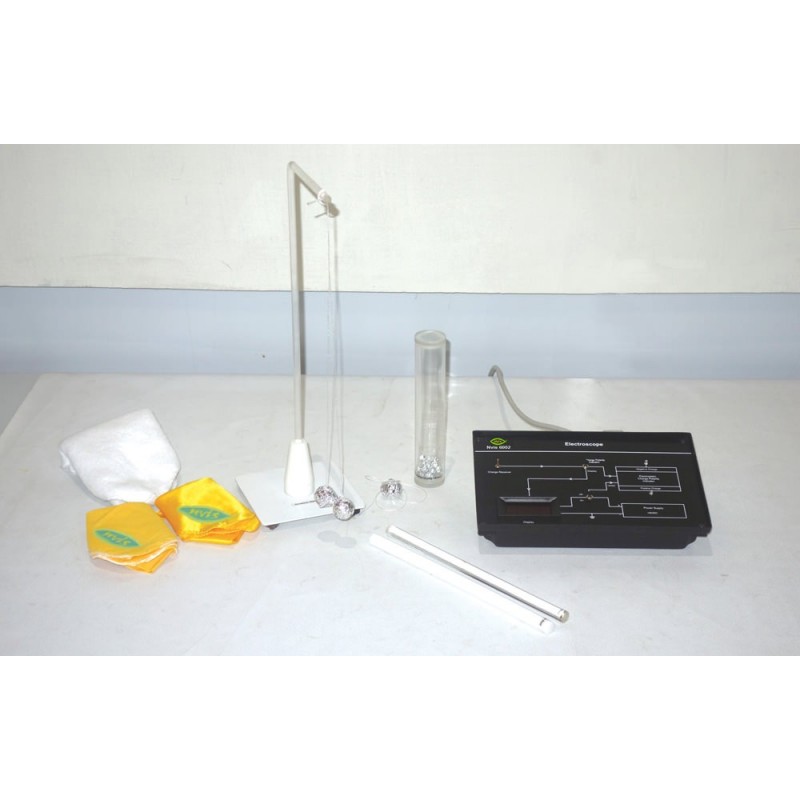

Nvis 6002 Electrostatic Lab is a versatile training system to be used in the laboratories. It introduces the basic concepts of electrostatics like charging by friction, induction and conduction. With this system static charge polarity can be easily determined. This system is provided with a Digital Electroscope, Pith ball pendulum, Charge Demonstration Tube. A set of different rods and clothes are provided to study the electrostatic charges by their different combinations.

Nvis 6002, Electrostatic Lab is an ideal platform to enhance education, training, skills & development amongs our young minds.

Complete training system to study the fundamentals of Electrostatics
Electrostatic charging by Induction, Conduction, Friction
Digital Electroscope consists of Charge Polarity Indicator & Display
Provided with learning Software
Online product tutorial

Technical Specification

Digital Electroscope: Measures relative intensity of charge in millivolts

Charge Polarity Indicators: Blue LED - Negative charge, Green LED - Positive charge

Rods: Teflon, Ebonite, Perspex

Cloths: Silk, Cotton, Woolen

Pith balls (with pendulum): Single and pair is provided for different observations

Pendulum Stand: Charge Demonstration Tube

Mains Supply: 230V ±10%, 50Hz

Dimensions (mm): W 250 x D150 x H80

To study the Charge Induction in Electrostatics
To study the Charge Conduction in Electrostatics
To study the Pith ball pendulum Electroscope
To study the relative charges of different rods with the help of Digital Display in millivolts
To study the Electrostatic Charge with the help of Charge Demonstration Tube
To study the Electrostatic Charge by the combination of different rods & cloths
