ADVANCED COMMUNICATION SYSTEM - for educational teaching, training, and learning of telecommuncation / line code / QPSK / 8PSK / 8QAM / delta / sigma / adaptive / DTMF / TDM / PAM / FDM / VCO / DPBSK

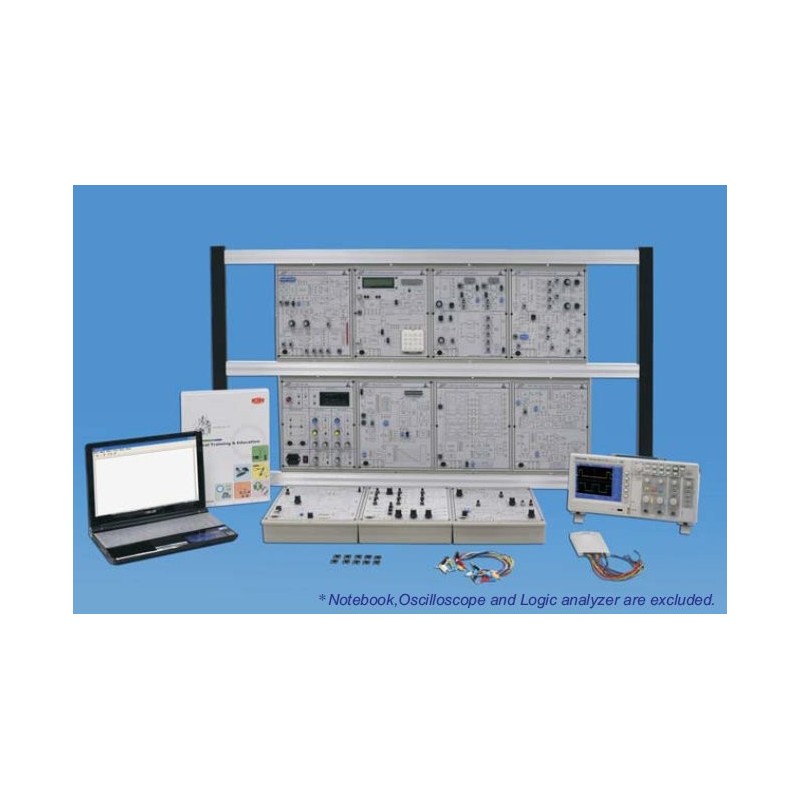

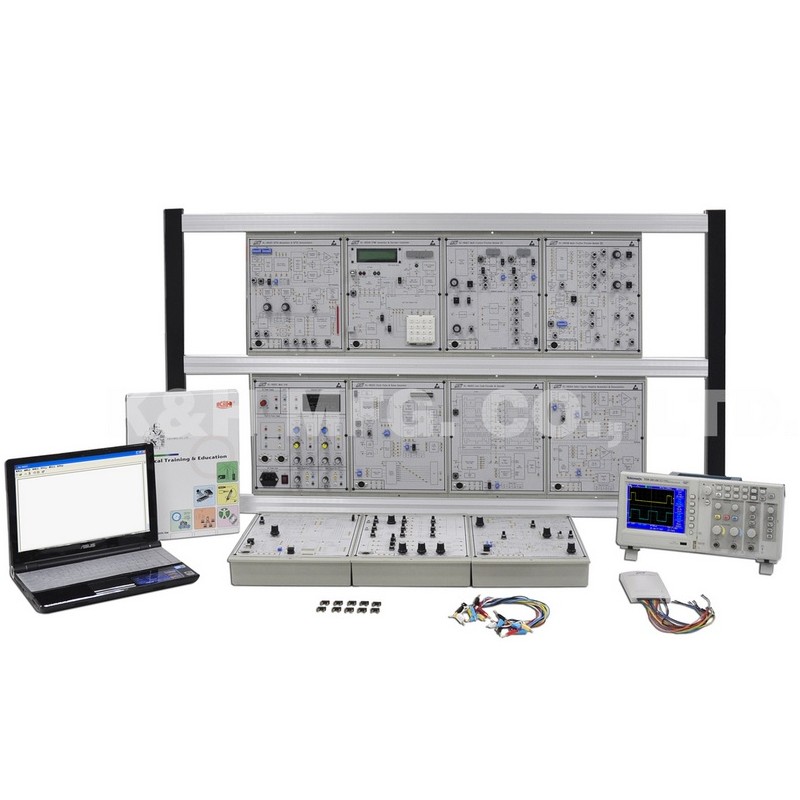

KL-910 is a Modular Training System with various advanced communication experiments, including digital encoding/decoding, modulation/demodulation and related multiplexing techniques, developed for bridging the gap between the theory and the practice of the modern communication system.
|Function||Analog and Digital Electronics|
- Various essential theories and techniques in modern communication system includes digital encoding/decoding techniques, various digital serial ports, DTMF signal system, ASK / FSK / QPSK / TDM / PAM / FDM modulation/demodulation and filters…etc.
- KL-910 offers users not only the comprehensive experiments of advanced communication system but also various peripherals including analog/digital function generator, frequency meter, and V-F converter…etc.
All of the experiments are carried out appropriately with the help of oscilloscope, spectrum analyzer and logic analyzer (not included).
1. Main Unit (KL-96001)
2. Clock / Data & Noise Generator (KL-96002)
3. Line-Code Encoder & Decoder (KL-96003)
4. Delta / Sigma / Adaptive Modulation & Demodulation (KL-96004)
5. QPSK Modulation & QPSK Demodulation (KL-96005)
6. DTMF Generator & Decoder / Controller (KL-96006)
7. Multi-Function Process Module (A) (KL-96007)
Multi-Function Process Module (B) (KL-96008)
8. Time-Division Multiplexing(TDM)/Pulse-Amplitude Modulation(PAM)(KL-93006)
9. Frequency Division Multiplexing (KL-93007)
10. Frequency Converter, Carrier Frequency Recovery and Manchester Clock
