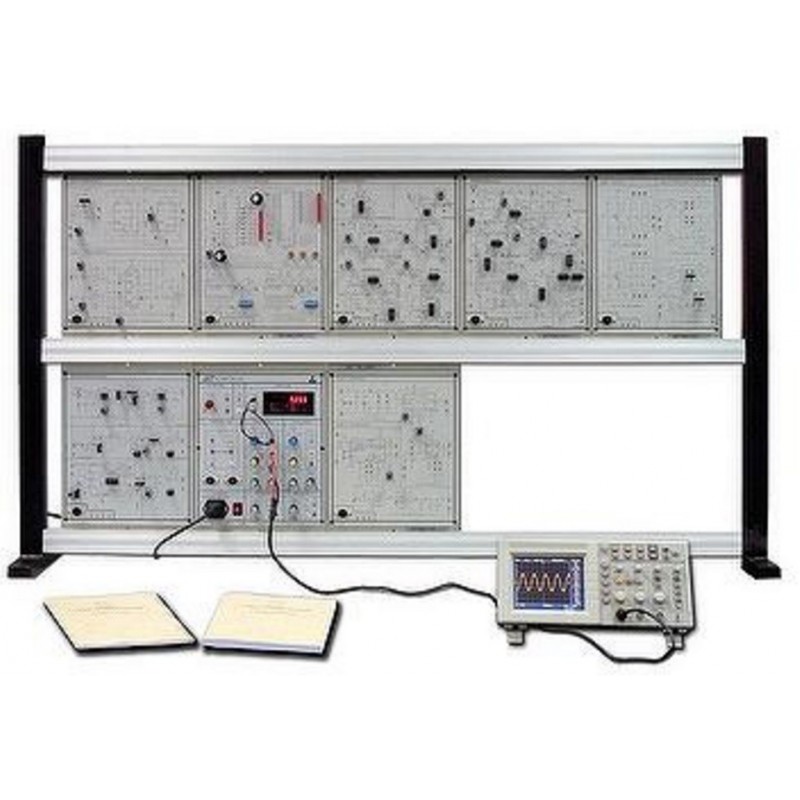

KL-900A Basic Communication System for Analog & Digital Telecommuncation

KL-900A offers experiments for fundamental technical concepts in telecommunication.

It enables students to acquire a clear experimental view and further, they will be familiar with the operative aspects of the work in the telecommunication laboratory

• The trainer includes modules with experimental circuits. It offers the beginner complete courses of basic analog and digital communication.

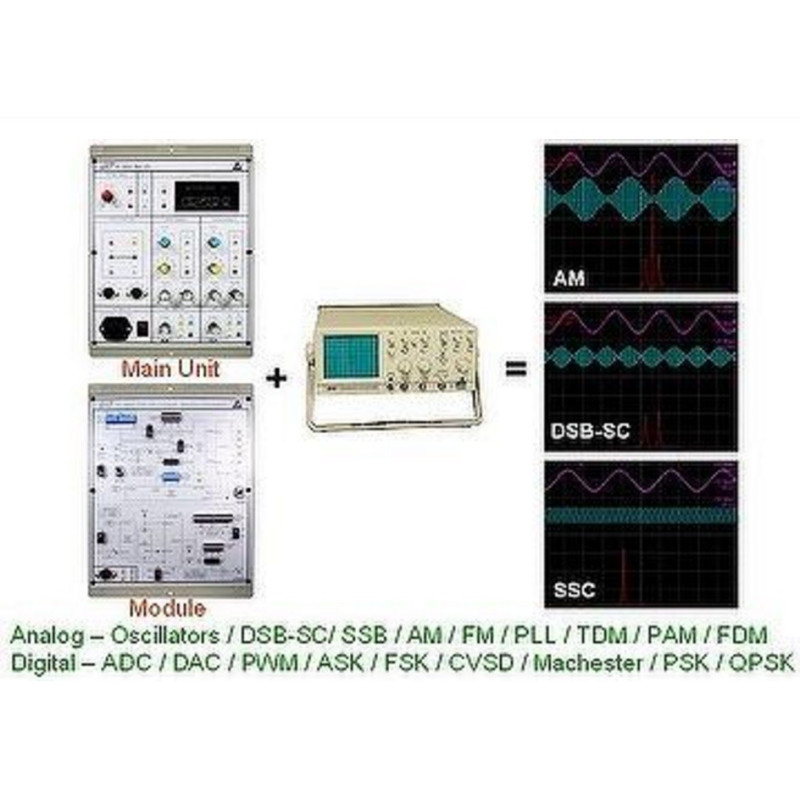

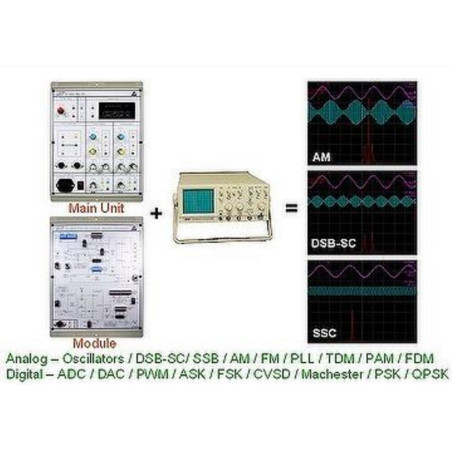

• KL-900A is equipped with power supply and signal unit. Students only have to adopt the oscilloscope to complete various experiments independently.
• System modularity maximizes flexibility and variety for experimentation, and allows possibility for expansion and customization.

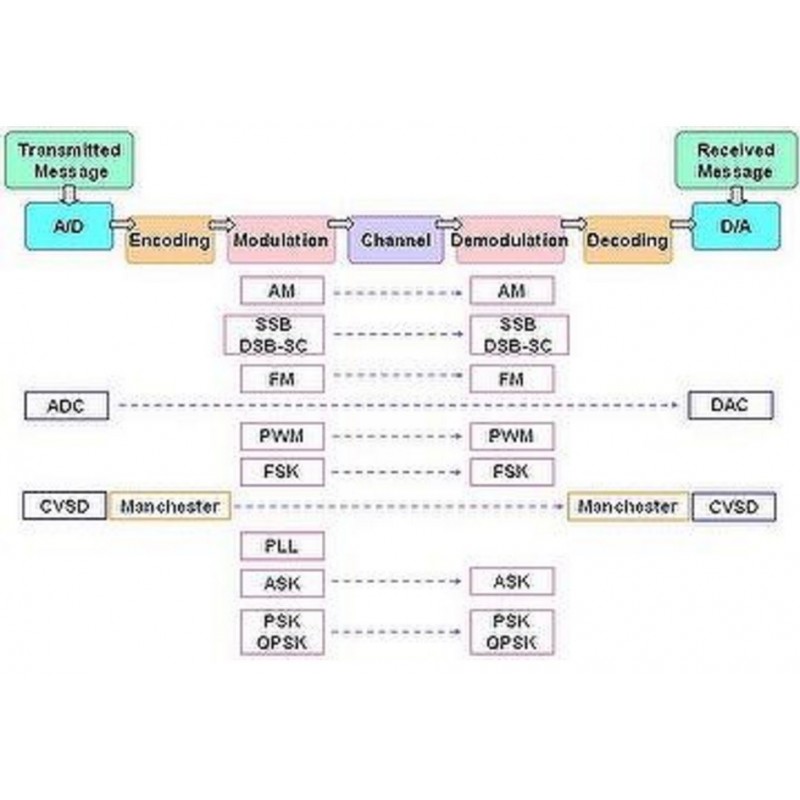

Analog Communication
  1.  RF oscillator experiment
  2.  Second order LPF & HPF experiment
  3.  AM modulator experiment
  4.  AM demodulator experiment
  5.  DSB-SC and SSB modulator experiment
  6.  DSB-SC and SSB demodulator experiment
  7.  FM modulator experiment
  8.  FM demodulator experiment
  9.  PLL frequency synthesizer
10.  TDM multiplexer experiments
11.  TDM demultiplexer experiments
12.  FDM multiplexer experiments
13.  FDM demultiplexer experiments
14.  Frequency converter experiment
15.  Carrier frequency recovery experiment
16.  Manchester clock regeneration experiment

Digital Communication
  1.  Analog to digital experiment
  2.  Digital to analog experiment
  3.  PWM modulator experiment
  4.  PWM demodulator experiment
  5.  FSK modulator experiment
  6.  FSK demodulator experiment
  7.  CVSD modulators & demodulators
  8.  Manchester code encode / decode
  9.  ASK modulator / demodulator
10.  PSK / QPSK modulator / demodulator
