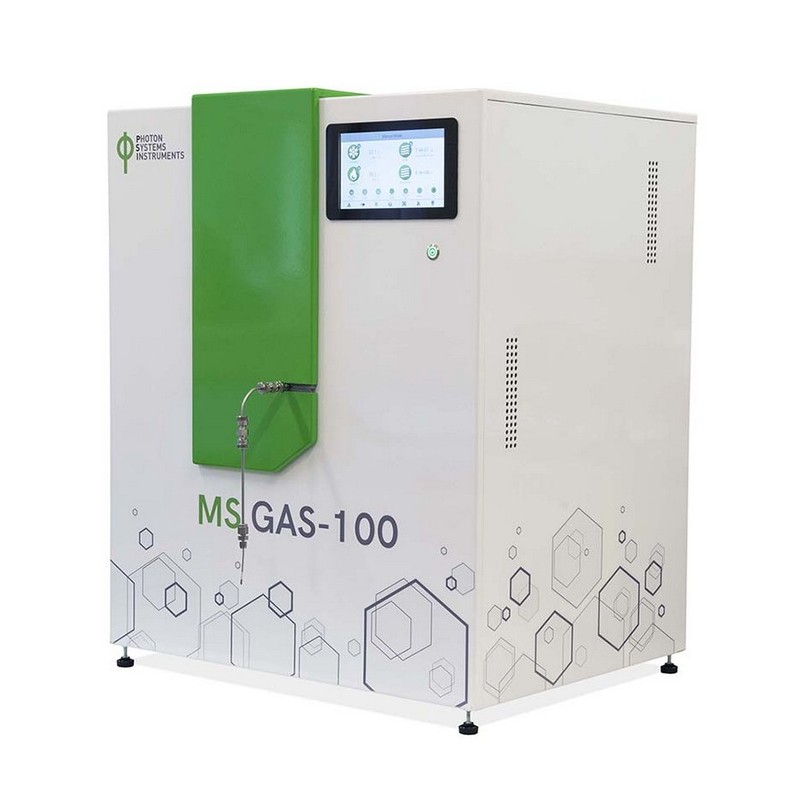

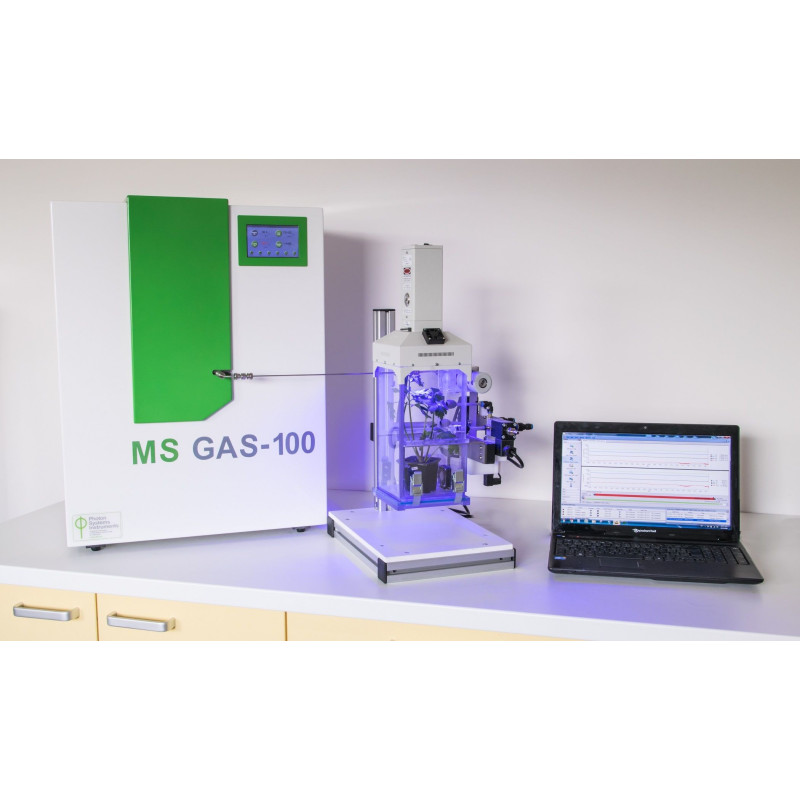

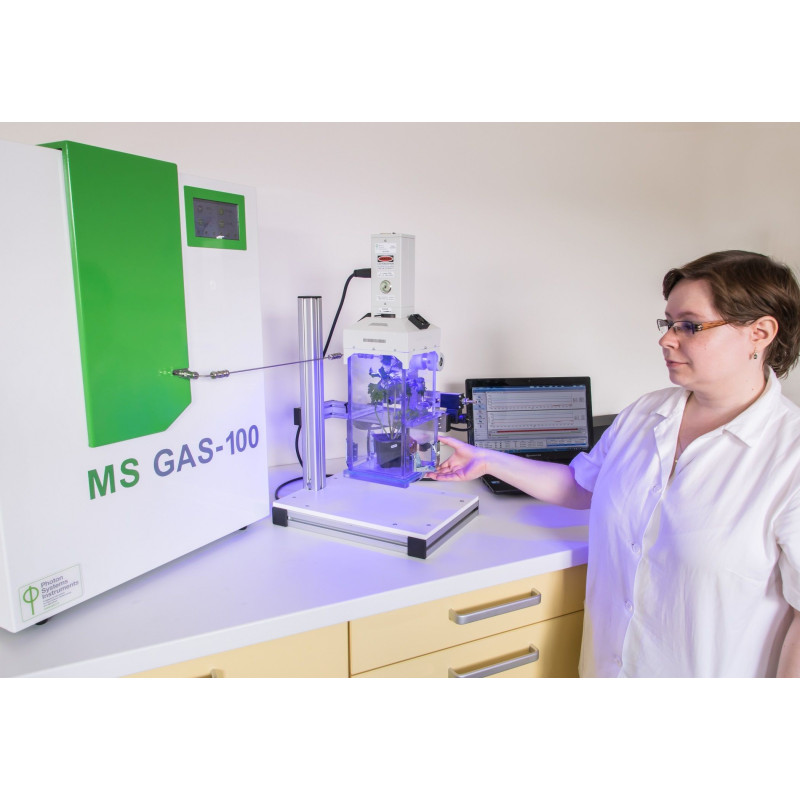

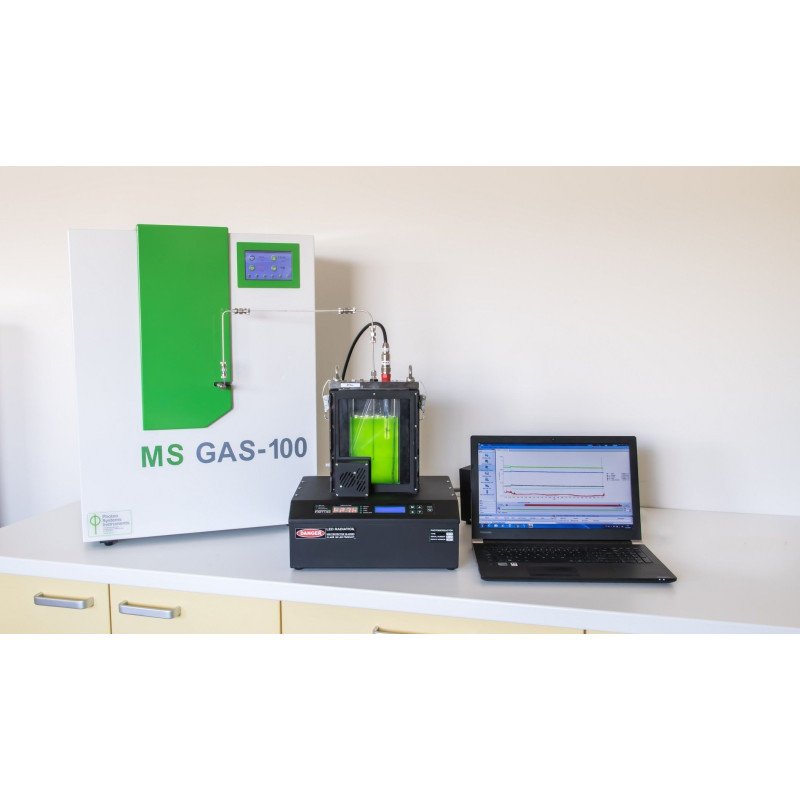

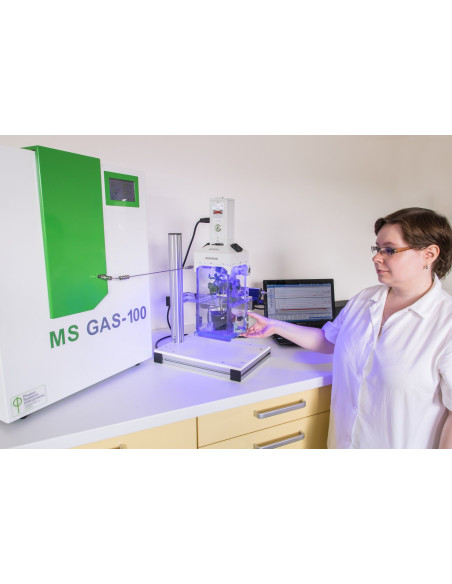

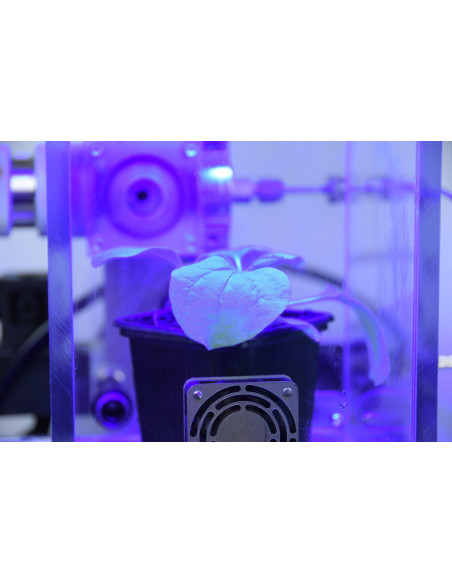

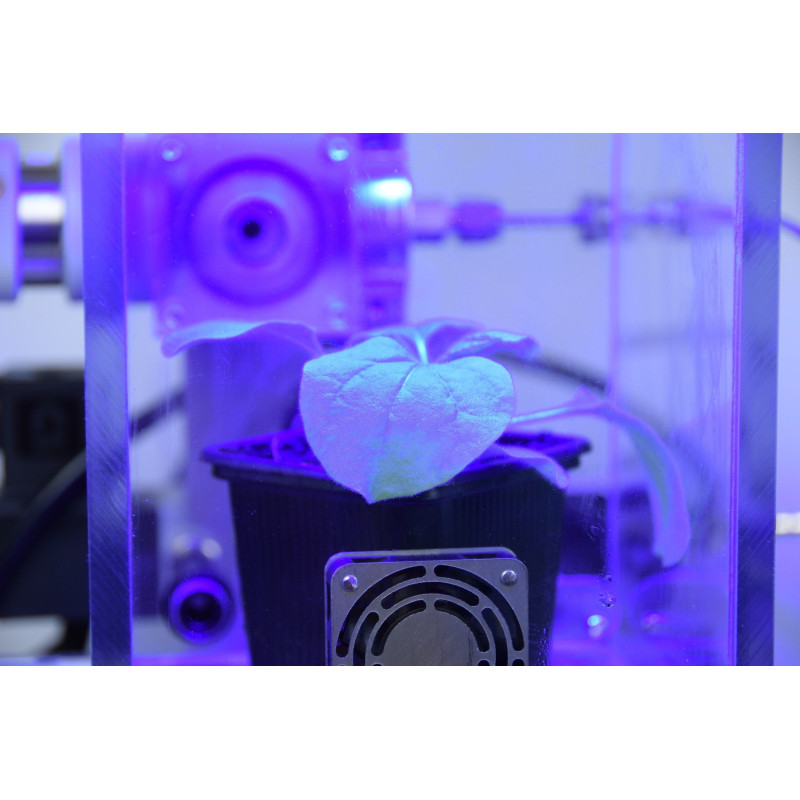

MS GAS-100 Gas Analyzer - Mass Spectrometer

    - Measurement of gas exchange states in gaseous and liquid samples
    - Long-term measurements of various gases and volatile species by a single device
    - Membrane-based inlet or needle valve inlet for atmospheric measurements and / or special gas and liquid applications
    - Accurate, sensitive and fast measurements

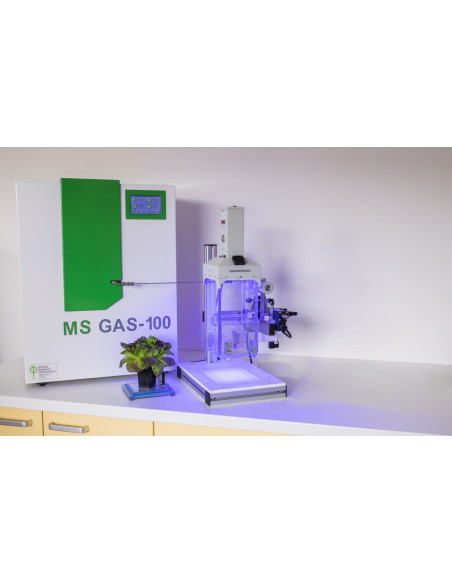

    - Compact design with modular inlet structures and multiple interface options for gas exchange analysis at the entire plant level or in cell suspensions
    - Highly efficient removal of water molecules by the water collector from the Stirling cooler for significantly increasing the life of the ion source
    - User-friendly software interface

Mass analyses of volatiles are determined using mass spectrometer of Prisma product line based on open ion source with electron impact, two independent filaments and single quadrupole mass analyzer with variable mass ranges of 1-100 (MS GAS-100), 1-200 (MS GAS-200) and 1-300 amu (MS GAS-300).

Two types of detectors are available for system; Farraday with sensitivity lower than 10 ppm and Continuous secondary electron multiplier (C-SEM) with sensitivity lower than 100 ppb.
A Highly effective vacuum pumping system is presented by the combination of a diaphragm backing pump MVP and a turbomolecular pump HiPace SplitFlow.
A Thermostat heating element performs vacuum chamber baking for cleanup from undesirable impurities inside of mass spectrometer. An Electronically controlled Stirling cooler ensures highly efficient suppression of water molecules background and significantly enhances ion source lifetime.
Moreover, the temperature of the water trap can be defined by the user, which enables to monitor special volatile species.
The Modular inlet options includes permeable membrane probe, needle inlet and gas dosing valve (manual).

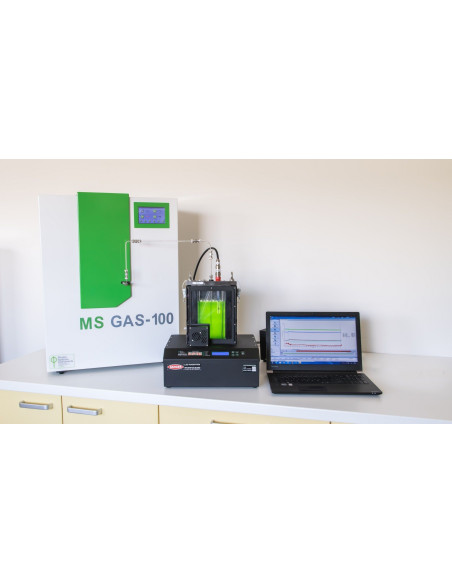

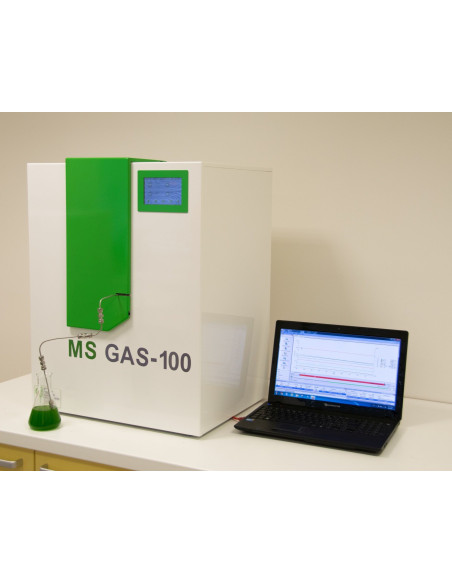

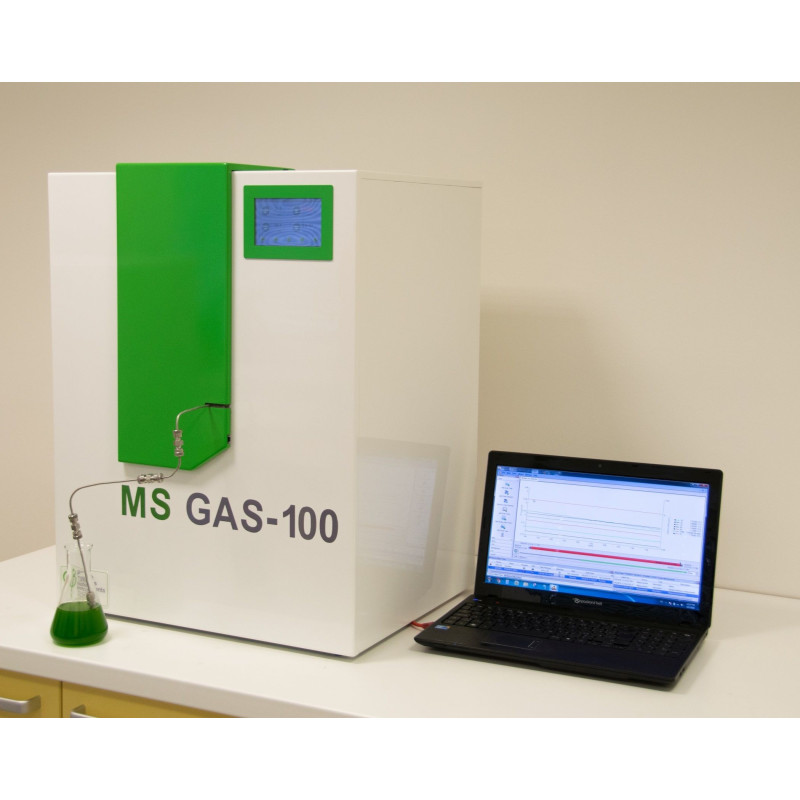

The Membrane probe inlet allows small levels of the dissolved species to pass through it, this type of inlet is suitable for liquid samples as well as for analysis in gaseous environments.
The Needle valve inlet is designed for direct measurements of volatiles in gaseous samples.
The basic version MS GAS-100 is equiped with high vacuum pressure sensor to determine the total pressure in the vacuum chamber and with an inlet pressure sensor to ensure the mass spectrometer protection.

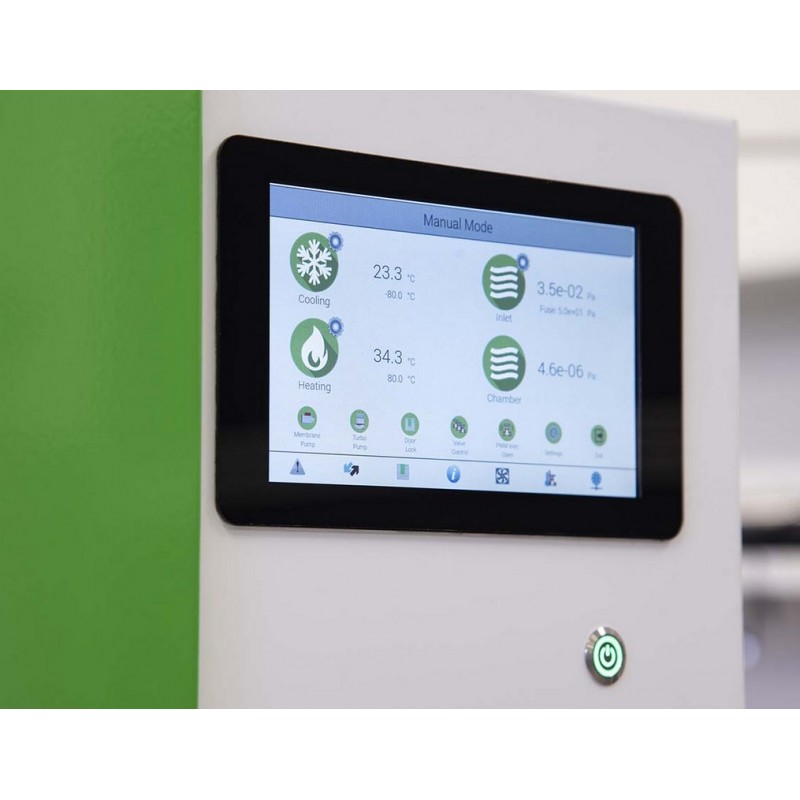

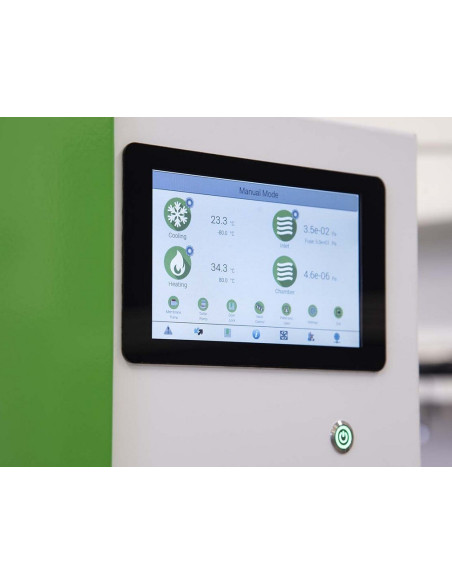

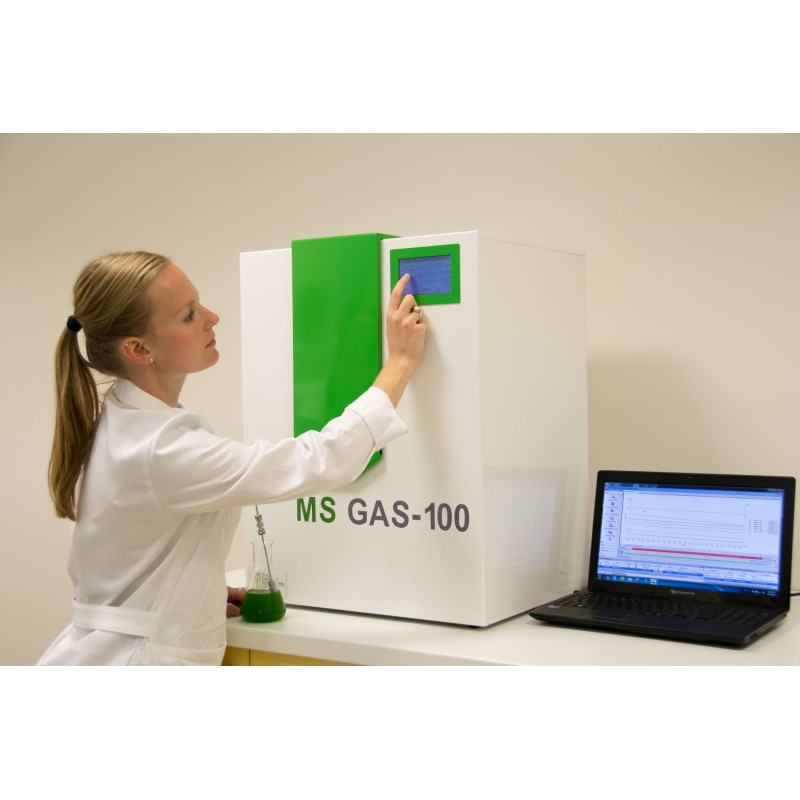

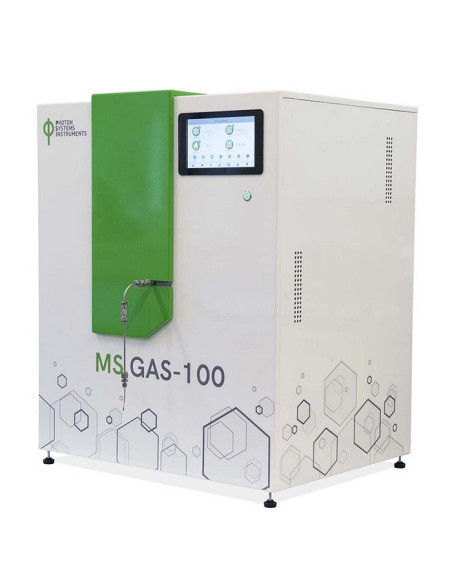

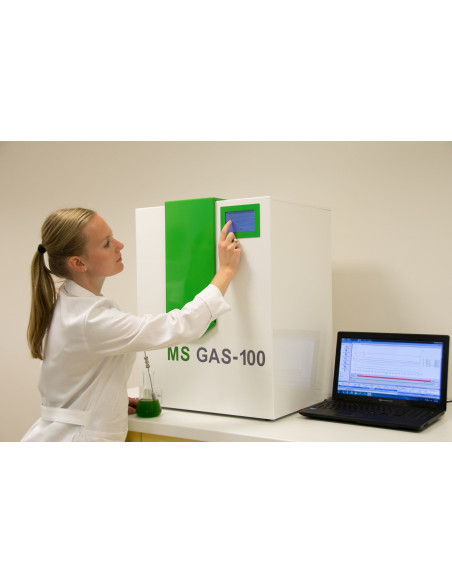

Intuitive setting of the device is available via an integrated touchscreen including manual mode with possibilities to change temperature of the heating/cooling system and to open/close the inlet valve, split-flow and safety valve.
The original firmware is also enriched with automatic functions for valve opening/closing based on signal from safety pressure sensors after device turn on.
The Mass spectrometer tuning and acquisition of measured data are performed by software "Quadera" (models with PrismaPlus RGA) and PV Mass Spec (models with PrismaPro RGA).
Both softwares permets user-defined protocol writing for numerous determinations of desired analytes.

- Measurement principle:
         Online measurements of gases, volatile organic compounds and / or solvents

      - Mass analyzer:
        Residual Gas Analyzer (RGA) PrismaPlus or PrismaPro (Pfeiffer Vacuum, Asslar, Germany)

      - Available mass range: 1-100 amu, 1-200 amu, 1-300 amu
         Ion source:
         Open version
         Two independent filaments (material: yttrium iridium)
         Electron impact

      - Detectors:
         Farraday: sensitivity ˂ 10 ppm
         Secondary Electron Multiplier (SEM): sensitivity ˂ 100 ppb

       - Vacuum system:
         HiPace turbomolecular pump (Pfeiffer Vacuum, Asslar, Germany)
         MVP Diaphragm Backup Pump (Pfeiffer Vacuum, Asslar, Germany)

      - Input options:
         Membrane probe (default PDMS)

      -  Heating system:
         Thermostat heating element 100 W - maximum achievable temperature 100 ° C

       - Refrigeration system:
         Integrated cooler water freeze trap - minimum achievable temperature -80 ° C
         Electronic control

      - Pressure sensors:
         High vacuum pressure sensor to measure the total pressure in the mass specification chamber Inlet pressure sensor for mass spectrometer protection

      - Integrated touch screen:
         System control and actual readings

      - BIOS:
         Upgradeable firmware

      - Communication port:
         Ethernet TCP / IP

        External PC:
         Portable with Quadera or PV Mass Spec software for mass spectrometry tuning and measured data acquisition

      - Dimensions: 54.5 x 72 x 45.5 cm

      - Total weight: 65 kg

      - Electrical: 110 - 240 V AC

Versions:
MS GAS-100 with Farraday detector
MS GAS-100 with Farraday and Secondary electron multiplier (C-SEM) detector

MS GAS-100 standard version:

• Turbomolecular pump HiPace (Pfeiffer Vacuum, Asslar, Germany)
• Diaphragm backing pump MVP (Pfeiffer Vacuum, Asslar, Germany)
• Detector – Farraday cup
• Residual gas analyzer (RGA) PrismaPlus or PrismaPro with mass range 1-100 amu (Pfeiffer Vacuum, Asslar, Germany)
• Open ion source with two independent filaments (material: yttriated iridium) – ionization method: electron impact
• Thermostat heating element
• High vacuum pressure sensor
• Inlet pressure sensor
• Integrated Stirling cooler
• Short membrane probe (PDMS default) – length 15 cm
• Long membrane probe (PDMS default) – length 30 cm
• Electrical cable
• Notebook
• Ethernet cable with crossed wires
• SW Quadera – licence

Possible versions of Mass Spectrometer:

The MS GAS can be used in numerous applications:
Biotechnology of plants, alga, yeasts, bacteria and others, in biochemical methods, environmental analyses and many other related fields.
