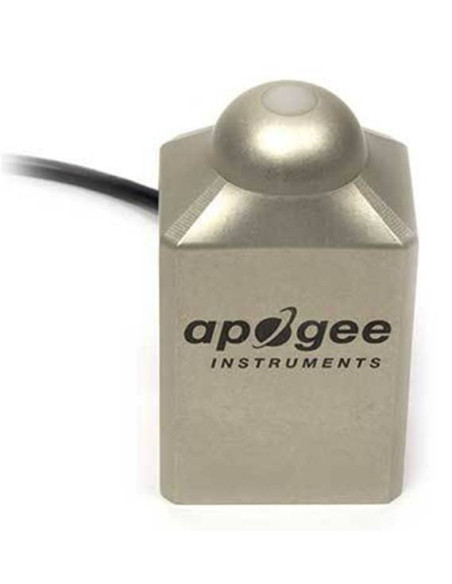

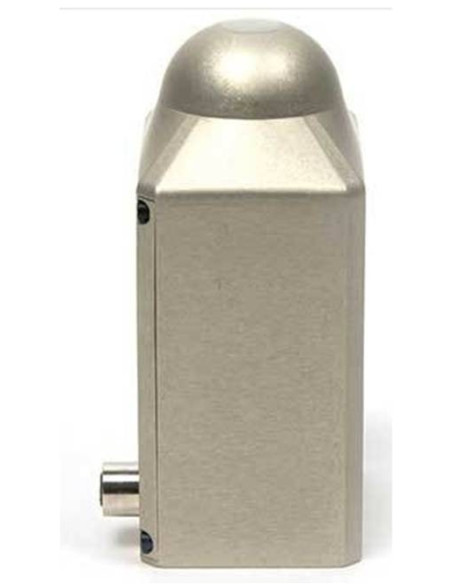

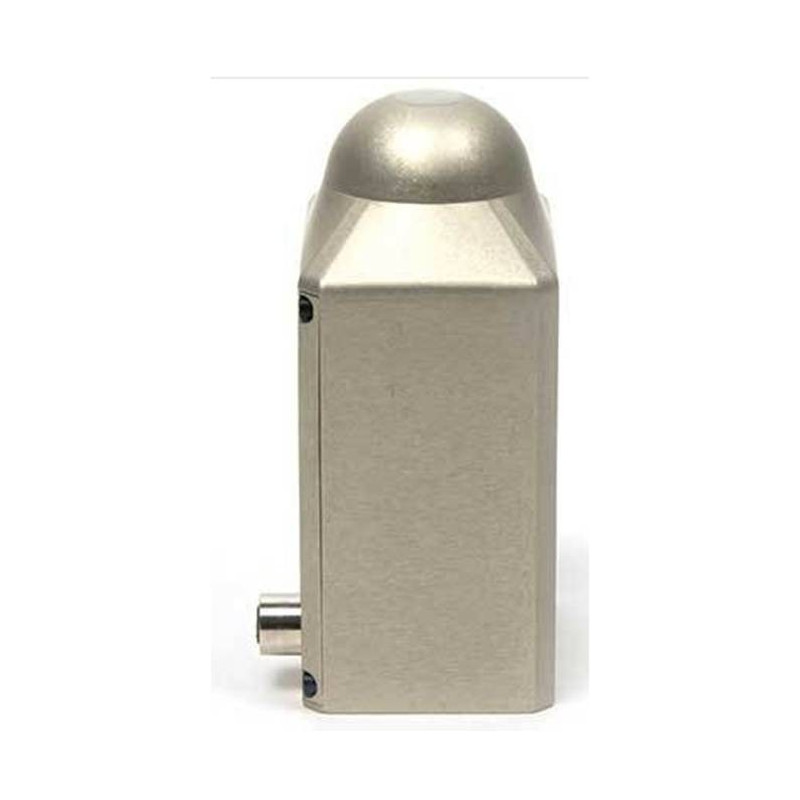

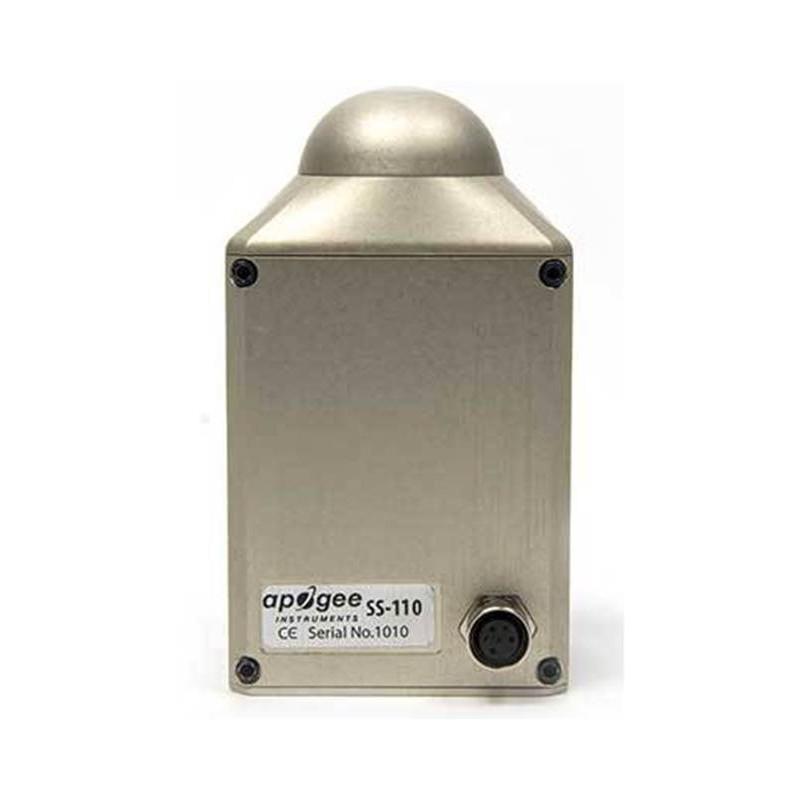

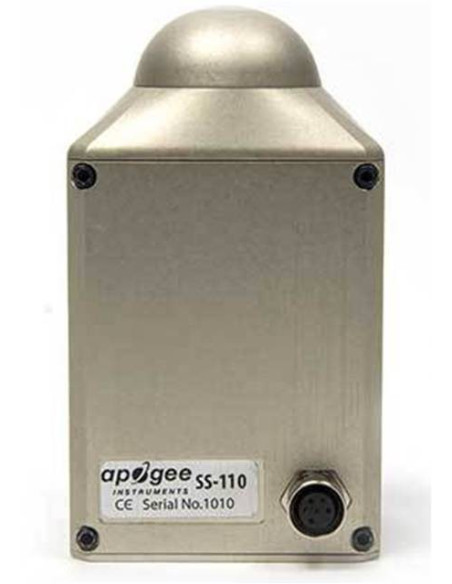

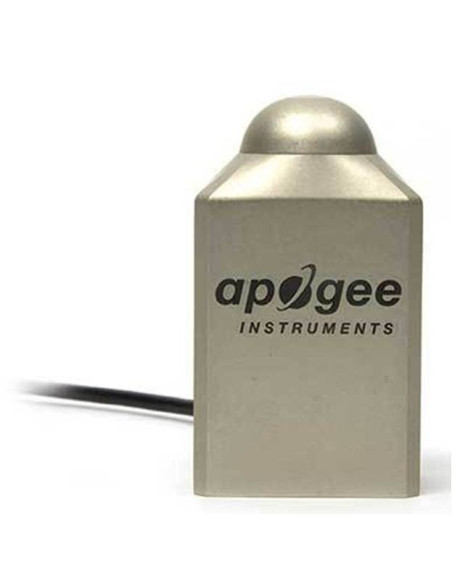

SS-110 Apogee Field Spectroradiometer (340 to 820 nm)

SS-110

Apogee Instruments

New

Buying in quantity or just want some useful advice?
Call +34 916292106 or complete our form
More info about this product.

4 170,00 €

tax excl.

Add to wishlist

The Sensor measures: Spectroradiometry

The SS-110 measures a wavelength range of 340 to 820 nm. The spectroradiometer is an easy-to-use, cost-effective, versatile spectral measurement system that can be interfaced to a computer. Typical applications include measurement of spectral output (energy flux density, photon flux density, or illuminance) of different radiation sources (often for plant or human lighting), and reflectance and transmittance measurements of natural and synthetic surfaces and materials (often plant leaves and canopies).

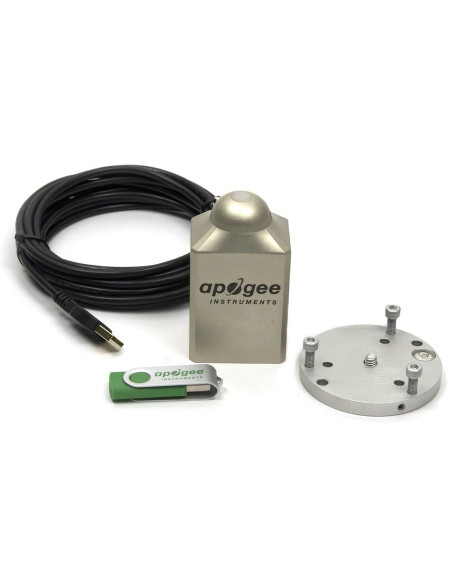

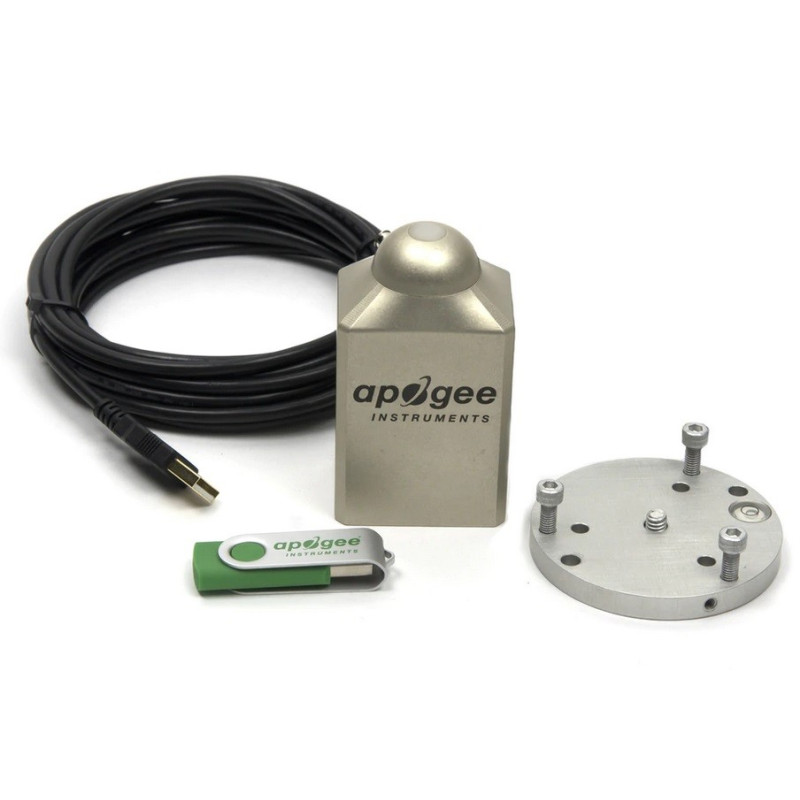

The SS-110 set includes:

- Spectroradiometer unit and cosine corrected detector mounted in the housing

- 180° FOV head and black cap

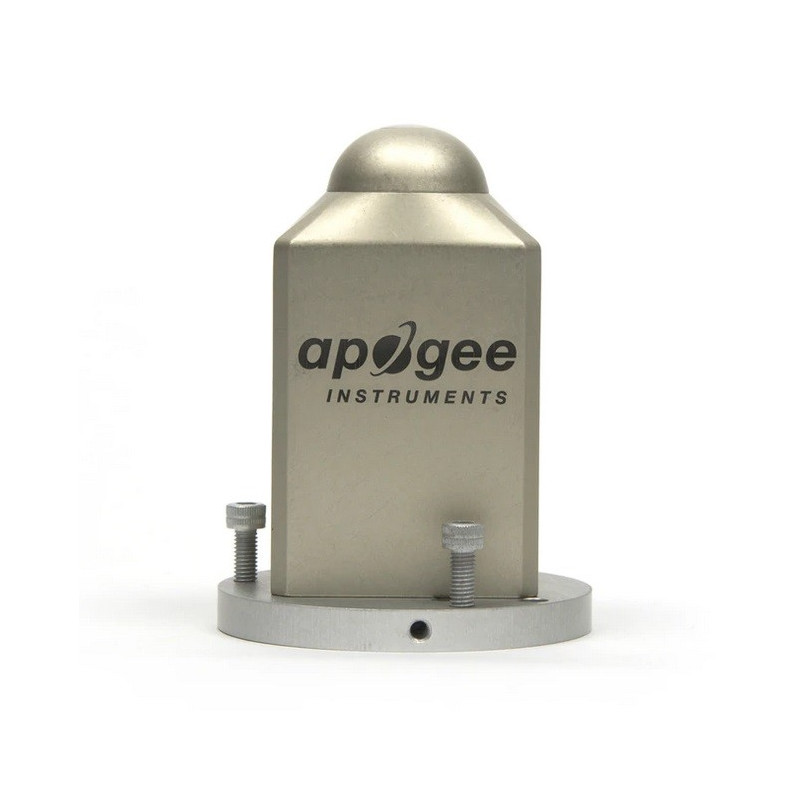

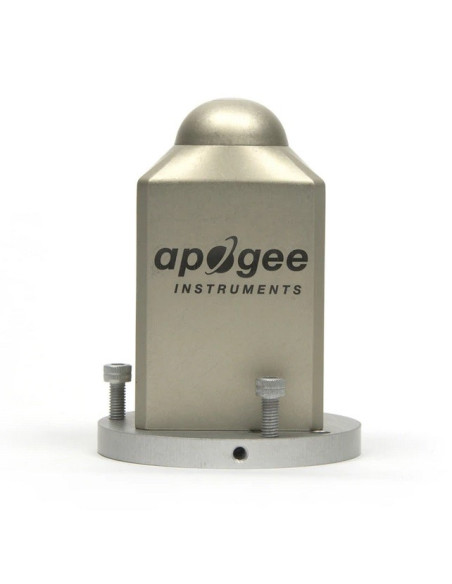

- AL-200 bubble-level
- USB cable for computer interface
- 2GB USB drive with Apogee Spectrovision software (Windows compatible, XP and later; Mac compatible, 10.10 and later) and required drivers

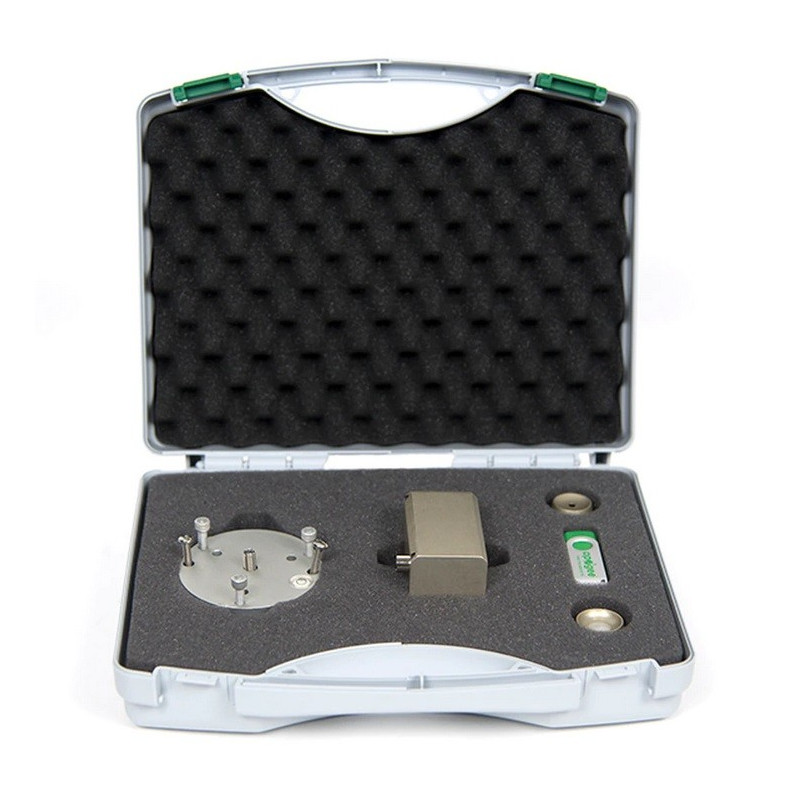

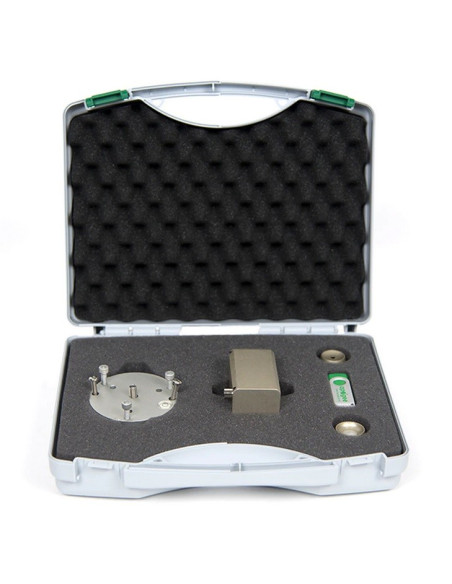

- Carrying case



- Wavelength range 340 to 820 nm

- 1 nm wavelength measurement range

- Wavelength resolution 3.0 nm (full width, half maximum)

- Wavelength accuracy ± 0.5 nm

- Wavelength repeatability ± 0.2 nm

- Analog to digital resolution 14 bit

- Signal to noise ratio 1500: 1 signal)

- Stray light ≤ 0.25% at 590 nm

- Dark noise ≤ 3 counts

- Integration time Range 10 ms to 10 s

- Linearity Less than 1% or 0.5%

- Measurement sensitivity More than 10% of maximum sensitivity for wavelengths greater than 380 nm

- Measurement repeatability Less than 1.0% (wavelengths greater than 400 nm)

- Directional response (cosine) ± 5% at 75 ˚ zenith angle

- Viewing areas 180 ˚ (up), 25 ˚ or 150˚ (down)

- Response temperature -0.1 ± 0.1% per C

- Irradiance Calibration uncertainty ± 5% current

- Current Draw 190 mA during measurement and when idle (USB)

- Power requirement 1 W (USB)

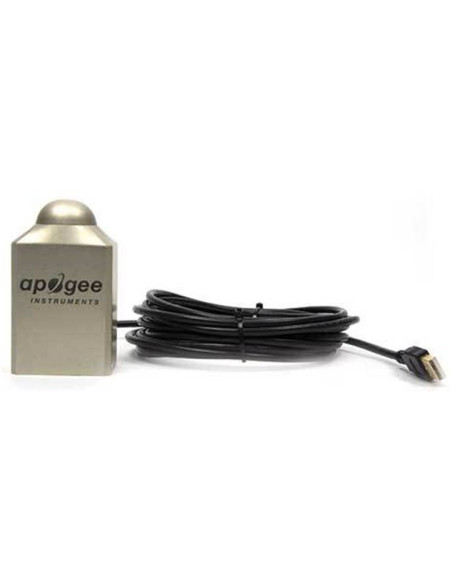

- Interface cable 5 m PVC sleeve with USB (for computer)

- Apogee Spectrovision software (compatible with Windows XP and later; Mac compatible, 10.9 and later)

- Operating environment -20 to 70 C, 0 to 100% relative humidity

- Thread size (for mounting) 1/4 "- 20

- Dimensions 89.3 mm high, 50.8 mm wide, 38.1 mm deep Mass 300 g

- 1 year warranty against defects in materials and workmanship
