StellarCASE-LIBS Analyzer Portable Elemental Analysis

StellarCASE-LIBS

StellarNet Inc

New

StellarCASE-LIBS System Overview

- Portable Laser Induced Breakdown Spectroscopy (LIBS) System

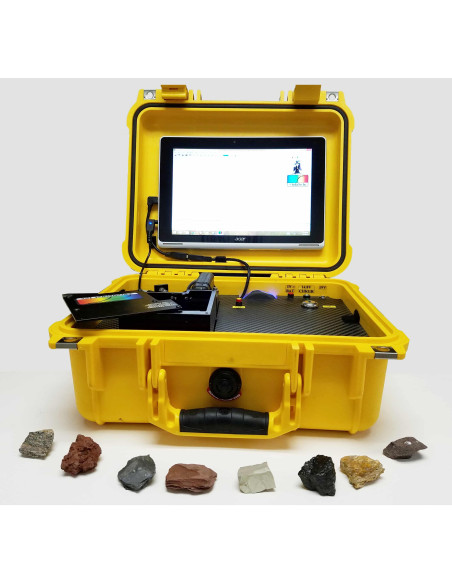

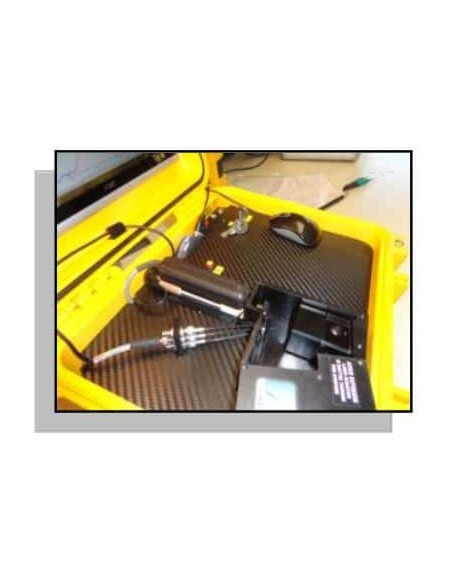

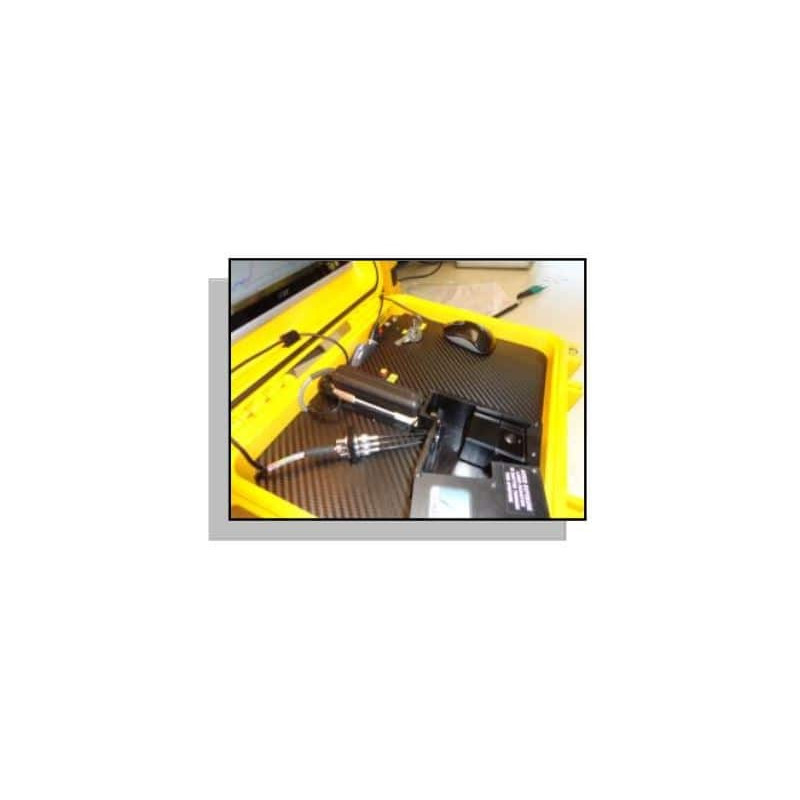

- The StellarCASE-LIBS includes interior mounting of spectrometer instrumentation pre-configured with no additional setup required
- Internal main power control system with ON, OFF, & Charge buttons and an 8 hour battery life for portable field applications
- SpectraWiz-ID for real time qualitative elemental analysis
- The system is completed with a safety key lock and an 8 hour battery lifetime for field use and portable application

Add to wishlist

Type of Instrument Instrument for Elemental Analysis
The instrument measures: LIBS (Laser Spectroscopy)
  • StellarCASE-LIBS Key Features:

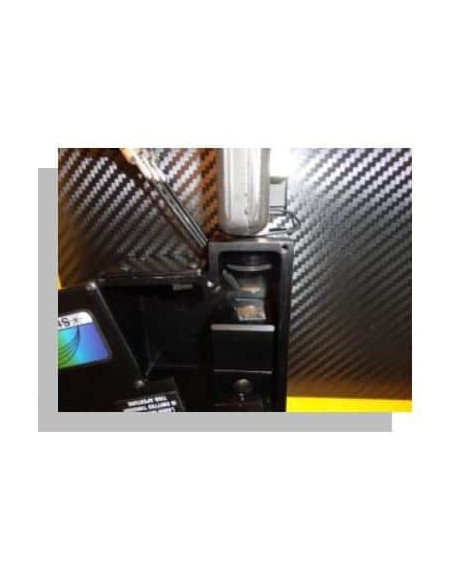

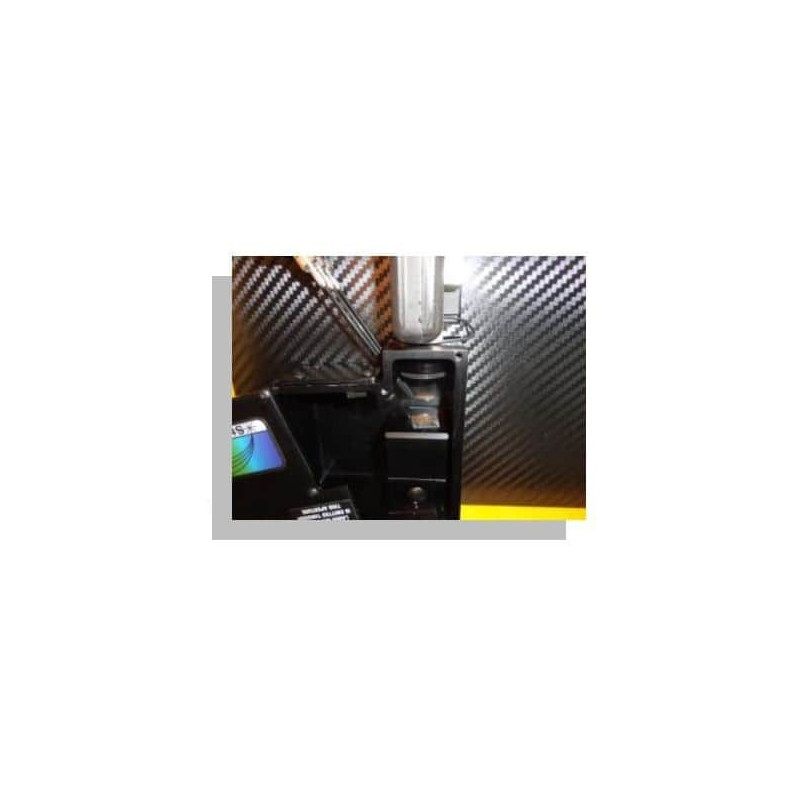

- The LIBS sample chamber mounts directly into the system’s acrylic mounting surface for direct easy access and includes a safety interlock.
- The systems excitation source is the world’s smallest 1064nm NDYaG laser with 25mJ per pulse. Once the laser strikes your sample a PLASMA is created which will cool and emit radiation specific to the elements inside your sample.
- The StellarCASE comes pre-configured with spectrometer instrumentation to covers 200-800nm with <0.2nm optical resolution. These spectrometers capture your samples emitted light spectrum and send the data to a top mounted tablet with factory installed SpectraWiz ID™ Software for elemental analysis.
- The StellarCASE features an internal main power control system with ON, OFF, & Charge buttons.
- The system is completed with a safety key lock and an 8 hour battery lifetime for field use and portable application and comes with AC power adapters for use in your laboratory or classroom.


  • StellarCASE-LIBS Applications:

- Industrial materials analysis
- Prospecting & Mining
- Environmental monitoring
- Homeland security measures
- Military chemical and biological agents
- Forensics analysis
- Pharmaceutical R&D
- Gemology and Counterfeit detection
- Nutrient Solution Ingredients of Metals Fe, Mn, Zn, Mg, K, P, N. etc.


  • LIBS Elemental Identification Software:

- SpectraWiz-ID application for “elemental matching” is pre-installed
- Elemental results are displayed on your screen with data logging capability
- Reporting and matching threshold control.  Adjust tolerance windows, intensity/concentration reporting thresholds, mask unwanted reported elements, discard plural matches, sort by highest concentration
- Elemental Library contains multiple emission wavelength for each element and is user adjustable


  • StellarCASE-LIBS Sample Spectra:
