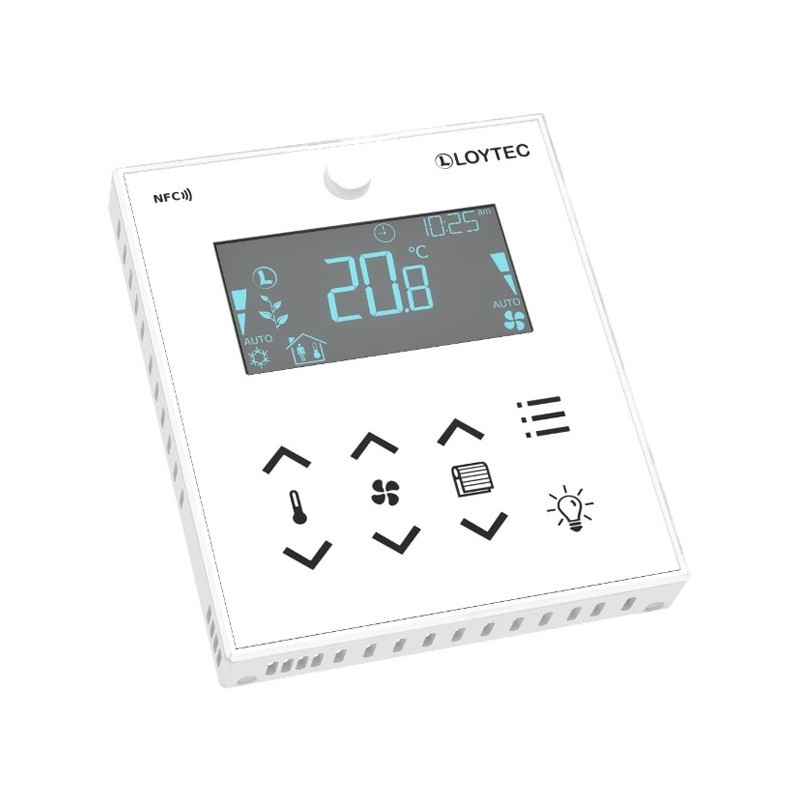

L-STAT-L6 Room Control Panel, 8 buttons, Temp. up/down, Fan up/down, Shutters up/down, Light and menu

Fuehler Systeme


 Room operator panel device
 8 x Button with temperature up/ down, fan up/ down, sunblinds up/ down, light, and menu

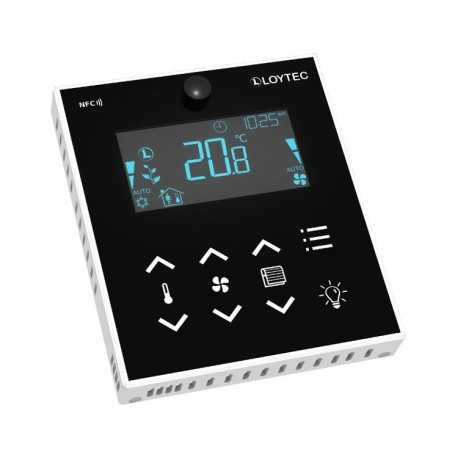

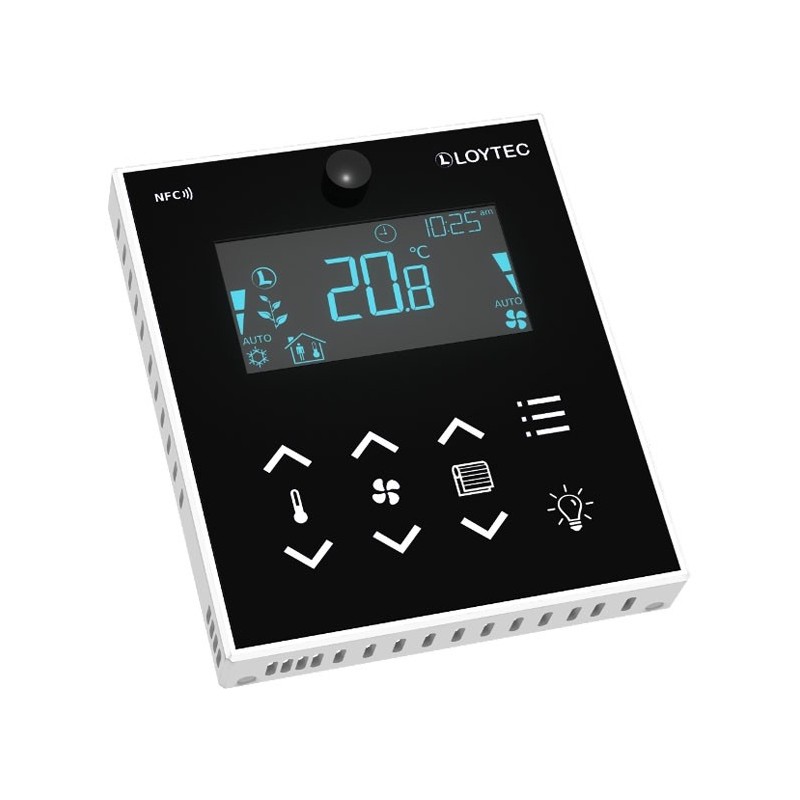

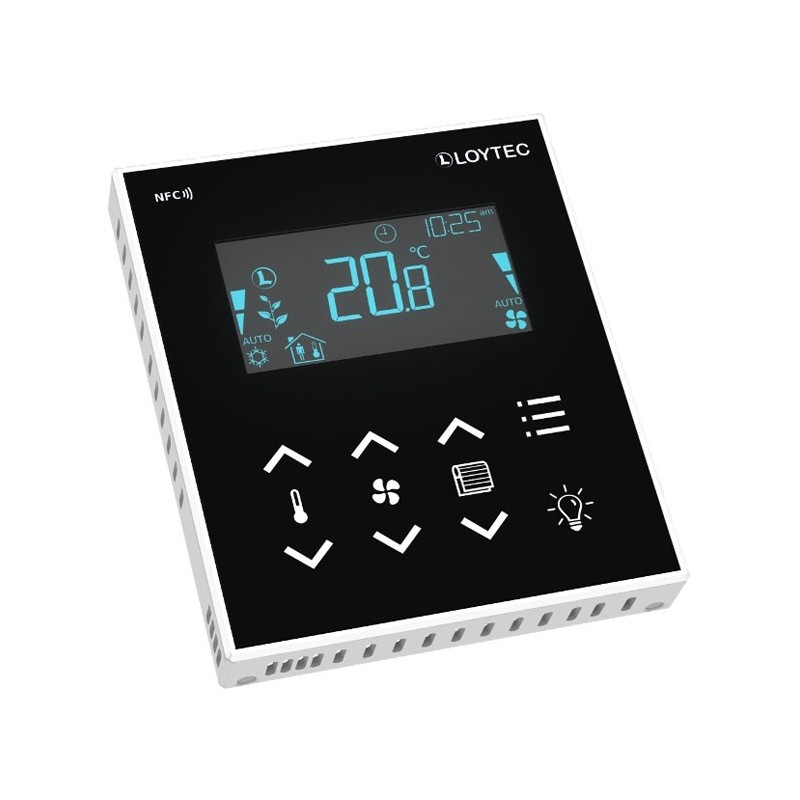

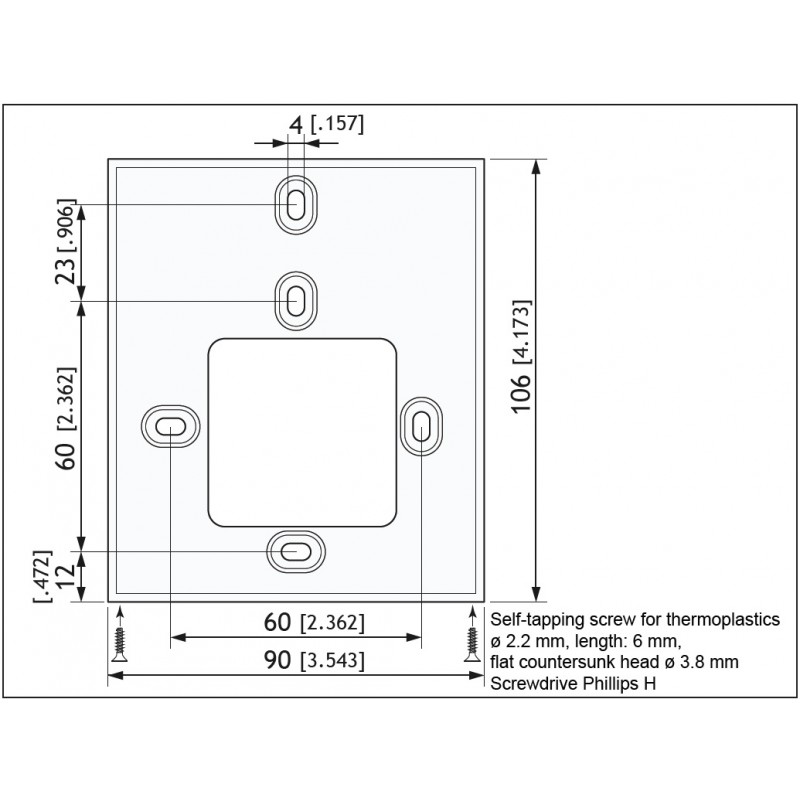

 Front in black or white
 Modbus, NFC
 Temperature, rel. Humidity, ext. switch/NTC, infrared receiver

230,00 €

Add to wishlist

Type of Instrument Room Control Panel

- Modbus RTU interface for integration into controllers
- Easy integration into LOYTEC controllers such as L-INX, L-ROC or LIOB-AIR
- Segmented LCD display
- LCD RGB backlight color can be adjusted via network
- Display time and date
- Symbols for eco-friendliness level (green leaves)
- Up to 8 buttons (capacitive touch)
- Temperature sensor
- Humidity sensor
- 3 digital inputs (dry contact)
- 1 universal input (digital/NTC10k)
- NFC (Near Field Communication) with content configurable via network
- Buzzer to provide acoustic feedback for the touch buttons or to indicate alarms
- Two access levels (end user, system integrator), which are secured via 4-digit pin codes
- Enclosure color options black and white
- Optional occupancy sensor (LSTAT-801 and LSTAT-802 models only)
- Optional CO2 sensor (LSTAT-802 models only)
- Optional EnOcean interface (custom models only) to work as remote EnOcean transceiver for LOYTEC controllers.

The L-STAT is a room operator panel device with a modern, minimalistic look that fits any interior design. It is directly connected to a LOYTEC controller with a Modbus interface such as LIOB‑AIR or L‑ROC.

Up to 16 L-STAT devices can be connected to one controller. This offers control at different locations in- or outside even for the largest rooms. The L-STAT is equipped with a segmented LCD display featuring an RGB backlight with adjustable color, offering a neat way to make the L-STAT match the interior color concept of an office building. Eight capacitive touch buttons are used to cycle through sensor values, display parameters, and adjust setpoints. Up to four external buttons can be accessed and processed by the controller.

The internal sensors of the L-STAT measure temperature, humidity, dew point, occupancy, and CO2 level. Sensor values can be displayed in SI or US units. Additionally, the date and time as well as the current level of eco-friendliness in the form of green leaves are also displayed on the LCD display. Parameters controlled by the controller’s logic can be overridden on the L-STAT, such as for occupancy, air conditioning, and ventilation. A direct access mode is available to quickly adjust the most important setpoints e.g. for temperature and ventilation control.

A buzzer provides an acoustic feedback for the touch buttons and can also be used to indicate alarms and error states. To prevent unauthorized modifications, two access levels (end user, system integrator) are used, which are secured via 4-digit pin codes. Device replacement, firmware upgrade, and L-STAT configuration are performed with very little effort through the controller. The L-STAT device is represented in the controller by a simple data point interface, which can be directly connected to the IEC 61131 or IEC 61499 logic application and offers all common functions for data points such as alarming, scheduling, trending, historic filters, math functions, etc.

L-STAT is available in three different hardware versions, with six different button layouts, and two front cover color options (36 models in total).

By the use of a NFC tag, the L-STAT transmits the URL of the controller’s web interface to mobile devices for more extensive control and administrative tasks. Last but not least, the L-STAT comes with a built-in infrared receiver for comfortable remote control of the room’s lights, sunblinds and HVAC system via the optionally available IR remote control L-RC1.
