New

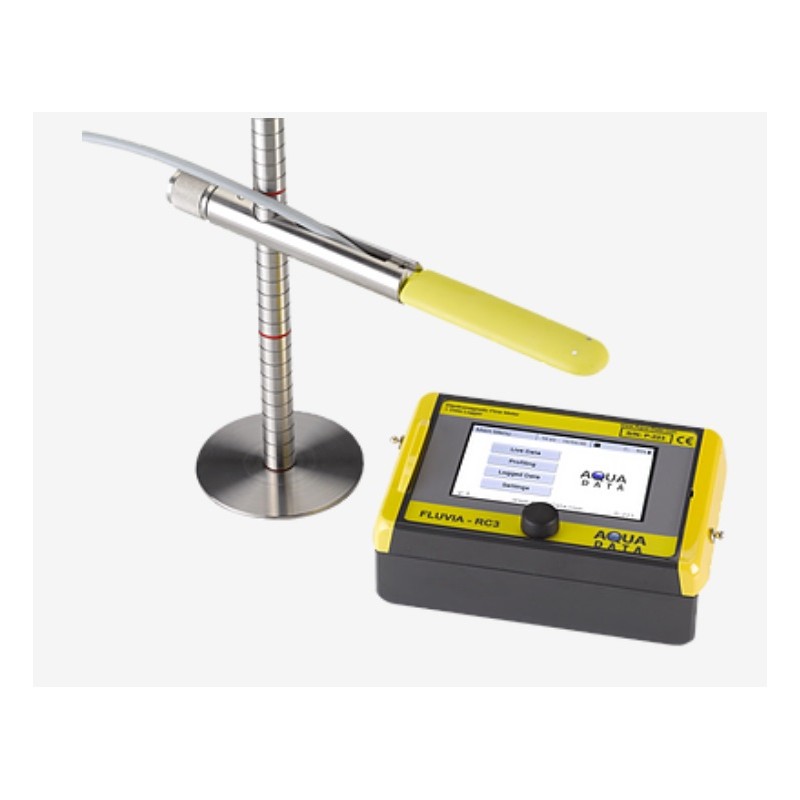

The FLUVIA RC3 flow meter is a portable electromagnetic device that measures the velocity of water to determine its flow.
This product is no longer in stock
Availability date:
The Sensor measures: | Water Flow |
The hydrodynamic shape and small probe size of the Fluvia RC3 allows measurements close to a fluid surface, channel bed or pipeline wall, and with no moving parts, it does not retain debris - guaranteeing accuracy and reliability.
The FLUVIA RC3 can be tailored to the user’s ideal setup, meaning the units, date and time, language and data logging methods are easily changeable.
An optional GPS is also available which would auto set the time as well as provide accurate location information for each data point.
► Key Features:
• Electromagnetic sensor unaffected by temperature variations, density changes, sediment and water clarity
• IP67 Environmental Rating
• Hands-free operation
• Rechargeable, 20hrs continuous use battery life
• Multilingual – English, French, German, Spanish, Dutch, Danish - other languages on request
• GPS, Bluetooth and GSM (Cellular network) support
• Two sensor types are available
- Recording of up to 12,000 data points
► Customisable Set Up:
The FLUVIA RC3 can be tailored to the user’s ideal setup, meaning the units, date and time, language and data logging methods are easily changed.
An optional extra of GPS is also available which will auto-set the time as well as provide accurate location information for each data point.
► River Profiling:
The FLUVIA RC3 is capable of generating a computed river flow profile, allowing more detailed analysis of a river.
►Note:
1. Non-standard cable lengths are available for special orders only and may have extended lead times due to the need for special calibration. 2. Extended Cables: Additional cable length may reduce battery life compared to the stated figures. 3. Range Extension to 6 m/s: Probe data is extrapolated to 6 m/s, and the result is tested via simulation. Probes are not physically calibrated to 6 m/s, and the calibration certificate only applies to speeds up to 3 m/s.
►Option 1 Bronze: Fluvia RC3-B System (Ref.: FV10001) consisting of:
Fluvia RC3 surface-mounted control/display electronics housed in an IP67-sealed yellow/gray ABS case with a carrying strap.

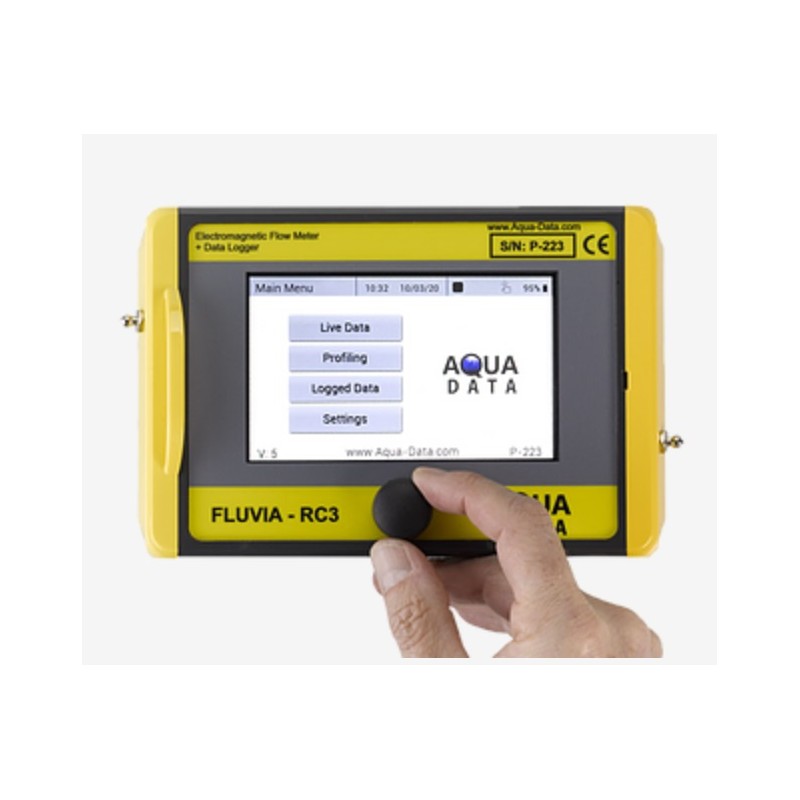

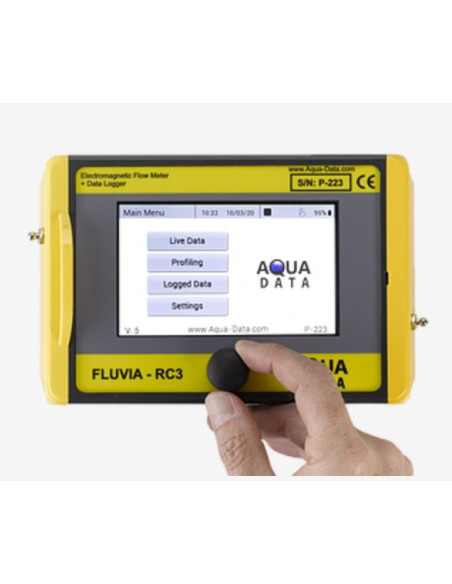

The unit features a full-color graphic display with full touchscreen control and a water-resistant encoder dial.
The language can be set to English, French, German, Dutch, Danish, Spanish, and any other language upon request.
The unit features convenient sound effects to indicate registration, out-of-range, etc.
The unit features a serial output and a rechargeable battery that allows 20 hours of continuous operation. See options/accessories below.
Contains:
• Fluvia RC3
• Sensa RV4X “Mini” speed probe with standard 3 m cable

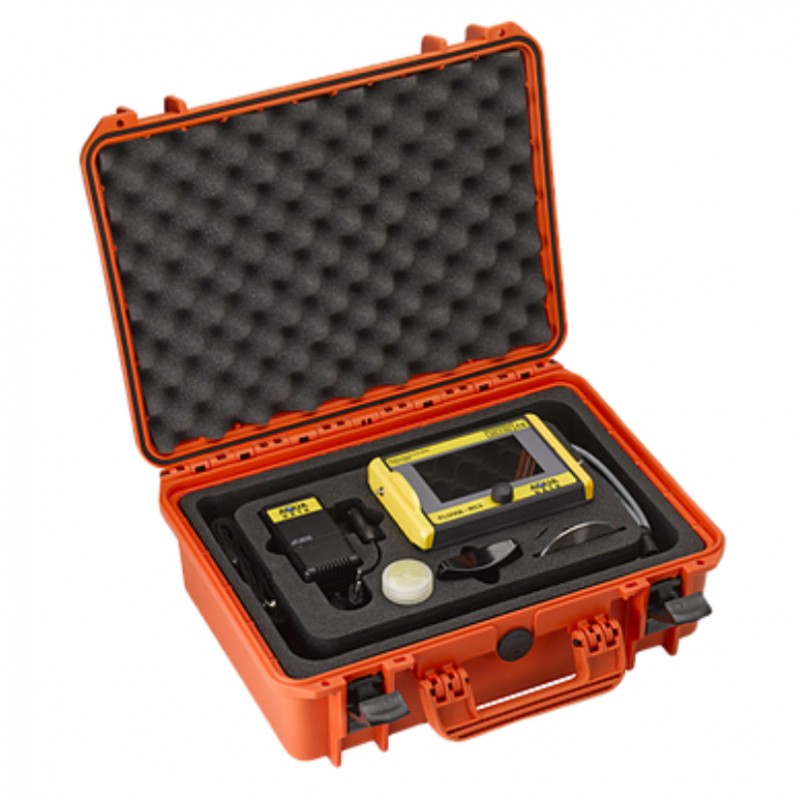

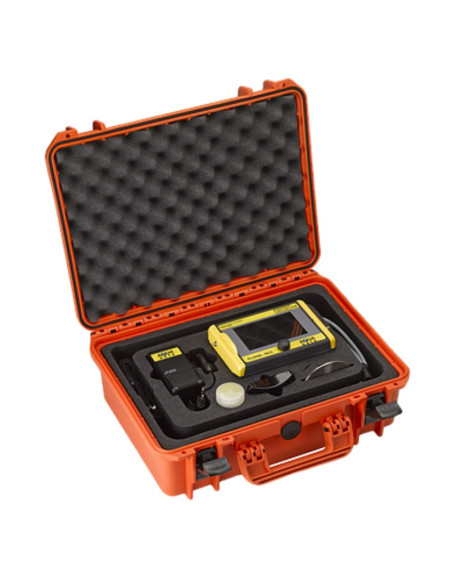

• Orange Pelicase

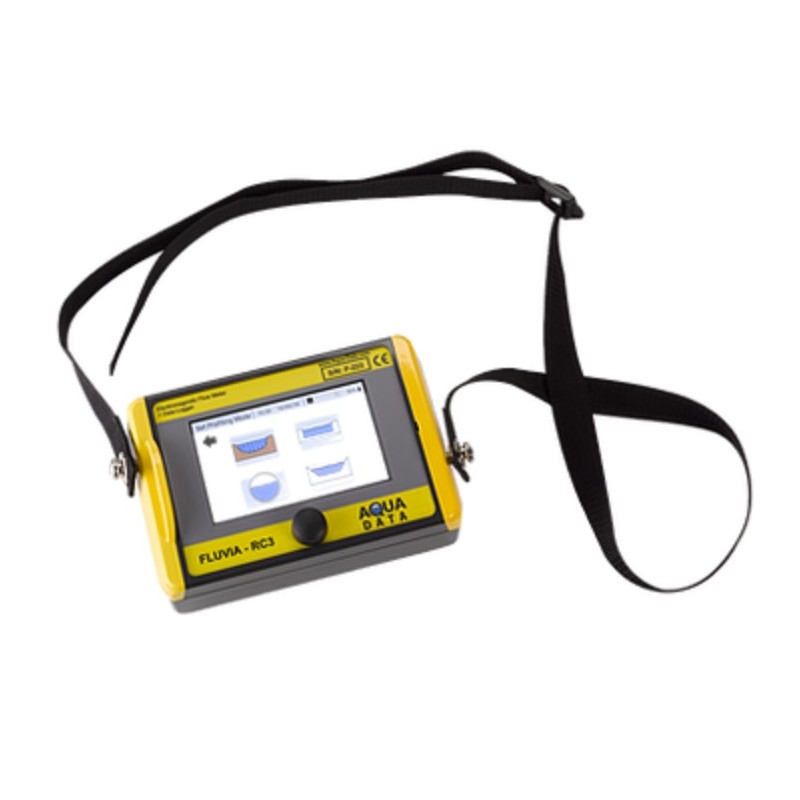

• Fluvia RC3 shoulder strap
• Fluvia RC3 charger
• Fluvia RV4X cleaning fluid
• Quick start guide (foam inside the lid)
• Calibration certificate (foam inside the lid)
_________________________________________________________________________________________________________________
►Option 2 Silver: Fluvia RC3-S System (Ref.: FV10002) consisting of:
Fluvia RC3 surface-mounted control/display electronics housed in a yellow/gray ABS casing sealed to IP67, with a carrying strap.
The unit features a full-color graphic display with full touchscreen control and a water-resistant encoder dial.
The language can be set to English, French, German, Dutch, Danish, Spanish, and any other language upon request.
The unit features convenient sound effects to indicate registration, out-of-range, etc.
The unit features a serial output and a rechargeable battery that allows 20 hours of continuous operation. See below for options/accessories.
Contains:
• Fluvia RC3
• Sensa RV4X “Mini” speed probe with standard 6m cable
• Orange Pelicase
• Fluvia RC3 shoulder strap
• Fluvia RC3 charger
• Fluvia RV4X cleaning fluid
• Quick start guide (foam hidden behind the lid)
• Calibration certificate (foam hidden behind the lid)
• 3 tubular 316 stainless steel rods, 500mm long
• Wading rod carrying bag
• Standard clamp/knurled knob compatible with Sensa RV4X probe
• Base plate
• Directional handle
• Allen key
__________________________________________________________________________________________________________
►Option 3 Gold: Fluvia RC3-G System (Ref.: FV10003) consisting of:
Fluvia RC3 surface-mounted control/display electronics housed in a yellow/gray ABS casing sealed to IP67, with a carrying strap.
The unit features a full-color graphic display with full touchscreen control and a water-resistant encoder dial.
The language can be set to English, French, German, Dutch, Danish, Spanish, and any other language upon request.
The unit features convenient sound effects to indicate registration, out-of-range, etc.
The unit features a serial output and a rechargeable battery that allows 20 hours of continuous operation. See below for options/accessories.
Contains:
• Fluvia RC3
• Sensa RV4X “Mini” speed probe with 6 m standard cable
• Orange Pelicase
• Fluvia RC3 shoulder strap
• Fluvia RC3 charger
• Fluvia RV4X cleaning fluid
• Quick start guide (foam hidden behind the lid)
• Calibration certificate (foam hidden behind the lid)
• 6 tubular 316 stainless steel rods, 500 mm long
• Wading rod carrying bag
• Standard clamp/knurled knob compatible with Sensa RV4X probe
• Base plate
• Directional handle
• Allen key
• Universal clamp compatible with straight clamp
• USB-to-serial download cable
