DIN-RAIL 1A Output Rogowski coil integrator AO-DA01-5

Reference AO-DA01-5

Condition: New

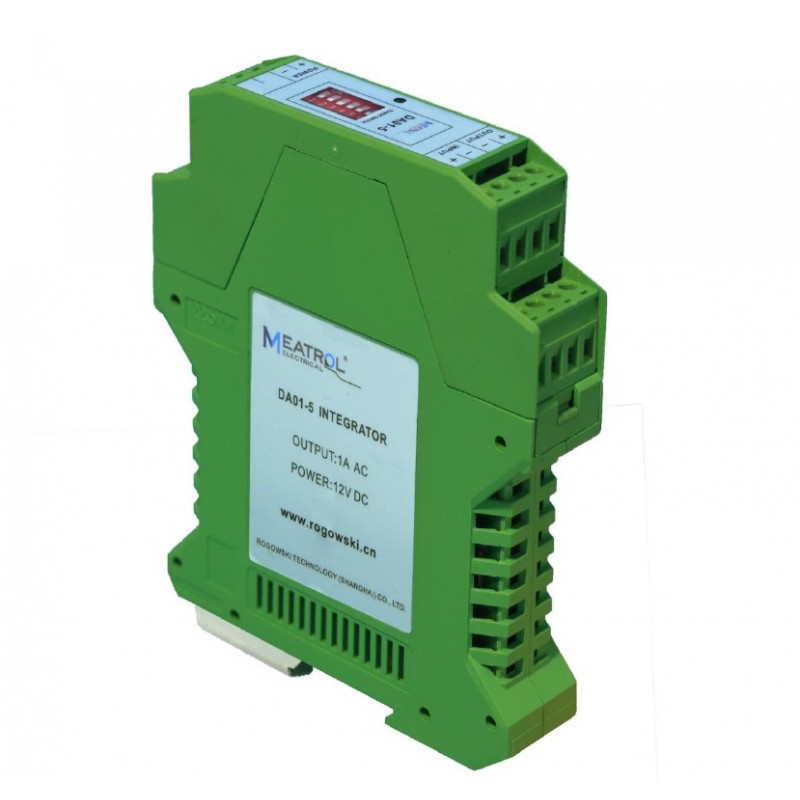

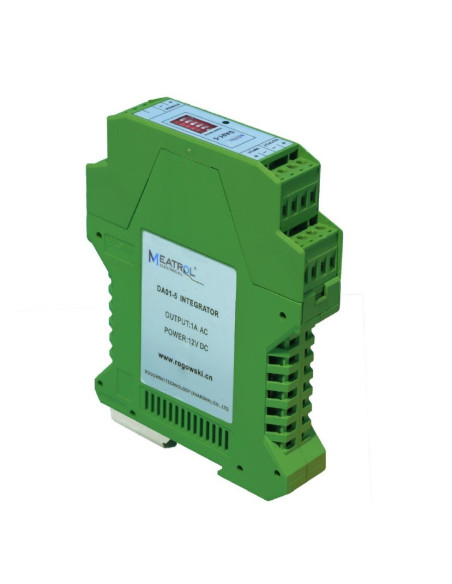

AO-DA01 is a DIN-RAIL 1A Output Rogowski coil integrator installation in distribution box,in a plastic 1 module DIN-RAIL enclosure, powered directly from the mains.

More info about this product.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

OVERVIEW
SPECIFICATIONS
MODELS
Data sheet
Download

The Sensor measures:	AC Current

AO-DA01-5 Data Sheet Download (439.53k)

AO-DA01 can be combined with any model and size of Y-FCT or FCT Rogowski coils.

The available values are: 0-1A AC.

On request the input value can be customized according to the application.

AO-DA01 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.

Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.
