HFP01-05 Heat flux plate

HFP01-05

Hukseflux

New

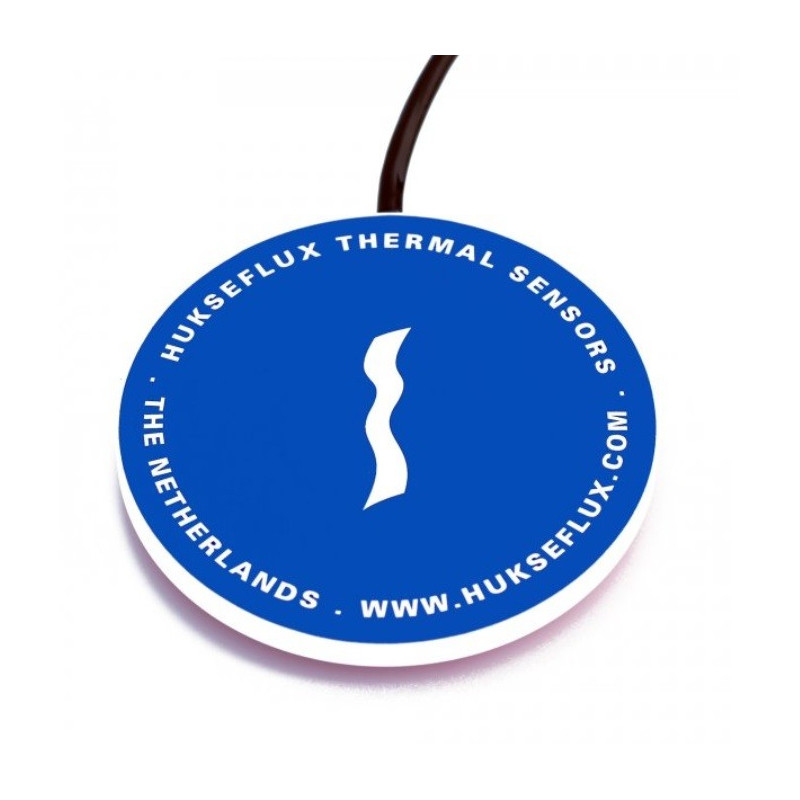

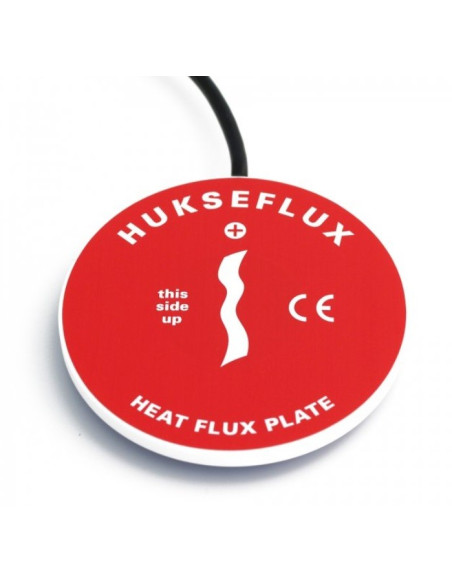

HFP01 is the world’s most popular sensor for heat flux measurement in the soil as well as through walls and building envelopes. The total thermal resistance is kept small by using a ceramics-plastic composite body. The sensor is very robust and stable. It is suitable for long term use on one location as well as repeated installation when a measuring system is used at multiple locations. If measuring in soil, in case a more accurate measurement is needed the model HFP01SC should be considered.

475,00 €

Add to wishlist

The Sensor measures: Temperature
Cable Length: 5 meters
Sensor IP Rating IP67

HFP01 is the world’s most popular sensor for heat flux measurement

HFP01 measures heat flux through the object in which it is incorporated or on which it is mounted, in W/m².
The sensor in HFP01 is a thermopile. This thermopile measures the temperature difference across the ceramics-plastic composite body of HFP01. A thermopile is a passive sensor; it does not require power. Using HFP01 is easy.
It can be connected directly to commonly used data logging systems.
The heat flux in W/m² is calculated by dividing the HFP01 output, a small voltage, by the sensitivity.
The sensitivity is provided with HFP01 on its calibration certificate.
A typical measurement location is equipped with 2 or more sensors.
HFP01 is the world’s most popular sensor for heat flux measurement in the soil as well as through walls and building envelopes.

Robust and very stable

The HFP01 is equipped with heavy-duty cabling, protective covers on both sides and potted so that moisture does not penetrate the sensor, HFP01 has proven to be very robust and stable.
It survives longterm installation in soils, as well as repeated installation when a measuring system such as TRSYS01 is used at multiple locations.

Measurement:    heat flux

Measurement range:    -2000 to +2000 W/m²

Sensitivity (nominal):    60 x 10⁻⁶ V/(W/m²)

Sensing area:    8 x 10⁻⁴ m²

Guard width to thickness ratio:    5 m/m (as required by ISO 9869 D.3.1)

Sensor thermal resistance:    71 x 10⁻⁴ K/(W/m²)

Sensor thickness:    5.4 x 10⁻³ m

Uncertainty of calibration:    ± 3 % (k = 2)

Rated operating temperature range:    -30 to +70 °C

Cable diameter:    4 x 10⁻³ m

IP protection class:    IP67

Standard cable length:    5 m

Options:    longer cable length (10, 15, 20, 30, 40 m)

Areas of Application:
- Building physics / insulation, thermal comfort and energy budget measurement
- Geotechnics / soil thermal route analysis
- Material characterisation / thermal conductivity measurement
- Meteorology / surface energy flux measurement
- Scientific research / heat and heat transfer measurement

Suggested use:
 -   Building heat flux
 -   U-value and R-value measurements
 -   Soil heat flux

- Longer cable, in multiples of 5 m, cable lengths above 20 m in multiples of 10 m
